Help Center2016 Hot Sale Beddings Quilting Machine(CSDS110"-2)
Related Products

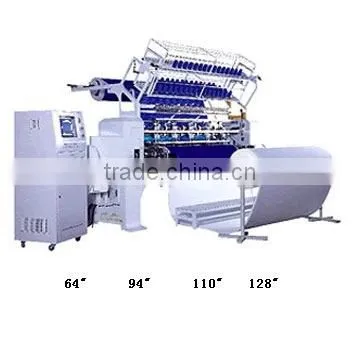

CS110 Multi Needle Industrial Manufacturing Quilting Machine
1. D: Digital control; B: Big shuttle (HQ10 Japaneseshuttle )
2.110": 110inch width (2794mm)
3.2: Two needle row
4. Overall dimentions: 5200*1100*1600mm
5: Weight: 3500kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 6.2kw
9. Thickness: ≤ 30mm
10. Max. Pattern size: 6inch by 6inch
Applications:
Quilting machine is widely used for quilting high-quality Mattress panel, Quilt covers, household ornaments, Clothing, Handbag, Glove, Bedding, Comforters, Seat covers, Sleeping bag, etc.
Main features:
This quilting machine Adopting digital control program, speed can be changed digitally.
*Using Panasonic servo motor (optional), saddles and rollers driven by Panasonic servo devices.
*The revolution of the spindle controlled by Panasonic frequency conversion control devices.
* Large number of built-in quilting patterns for your choice, patterns can be changed in a few second.
*Easy and quick make new designs(360degree, and 180 degree, patterns are available. )
*Available features such as high rigidity machine body, perfect protecting equipment and steady going control system, high speed of running, low noise and precise quilting.
*Running state detecting and inditating in order to show how the machine works.
*Production management function, easy for checking the production cost.
*USB interface.
*Using pattern of software 20064
*CAD drawing method to ensure the precision of pattern and facilitate the operation.
*Tack and jump function included
*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
*Simulation display of quilting.
*Automatic needle raising, location brake system and CNC speed adjustment.
*Needle bar and pressing block take the double rocks device.
*All faults tips for servo motor system and transducer, which is eminilate problems.
*Particular pattern-editing program to ensure the precision of pattern and facilitate the operation.
Note: This digital control multi-needle quilting machine of non-standard specifications can also be manufactured by order of customers with special requirements.
How to choose a machine and related parts:
Machine Base: In order to reduce vibration, deformation and bold reinforcement, rollers have carried on special heat treatment.
Driving Parts:
Servo motor, Drivers and Transducer are Panasonic brand.
Raw Materials Feeding Part:
Because of adopting unique adjustable roller active-feeding system, tension and pressure can be adjusted ideally for different thickness of materials, which can ensure perfect quilting effect without skip stitch and it will not damage the fabric.
The needles and shuttles parts:
Needles parts: Chishing choose West Germany needles and. Choosing what kind of needles depends on the sewing material. For instance, as for processing fine elastic materials or thick leather materials, SCHMETZ can offer a wide range of special needles, including SCHMETZ SERV 7, KN, SF and FHS. Standard needles coming with Chishng machine are DUOTEC. And if you make special materials then you need purchase different needles according to your products.
Shuttles parts:
Chishing import HASHIMA shuttles. The quality of shuttles will directly affect the sewing quality and production efficiency. The poor quality shuttles will appear shrapnel lock is not tight, bounce off and thread-waste. Shuttle hot deformation will cause skip stitches after used for some time.
CHISHING brand quilting machines insist on imported shuttles, for instance, Japan and Swiss brand. Thus, CHISHING quilting machines have the advantages of Japan and Switzerland quilting machine.
Company profile & machine details:
