Help CenterCS110 Computerized Quilting Machine
Related Products

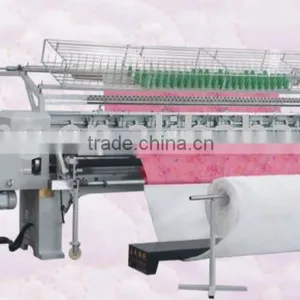

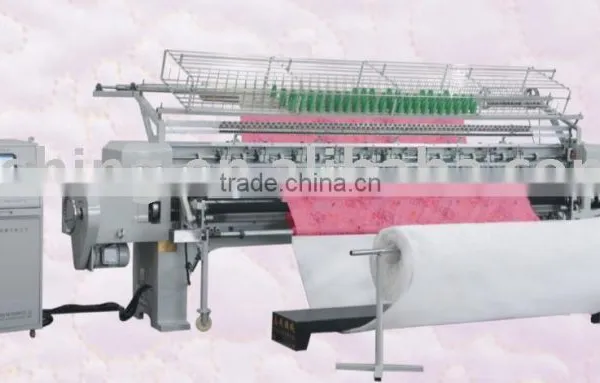

CS110 Multi Needle Industrial Manufacturing Quilting Sewing Machine
1. D: Digital control; B: Big shuttle (HQ10 Japaneseshuttle )
2.110": 110inch width (2794mm)
3.2: Two needle row
4. Overall dimentions: 5200*1100*1600mm
5: Weight: 3500kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 6.2kw
9. Thickness: ≤ 30mm
10. Max. Pattern size: 6inch by 6inch
Applications:
Quilting machine is widely used for quilting high-quality Mattress panel, Quilt covers, household ornaments, Clothing, Handbag, Glove, Bedding, Comforters, Seat covers, Sleeping bag, etc.
Main features:
This quilting machine Adopting digital control program, speed can be changed digitally.
*Using Panasonic servo motor (optional), saddles and rollers driven by Panasonic servo devices.
*The revolution of the spindle controlled by Panasonic frequency conversion control devices.
* Large number of built-in quilting patterns for your choice, patterns can be changed in a few second.
*Easy and quick make new designs(360degree, and 180 degree, patterns are available. )
*Available features such as high rigidity machine body, perfect protecting equipment and steady going control system, high speed of running, low noise and precise quilting.
*Running state detecting and inditating in order to show how the machine works.
*Production management function, easy for checking the production cost.
*USB interface.
*Using pattern of software 20064
*CAD drawing method to ensure the precision of pattern and facilitate the operation.
*Tack and jump function included
*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.
*Simulation display of quilting.
*Automatic needle raising, location brake system and CNC speed adjustment.
*Needle bar and pressing block take the double rocks device.
*All faults tips for servo motor system and transducer, which is eminilate problems.
*Particular pattern-editing program to ensure the precision of pattern and facilitate the operation.
Note: This digital control multi-needle quilting machine of non-standard specifications can also be manufactured by order of customers with special requirements.
How to choose a machine and related parts
Machine Base: In order to reduce vibration, deformation and bold reinforcement, rollers have carried on special heat treatment.
Driving Parts:
Servo motor, Drivers and Transducer are Panasonic brand.
Raw Materials Feeding Part:
Because of adopting unique adjustable roller active-feeding system, tension and pressure can be adjusted ideally for different thickness of materials, which can ensure perfect quilting effect without skip stitch and it will not damage the fabric.
The needles and shuttles parts:
Needles parts: Chishing choose West Germany needles and. Choosing what kind of needles depends on the sewing material. For instance, as for processing fine elastic materials or thick leather materials, SCHMETZ can offer a wide range of special needles, including SCHMETZ SERV 7, KN, SF and FHS. Standard needles coming with Chishng machine are DUOTEC. And if you make special materials then you need purchase different needles according to your products.
Shuttles parts:
Chishing import HASHIMA shuttles. The quality of shuttles will directly affect the sewing quality and production efficiency. The poor quality shuttles will appear shrapnel lock is not tight, bounce off and thread-waste. Shuttle hot deformation will cause skip stitches after used for some time.
CHISHING brand quilting machines insist on imported shuttles, for instance, Japan and Swiss brand. Thus, CHISHING quilting machines have the advantages of Japan and Switzerland quilting machine.
After-sale service
1) Installation & Commissioning: The seller can provide the installation, commissioning
and training service in buyer's factory, while the buyer needs to pay for VISA application,
air ticket, accommodation, and (if necessary) interpreting fee for seller's technician.
2) After one year, the buyer needs to pay USD200/day/person as service charge, as well
as the fee of VISA application, air ticket , accommodation, and (if necessary) interpreting
fee for seller's technician.
2. Warranty:For the machine above,the seller provides one year warranty starting from the
moment the seller dispatches the machines. For the detailed guarantee period of each
part, please refer to the operation manual.Wearing parts,consumption material and the
damage incurred by the buyer's incorrect operation are out of warranty range.
Sample pictures
About Us
Dongguan Chishing Machinery Co., Ltd. was established in 1989 and immediately secures a leading position in the mainland Chinese quilting industry as one of the first manufacturers to produce multi-needle quilting machines.
At present, we are a professional manufacturer and developer of multi-needle quilting machines of various specifications. Since our foundation, our work space has increased to over 12,000 square meters, with our production capacity having been quadrupled. Our products include mechanical and digital control multi-needle machines of both the shuttle and non-shuttle varieties. In order to satisfy the diverse requirements of our unique customers, our technicians continue to work hard in developing a new series of multifunctional quilting equipment.
Our products are sold worldwide and our sales currently account for 70% of the total Chinese quilting machine market. We maintain sales offices throughout China, as well as overseas offices in Canada, Pakistan, and Singapore. With an excellent reputation in the industry, outstanding after-sales service, and superior quality, we benefit from both trust and appreciation from our customers and fulfill our goal of "reputation first, service first, and quality first".
