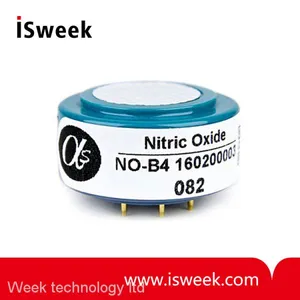

Help CenterNO-B4 Nitric Oxide Sensor (NO Sensor) 4-Electrode
Related Products
-
TGS2611 Methane Sensor CH4 Sensor Combustible Gas SensorUS$ 3 - 5MOQ: 1 Piece -
TGS2620 For The Detection of Solvent VaporsUS$ 1 - 1MOQ: 1 Piece
-
3SP_H2S_50 P 15x15 Hydrogen Sulfide (H2S) Sensor 50 Ppm Package 110-303US$ 10 - 30MOQ: 1 Piece
-
3SP_SO2_20 P 15X15 SO2 Sensor 20 Ppm P Package 110-601US$ 1 - 1MOQ: 1 Piece
-
3SP_CO_1000 P 15X15 CO Sensor 1000 Ppm Package 110-102US$ 20 - 30MOQ: 1 Piece

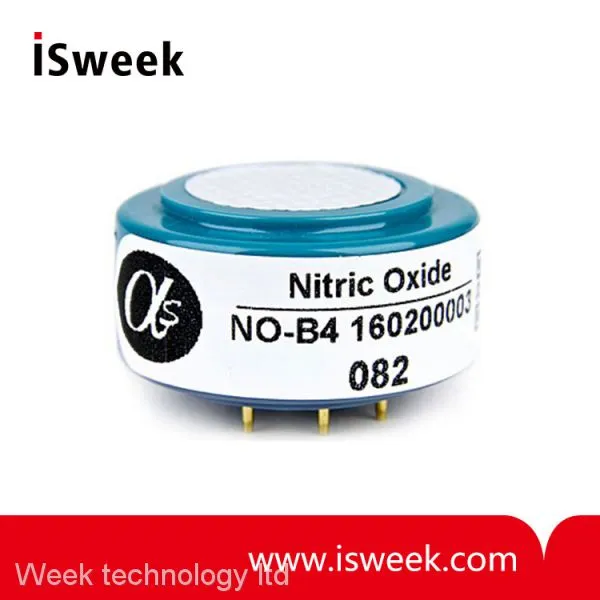

NO-B4 Nitric Oxide Sensor (NO Sensor) Description
Alphasense Nitric Oxide gas sensors operate using proven fuel cell technology.
Sensors are available in the following sizes:
A: 20mm diameter, the industry standard size for portable gas detectors
B: 32mm diameter package, the best choice for fixed site applications
D: miniature, with proven long-term performance. Sensors designed for the next generation of portable gas detectors.
The NO range provides OEMs with reliable sensors for use in a number of high volume applications. Strong signal levels combined with low zero current allows resolution to 200 parts per billion (ppb) whilst giving linear outputs to as high as 250ppm. The sensors are suitable for inclusion in fixed installation sensing heads, portable safety instruments, urban air monitoring and stack gas analysers.
Alphasense NO sensors provide a significant improvement in stability of response to transient relative humidity changes.
The NO sensors offer our electrolyte leak-free guarantee and reliable long-term detection performance. The leakproof housing is moulded with a colour coded top for ease of identification.
| NO-B4 Nitric Oxide Sensor (NO Sensor) PERFORMANCE | ||
| Sensitivity | nA/ppm at 2ppm NO | 500 to 850 |
| Response time | t90 (s) from zero to 2ppm NO | |
| Zero current | nA in zero air at 20℃ | 30 to 140 |
| Noise* | ±2 standard deviations (ppb equivalent) | 15 |
| Range | ppm NO limit of performance warranty | 20 |
| Linearity | ppb error at full scale, linear at zero and 5ppm NO | |
| Overgas limit | maximum ppm for stable response to gas pulse | 50 |
| * Tested with Alphasense ISB low noise circuit | ||
| NO-B4 Nitric Oxide Sensor (NO Sensor) LIFETIME | ||
| Zero drift | ppb equivalent change/year in lab air | 0 to 50 |
| Sensitivity drift | % change/year in lab air, monthly test | 0 to -20 |
| Operating life | months until 50% original signal (24 month warranted) | > 24 |
| Nitric Oxide Sensor (NO Sensor) NO-B4 ENVIRONMENTAL | ||
| Sensitivity @ -20℃ | (% output @ -20℃/output @ 20℃) @ 2ppm NO | 60 to 90 |
| Sensitivity @ 40℃ | (% output @ 50℃/output @ 20℃) @ 2ppm NO | 97 to 110 |
| Zero @ -20℃ | nA | 0 to 30 |
| Zero @ 40℃ | nA | 100 to 200 |
| NO-B4 Nitric Oxide Sensor (NO Sensor) CROSS SENSITIVITY | ||
| H2S sensitivity | % measured gas @ 5ppm H2S (after 3 minutes) | |
| NO2 sensitivity | % measured gas @ 5ppm NO2 (after 3 minutes) | |
| Cl2 sensitivity | % measured gas @ 5ppm Cl2 | |
| SO2 sensitivity | % measured gas @ 5ppm SO2 | |
| H2 sensitivity | % measured gas @ 100ppm H2 | |
| CO sensitivity | % measured gas @ 5ppm CO | |
| NH3 sensitivity | % measured gas @ 5ppm NH3 | |
| CO2 sensitivity | % measured gas @ 5% Vol CO2 | |
| O3 sensitivity | % measured gas @ 100ppb O3 | |
| Halothane sensitivity | @ 100ppm Halothane | |
| NO-B4 Nitric Oxide Sensor (NO Sensor) KEY SPECIFICATIONS | ||
| Bias voltage | mV(working electrode potential is above reference electrode) | 200 |
| Temperature range | ℃ | -30 to 40 |
| Pressure range | kPa | 80 to 120 |
| Humidity range | % rh continuous | 15 to 85 |
| Storage period | months @ 3 to 20℃ (stored in sealed pot) | 6 |
| Load resistor | Ω (ISB circuit is recommended) | 33 to 100 |
| Weight | g | |
