Home > Industrial Equipment & Components > Cutter & Tongs > Turning Tool > CK5126 CNC Single Column Vertical Lathe

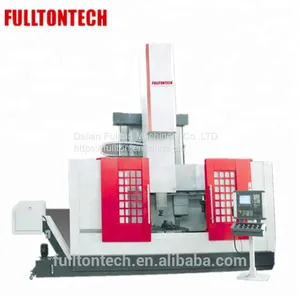

CK5126 CNC Single Column Vertical Lathe

Name: CK5126 CNC Single Column Vertical Lathe
Brand: FULLTONTECH
SKU: 151575876

CK5126 CNC Single Column Vertical Lathe thumbnail-1

CK5126 CNC Single Column Vertical Lathe photo-1

US$ 500000 - 1000000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

FULLTONTECH

Place of Origin:

China

Model Number:

CK5126

Contact Supplier Request Quote Chat Now

Dalian Fullton Machinery Co.,LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

DALIAN

Delivery Detail:

150 days

Product Details
Company Profile
Contact Us

Brand Name FULLTONTECH

Place of Origin China

Model Number CK5126

CNC Single Column Vertical Turret Lathe

CK5126

1. Features

CK5126 is a super rigid machine with big machining capacities, stable & rigid structure, heavy job load and high machining efficiency.

The machine is equipped with one rams and one 4-station NC electric driven turret. Electric encoder together with electromagnetic valves is integrated into the gear box. Gears are made of 40 Cr steel and precision ground for high precision and low machine noise.

The machine is designed and built to meet modern machining requirements of high speed cutting tools and carbide cutters on workpieces of ferrous, non-ferrous, composite and other materials.

Functions: 1. I.D. turning, O.D. turning, end-facing,

2. cone turning,

3. grooving, parting / cut off,

4. drilling, boring, reaming,

5. curve cutting,

6. threading, etc.

2. Machine Body

The main body of the machine is made of high rigid resin castings with thermal stress relief aging treatment. Small cast iron bodies are hardened with high temperature. All the steel parts are thermal refined.

3. Machine specifications

Specifications	CK5120
Max. cutting diameter	2000 mm
Table diameter	1800 mm
Max. workpiece height	1400 mm
Max. workpiece weight	8000 kgs
Max. cutting force of tool head	40,000 N.m
Toolpost	NC type, electric driven, automatic indexing, 4 stations
Speed range of table	2-120 rpm
No. of speed steps of table	4 steps, infinite variable speeds within each step
Horizontal travel of tool head	1115 mm
Vertical travel of tool head	1000 mm
Rapid traverse speed of tool head	3000 mm/min
Elevation speed of cross rail	440 mm/min
Power of main motor	AC 45 kW
CNC system	Siemens 802D s.l.
Machine weight	16 tons
