FECS40-1000 for the Detection of Carbon Monoxide

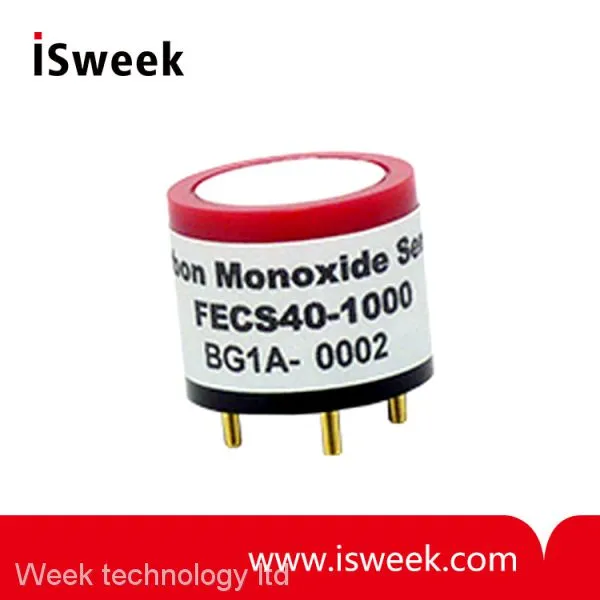

Figaro’s Carbon Monoxide Sensor FECS40-1000 is a unique electrochemical-type carbon monoxide sensor. Its most notable feature is its unique leak-proof structure, making it ideal for CO monitors and detectors in various fields.
FECS40-1000 Carbon Monoxide (CO) Sensor Features:
* High sensitivity/selectivity to CO
* Quick response to CO
* Linear output
* Long life
* Stable baseline
* Unique leak-proof structure
FECS40-1000 Carbon Monoxide (CO) Sensor Applications:
* Portable and fixed installation CO monitors
* CO detectors
* Ventilation control for indoor parking garages
FECS40-1000 Carbon Monoxide (CO) Sensor Specifications:
Detection Gas |
Carbon Monoxide |
Detection Range |
0 ~ 1000 ppm |
Maximum Overload |
1500 ppm |
Output Signal |
70±15 nA/ppm (*) |
Repeatability |
±2% (*) |
Resolution |
1 ppm (*) |
Typical Baseline Range (Pure air) |
-2 ppm to +3 ppm (*) |
Typical Response Time (t 90 ) |
|
Baseline Shift (-20 ~ 50˚C) |
|
Long Term Output Drift |
|
Expected Life Time |
3 years (*) |
Operating Temperature |
-20 ~ 50˚C |
Operating Humidity |
15 ~ 90% RH |
Operating Pressure Range |
1013 hPa±10% |
Recommended Load Resistor |
10Ω |
Bias Voltage |
Not required |
Position Sensitivity |
None |
Recommended Storage Temp. |
0 ~ 20˚C |
Storage Life |
6 months |
Cap Color |
Red |
Weight |
4.5g (approx.) |
(*) Performance data conditions: 20 ˚C , 50%RH and 1013 hPa.
