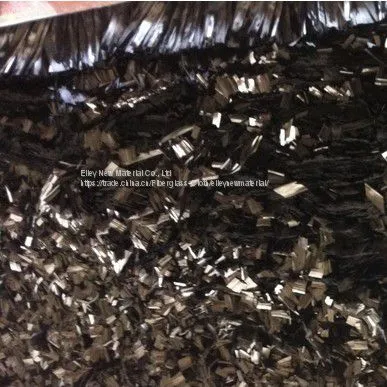

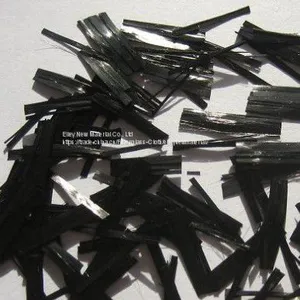

Carbon fiber chopped strand/ chopping carbon/ carbon fiber
It is 1-80mm, cutting from carbon fiber yarn. It is base material of function material modified that is used for carbon fiber FRP, friction material and other function material FRP.
Feature
PAN chop, high performance, suitable for aerospace industry;
no glue, good compatibility and dispersibility
Low Ohms, good electrical conductivity and electromagnetic wave screening, high thermal conductivity
It could increase product strength and modulus
low coefficient thermal expansion, high stability
high fatigue resistance, good abrasive resistance and lubricity
Application area
Space navigation and national defense: man-made satellite, airship, rocket, missile shell
Reinforcement modified plastic: PA,PP,PC,PF,PTFE,PI,EP etc.
Construction: concrete reinforce, frp bar, reinforce product, electrical conduction painting, anti-static terrace
Electric heating: electrical conduction paper, electric hot plate, electric conduction mat, needle mat, electric conduction blanket
Communications and transportation: racing bicycle, brake pad, live shaft, crossbeam, empennage, bonnet, leaf spring
Shield material: protective shield, smog, curtain
Industry: base installation, recovery gas oil, pressure vessel, composite stick, voyage construction member,
Heat insulation or preservation: reinforce body, brick, ceramics
Sport leisure: fishing rod, brassie, shaftment, bicycle stand, quant, sled
New energy: wind power, flywheel, electrode of fuel battery
Medical treatment: artificial ligament
Parameter
Carbon content: 96% |
Tensile strength: 3800MPa |
Tensile modulus: 228GPa |
density: 1.75g/cm3 |
Ohms ratio: 1.0-1.6Ωcm |
diameter: 7μm |
Section shape: round |
Bulk density: 0.4g/cm3 |
Chop length: 1mm-80mm |
