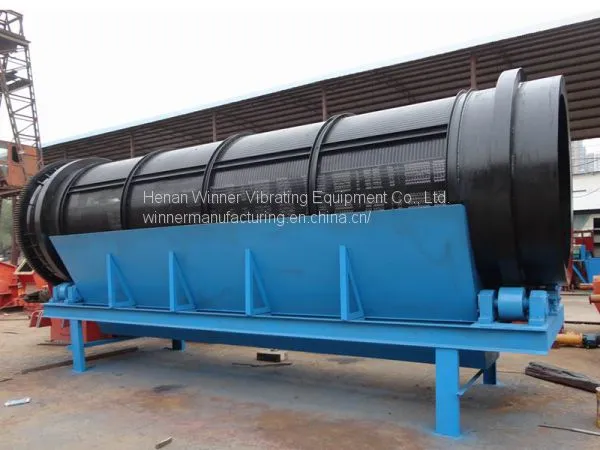

Drum sieve for mining and quarry
Product overview of Drum sieve:
1. Drum sieve is our company for power plants, coking plants, metallurgy, chemicals, mining, building materials and other industries and the development of vibration screening machine.
2. Which solves the problem of viscous plugging of the viscous material during the screening process, and improves the yield and reliability of the screening system.
3. The largest output of 100 mm, the middle 10-50 mm, the smallest up to 3 mm below, the product by the majority of users praise.
Product Applications of Drum sieve:
1. Widely used in electric power, mining, metallurgy, building materials, chemical and other production industries.
2. Commonly used in refractory materials, coal, fertilizer, gravel block classification, as well as coal, coke, lime, placer gold and other wet viscous materials screening.
Product features of Drum sieve :
1. Adopting the principle of rolling conveying, the friction coefficient is small, the wear is light and the screen hole is not easy to be blocked.
2. Smooth operation, low noise.
3. Accessories used split design, simple structure, quick and easy replacement of maintenance
4. The use of effective sealed structure, not dust, no pollution
5. Safe and reliable operation, high transmission efficiency, with a small power, low energy consumption.
6. Can be customized according to customer requirements.
Technical parameter table of Drum sieve：
Model |
Output（t/h) |
Power（kw） |
Diameter of screen cylinder（mm） |
Feeding granularity（mm） |
Length of screen cylinder（mm） |
Dimensions |
Theoretical weight （kg） |
GTS1015 |
50 |
3 |
1000 |
1500 |
≤300 |
2600*1400*1700 |
2200 |
GTS1020 |
100 |
4 |
1000 |
2000 |
3390*1400*2140 |
2800 |
|
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146*1600*2680 |
4200 |
|
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460*1900*2820 |
5100 |
|
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960*1900*3080 |
6000 |
GTS1848 |
450 |
15 |
1800 |
4800 |
6500*2350*4000 |
7500 |
|
GTS2055 |
600 |
22 |
2000 |
5500 |
7500*2550*4800 |
9600 |
|
GTS2265 |
800 |
30 |
2200 |
6500 |
8500*2750*5000 |
12800 |
