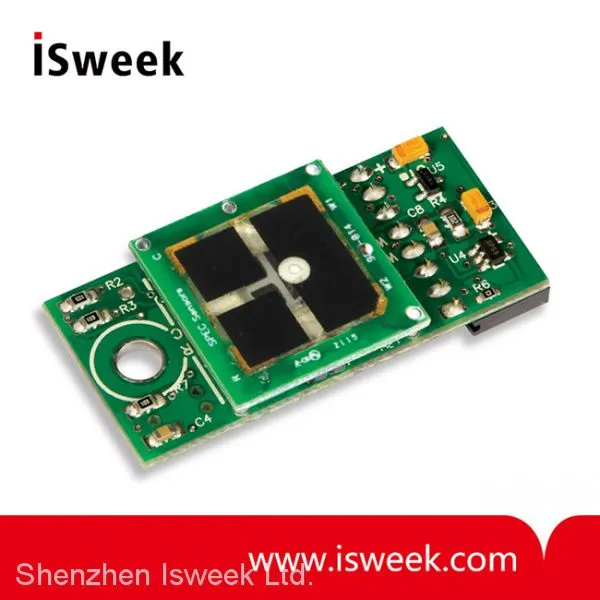

DGS-O3 968-042 Digital O3 Sensor Module Description
NEW!! Using SPEC's 110-406 Ozone sensor with improved stability and low ppb performance!
Easily add Ozone sensing to your IoT application with our O3 digital gas sensor module that provides a calibrated and temperature compensated output.
0 to 5 ppm Ozone sensor with digital output - NEW improved performance Ozone sensor!
DGS-O3 968-042 Ozone Sensor O3 Sensor Module Benefits
• Low Power - 100μW in standby mode
• Calibrated & Temp. Compensated Output
• Fast Response
• Simple Digital UART Interface
• Integrated T & RH Sensors
• Robust 10-year Estimated Lifetime
• ROHS Compliant
• Small form Factor
• UART to USB adapter provided
• Lightweight (
DGS-O3 968-042 Ozone Sensor O3 Sensor Module Applications
• Air Purification Control
• Air Quality Monitoring
• Industrial Safety Sensing
DGS-O3 968-042 Ozone Sensor O3 Sensor Module Measurement Performance Characteristics
Based on Standard Conditions 25°C, 50%RH and 1 atm
| Measurement Range |
0 to 5 ppm |
| Resolution |
20 ppb |
| Measurement Accuracy |
15% of reading |
| Measurement Repeatability |
|
| T90 Response Time (100 ppm step) |
|
| Power Consumption |
100 μW in standby mode 14 mW in measurement mode |
| Expected Operating Life |
> 5 years (10 years @ 25± 10°C; 60 ± 30%RH) |
| Operating Temperature Range |
-20 to 40°C (-30 to 55°C intermittent) |
| Operating Humidity Range |
15 to 95% (0 to 100% non-condensing intermittent) |
| Mechanical Dimensions |
1.75 x 0.82 x 0.35 in. (44.5 x 20.8 x 8.9 mm) |
| Weight |
Send Inquiry to This Supplier
