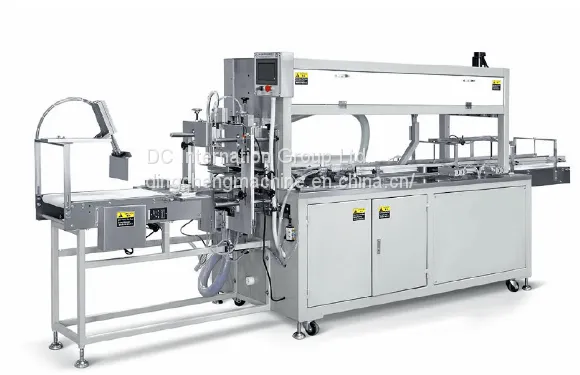

Toilet Paper Multiple Roll Packing Machine

Toilet Paper Multiple Roll Packing Machine thumbnail-1
Toilet Paper Multiple Roll Packing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DC
Place of Origin:
China
Model Number:
DC000128
Contact Supplier Request Quote Chat Now
DC Internation Group Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen port
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DC
Place of Origin China
Model Number DC000128
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Dimension(L*W*H) L4100*W1000*H1500mm
Voltage 220V
Power 2KW
Application Other
Condition New
Automatic Grade Automatic
Driven Type Electric
Packaging Material Paper
Packaging Type Bags

I.                   Main Feature

1.      This packing machine is a combination for bagging and sealing; conveyor belt-type automatic transmission, automatic counting and sorting rolls, bagging, sealing into a whole packaging machine.

2.      Adopt PLC computer programming control, servo motor push material into the bag.

3.      The packing seal is beautiful and tidy, semi-automatic operation.



II.                Main Parameter

4.      Packaging Speed: 6-12 pack/min (depending on the staff bagging speed).

5.      Packing object diameter: single roll diameter 100-120mm.

6.      Packing object height: single roll height 100-130mm.

7.      Power voltage: 220V 50HZ

8.      Gas: 0.6mpa  0.3cubic meter /min

9.      Power: 2KW

10.  Dimension: L4100*W1000*H1500mm



III.             Model and types:

1.      DC-TP-PM7 Two heads 2 lines*5 rolls*2 layers

2.      DC-TP-PM8 Single head 3 lines*6 rolls*2 layers

3.      DC-TP-PM9 Single head 2 line*5 rolls*3 layers

4.      DC-TP-PM10 Single head 4 line*6 rolls*2 layers




Product Tags: toilet tissue packing machine , multiple roll packing machine
