Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > RG6 Coaxial Cable/Computer Cable/Data Cable/Communication Cable/Audio Cable/Connector

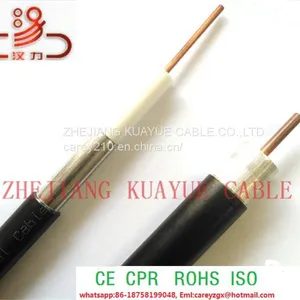

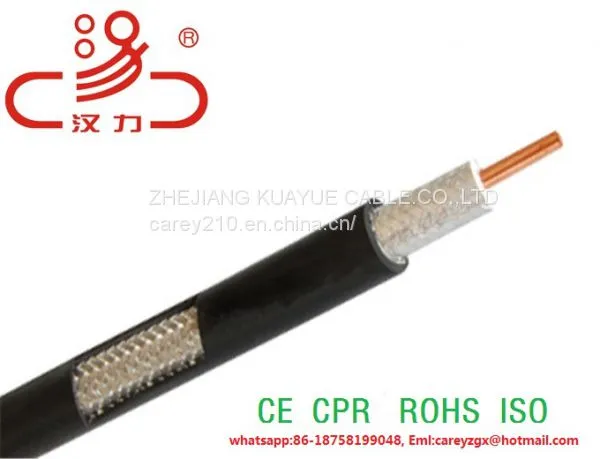

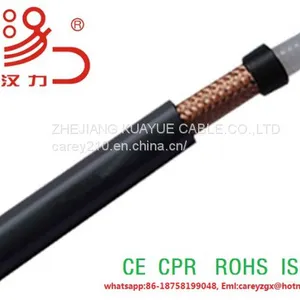

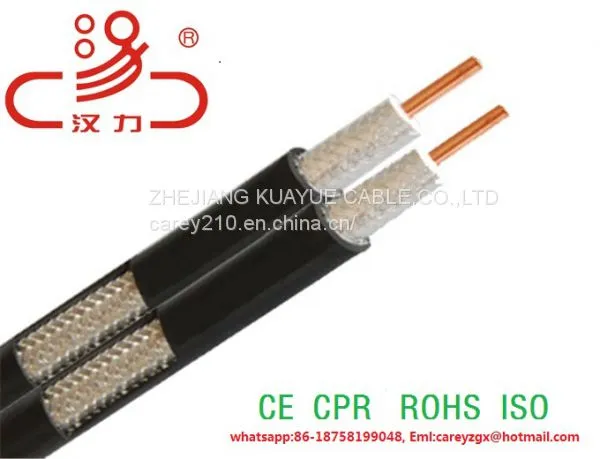

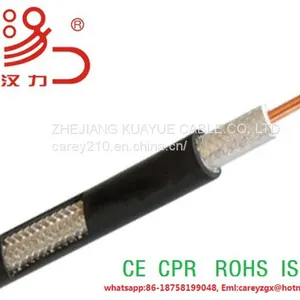

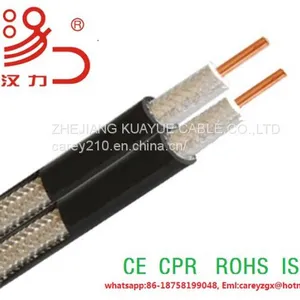

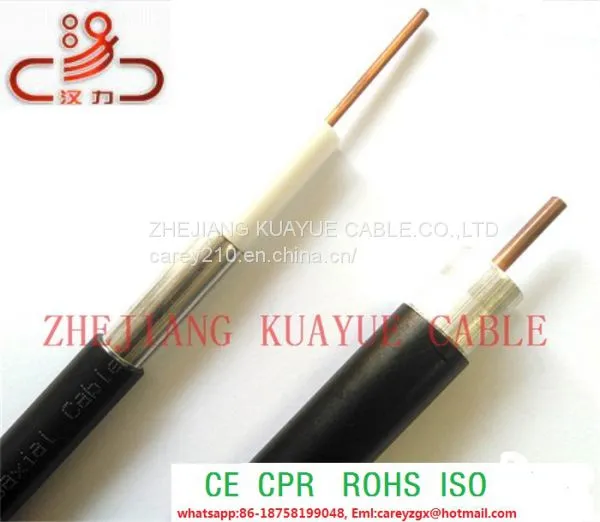

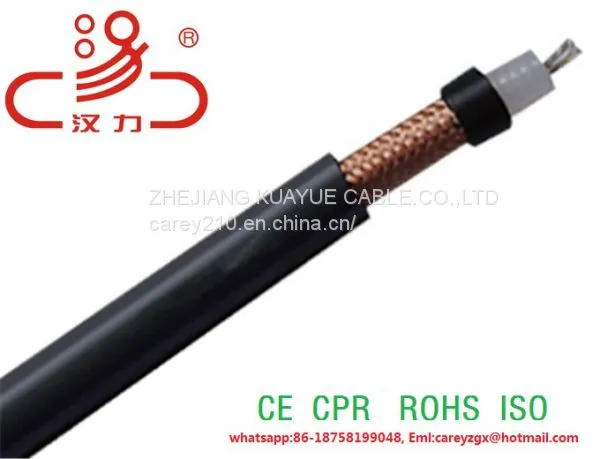

RG6 Coaxial Cable/Computer Cable/Data Cable/Communication Cable/Audio Cable/Connector
US$ 5.5 - 10.5
MOQ: 200 Rolls
Key Specifications
Get Latest Price
Brand Name:
RG6
Place of Origin:
China
Model Number:
COAXIAL CABLE
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
15 days
Related Products
-
RG59 Coaxial Cable/Communication Cablee/Connector+0.5mm,0.75mm Power CableUS$ 5.5 - 10.5MOQ: 200 Rolls -
RG59 Coaxial Cable With DC Power CableUS$ 5.5 - 10.5MOQ: 200 Rolls
-
High Quality RG59 Coaxial Cable With DC Power CableUS$ 5.5 - 10.5MOQ: 200 Rolls
-
RG59 RG6 RG11 Coaxial CableUS$ 5.5 - 10.5MOQ: 200 Rolls
-
RG59 RG6 RG11 Coaxial CableUS$ 5.5 - 10.5MOQ: 200 Rolls
Brand Name
RG6
Place of Origin
China
Model Number
COAXIAL CABLE
Type
Insulated
Application
Other, Communication
Insulation Material
PE
Conductor Material
Copper Clad Steel
Conductor Type
Solid
rg6 coaxial cable
Construction
| Inner conductor | Plain copper | Φ1.0±0.025mm |
| Dielectric | F. PE | Φ4.6±0.10mm |
| Outer conductor | CCA | 80x0.12mm |
| Shield coverage | 65% | |
| Sheath | PVC o rLSZH | Φ7.00±0.10mm |
Electrical & Mechanical Characteristics
| Impedance | 53±3 Ohm0 | |
| Nominal capacitance | 94pF/m | |
| Velocity of propagation | 66% | |
| Insulation resistance | >2000 Mohm.Km | |
| Inner conductor resistance | 35.0 Ohm/Km | |
| Outer conductorresistance | 16.5Ohm/Km | |
| Test/Operatig Voltage(max) | 5KV/2KV | |
| Operating temperaturerange | -30°C-+70°C | |
| Copper Weight | 18.7Kg/Km | |
| Cable weight(approx.) | 39.9Kg/Km | |
| Screening effectiveness | 100-900MHz | >55dB |
Attenuation
| Frequency(MHz) | Attenuation(dB/100m) | Attenuation(dB/100ft) |
| 50 | 9.1 | 2.77 |
| 100 | 13.1 | 3.99 |
| 200 | 19.4 | 5.91 |
| 400 | 28.4 | 8.66 |
| 500 | 32.2 | 9.82 |
| 600 | 35.7 | 10.88 |
| 860 | 44.8 | 13.66 |
| 1000 | 49.0 | 14.94 |
Return Loss
| 30-300MHz | >26dB |
| 300-600MHz | >25dB |
| 600-900MHz | >24dB |
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
Contact:
Name: Carey zhu Tel:+8657163808897 Mob:13958125576/18758199048
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2012
Factory Size
10,000-30,000 square meters
Annual Export Value
US$50 Million - US$100 Million
