Introduction:

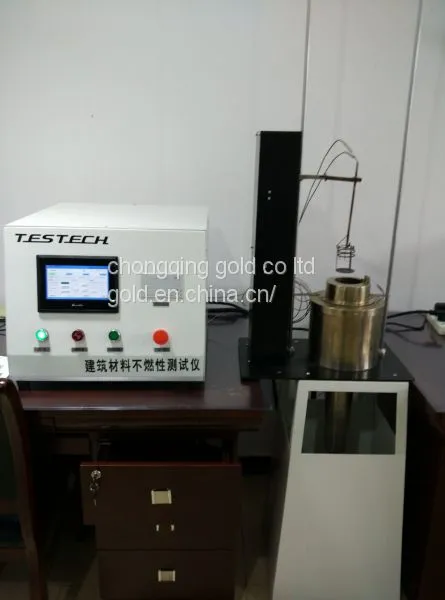

Non-Combustibility Tester measures incombustibility and combustibility of uniform building material and non-uniform building material of actual element
International standards:
1. GBT5464
2. ISO1182
3. ASTM E136
4. KS F ISO 1182
Features:
• Single Zone Furnace operable at up to 900 ºC with the NIKROTHAL Ribbon Heater
• 750±5ºC temperature auto control with TPR
• Furnace facilitating maintenance and replacement
• Up/down automatic moving system for correct positioning of test sample and user's convenience
• Mirror to observe the ignition quality of test sample
• RS 232C communication and DAQ Board-adopted interface
• Auto testing by DAQ Board and PC
• Alarm temperature-based overcurrent shut-off system for user's safety
• Software (Non-Comb 2005) to print out reports based on exact data result and each standard
Specification:
| Size | 400(w) × 400(D) × 1,270(H) |
| Power | 220 V AC, 60 Hz, 10 A |
| Weight | 40KG |
| control unit | 530(w) × 270(D) × 280(H) |
| Manual | supplied |
| Utilities | Personal Computer and PC Printer |
