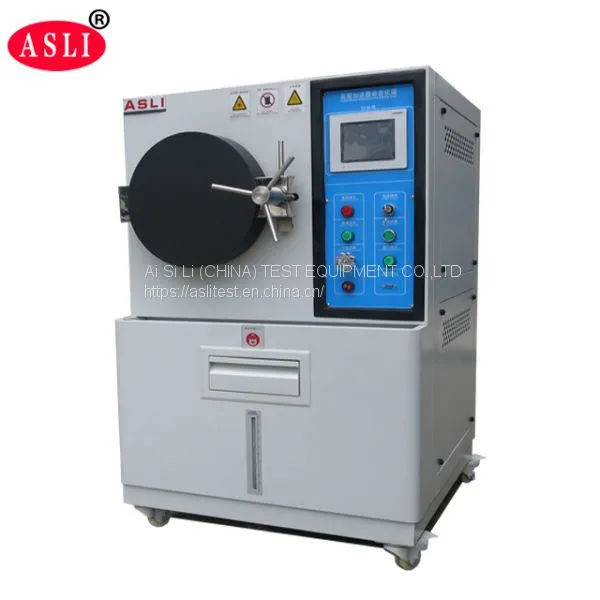

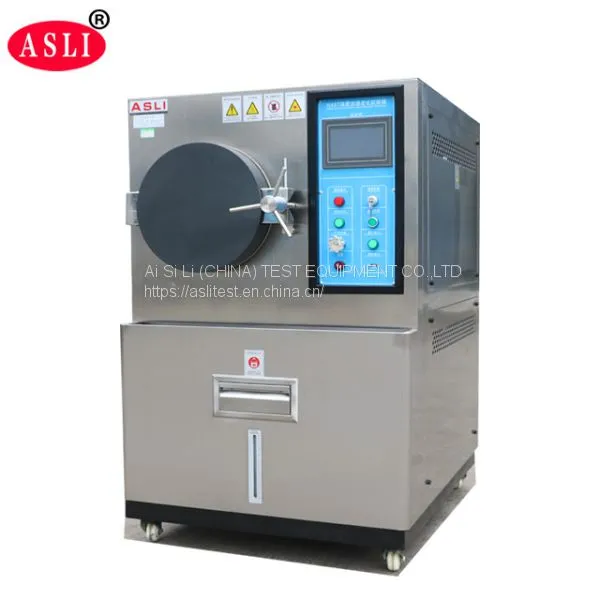

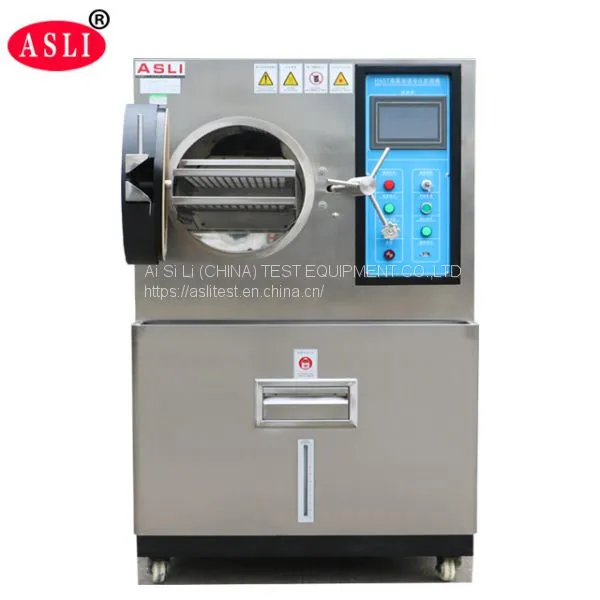

Pressure Accelerated Aging Test Chamber HAST
Application:
HAST accelerated aging chamber is widely applied to the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
HAST accelerated aging chamber technical parameters:
| Model | HAST - 25 | HAST - 35 | HAST - 45 | HAST - 55 | HAST - 65 | ||||
| Internal Dimension ΦxD (mm) | 300x250 | 350x450 | 450x550 | 550x650 | 650x750 | ||||
| External Dimension ΦxD (mm) | 850x1300x900 | 900x1350x900 | 1000x1480x1000 | 1150x1650x1200 | 1300x1800x1350 | ||||
| Steam Temperature Range | Steam Temperature Range: 100℃~135℃, (143℃ is optional) | ||||||||
| Relative Pressure/ Absolute Pressure | Relative pressure: display values indicated on the pressure gauge Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner box) |
||||||||
| Comparison Table of Temperature, Humidity , Pressure | |
||||||||
| Steam Humidity | 70~100％R.H. steam humidity adjustable | ||||||||
| Steam Pressure(Absolute Pressure) | 101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) | ||||||||
| Recursive Device | Steam in forced-circulation | ||||||||
| Safety Protective Device | Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) | ||||||||
| Accessories | Two layers stainless steel plate | ||||||||
| Equipment Capacity(L) | 17 | 43 | 87 | 155 | 250 | ||||
| Power | AC 220V(±10%), 1∮ 3 Lines ,50/60HZ; AC 380 V(±10%) ,3∮ 5 Lines,50/60HZ | ||||||||
Certificate of Test Chamber:
China official 3rd party calibration report
CE certiification
FAQ:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
3. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
4.What's your main products?
Environmental chambers, temperature (humidity) chamber, ,ESS chamber, Walk in stability chamber,Vacuum oven,PCT /Hast chamber (Highly accelerated stress test chamber)
Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us !
