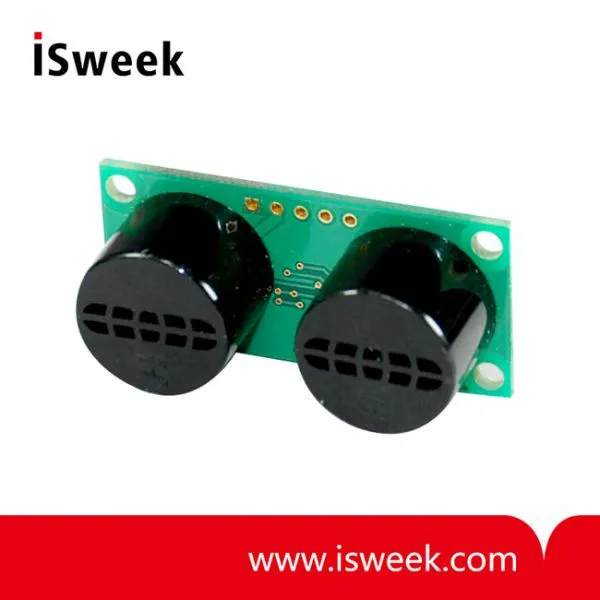

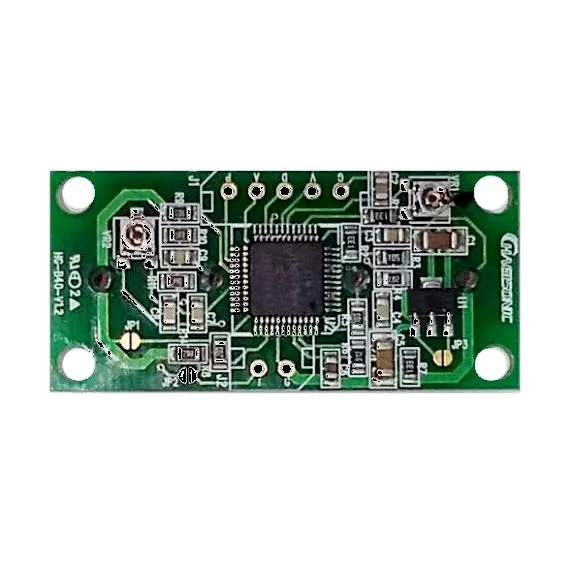

HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Hagisonic
Place of Origin:
South Korea
Model Number:
HG-B40A/HG-B40C
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
MB1043 HRLV-MaxSonar-EZ4 High Performance Ultrasonic RangefinderNegotiableMOQ: 1 Piece -
HG-P40WP Ultrasonic Proximity Sensor ModuleNegotiableMOQ: 1 Piece
-
T/R55.5-15.5E279Z-L19-01 Piezo Ultrasonic SensorUS$ 0.001 - 0.01MOQ: 1 Piece
-
UM0090 Ultrasonic RangefinderUS$ 0.001 - 0.01MOQ: 1 Piece
-
T/R40-14C279Z-L12-01 Piezo Ultrasonic SensorUS$ 0.001 - 0.01MOQ: 1 Piece
Brand Name
Hagisonic
Place of Origin
South Korea
Model Number
HG-B40A/HG-B40C
Theory
Ultrasonic Sensor
HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module Features
• Low-power, high-sensitivity module.
• Choose from a wide variety of input/output Mode.
• Auto sensitivity control function as a distance proportional to the distance error captain.
• The same standards as existing foreign products and mutually replaceable.
HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module Specification
| Frequency (KHz) |
40±2 |
|
| Transmit Mode |
Free Run |
No Connection |
| External Trigger |
TTL Pulse (100~700 ㎲) |
|
| Repetition Rate (10~30 time / sec) | ||
| Receiver Output Signal |
Analog |
±2 V max at 2.5 V Base Line |
| Real Time Pulse |
4~5 V TTL, All the objects detected |
|
| Distance Pulse |
4~5 V TTL Only the nearest Object |
|
| Input DC & Detecting Range (at in front angle flat plate) |
Low Voltage Type (5 V dc) |
0~3 m (Conventional, HG-B40C) |
| High Voltage Type (12 V dc) |
0~6 m (Conventional, HG-B40C) 0~3 m (Anistropic, HG-B40A) |
|
