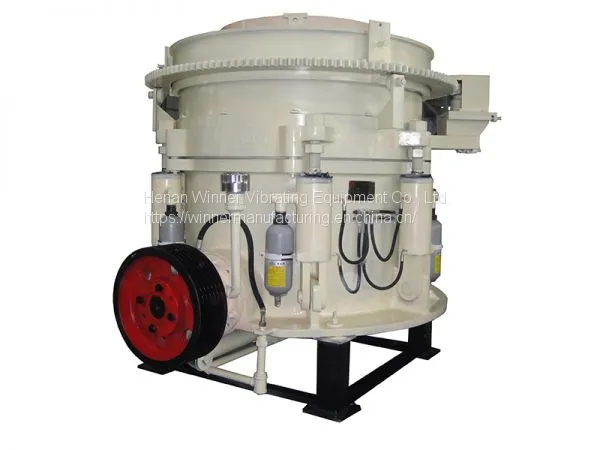

Hydraulic cone crusher for stone crushing
Introduction Overview:
HPC hydraulic cone crusher can be widely used in mines, cement plants, gravel industry.It is a high-energy cone crusher which introduce world advanced level of the latest technology of Germany. Used for medium and fine crushing pressures at 350 MPa for a variety of mine rocks,such as iron ore, non-ferrous metal ore, granite and so on.The crusher has the advantages of simple structure, convenient operation, maintenance, reliable performance, high efficiency etc.
Application:
Hydraulic cone crusher is widely used in mines, cement plants, gravel industry.
Advantages:
1.With large crushing force, high production efficiency, high yield.
2.Wearing parts less consumption, reliable operation, low operating costs.
3.Laminated broken, finished grain shape are excellent.
4.Hydraulic protection and hydraulic clear cavity, high degree of automation, reduce downtime.
5.Thin oil lubrication, reliable and advanced, improve service life.
6.A variety of broken cavity type, flexible application, strong adaptability.
7.Easy maintenance, easy operation and use.
working principle:
1, the configuration of insurance fuel tanks, locking cylinders and hydraulic putter cylinder three hydraulic insurance institutions, not only from the insurance role, but also a realization of the machine parts without disassembling the case to deal with failure.
2, can automatically adjust the discharge size, easy operation, reliability and strong.
3, the crushing chamber using intergranular lamination principle for special design, with the corresponding speed, significantly improve the crushing ratio and yield, increase the content of cube products into the material.
4, in the case of an instant stop, the machine can be hydraulic from the top, automatic nesting, greatly reducing the old spring cone crusher to be shut down for artificial discharge of the trouble, easy maintenance, lower costs.
5, hydraulic adjustment, thin oil lubrication and effective way to seal the labyrinth, from the fundamental to eliminate the old spring cone crusher oil and water leakage and other common faults.
6, broken wall and so as the use of high-Meng steel production, coupled with the change in the crushing cavity and laminated when the protection of the material layer, so that the machine greatly reduced wear. The general service life than the old spring cone crusher increased by 35% -82%.
Technical parameter table:
Model |
Cavity |
Feeding size |
Discharging hole of shutting edge |
Capacity |
Power |
Weight |
mm |
mm |
t/h |
kw |
t |
||
HPC-160 |
C |
150 |
13 |
120-240 |
160 |
13 |
F |
76 |
6 |
55-180 |
|||
HPC-220 |
C |
225 |
13 |
150-430 |
220 |
18 |
F |
86 |
6 |
90-260 |
|||
HPC-315 |
C |
290 |
13 |
190-610 |
315 |
26 |
F |
100 |
6 |
108-320 |
|||
HPC-400 |
C |
320 |
13 |
230-700 |
400 |
33 |
