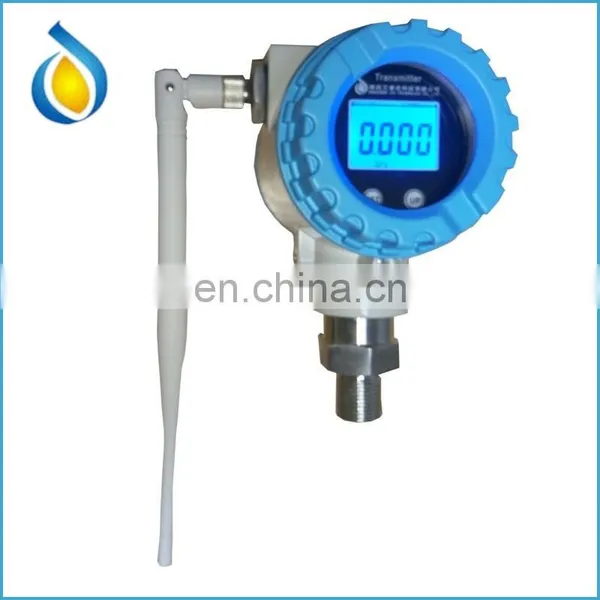

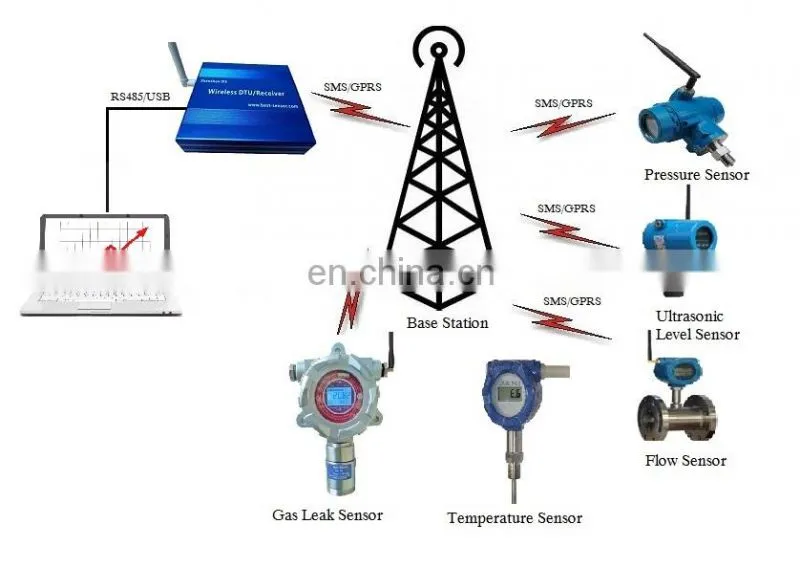

IPD55G pressure transmitter, using the GPRS+SMS wireless communication, solved the wireless distance restriction problem. It can acquire anywhere data in the world into the monitor center. It Supports Dynamic Domain name or Static IP address connection; It Supports SMS, GPRS UDP and TCP protocols; It can realize the 6000 units to be one wireless net communication.
The Pressure sensor uses silicon diaphragm sensor or capacitance sensor, with stainless steel housing, using professional IC circuit over a
wide temperature rangeof zero and full scale performance compensation. So it can detect a large number of monitoring points in the wide region real-time data of the network systems, such as the liquid tank testing, storage tanks and oil and water pressure monitor, other industrial field automation control.
1) You can choose one of GPRS and SMS or both of the GPRS and SMS
2) Supports Dynamic Domain name or Static IP address connection
3) Supports SMS, GPRS UDP and TCP protocols
4) No distance restriction
5) Can be in the chemical industry, metallurgy industry, oil and electricity automatic field
Power Supply |
24VDC |
pressure medium |
gas or liquid compatible to wetted stainless steel |
pressure ranges |
-1...0~0.01bar...1000bar |
pressure type |
gauge(G),absolute(A),sealed gauge(S) |
accuracy |
0.25%FS , 0.5%FS |
long term stability |
<0.1%FS/year |
supply voltage |
2V DC |
Relay output(2 relays) |
220V/3A |
indicator |
4 digits LCD display |
compensation temperature range |
-20~+85°c |
working temperature range |
-40~+125°c |
temperature coefficient of zero |
0.2%FS/10°c |
temperature coefficient of span |
0.2%FS/10°c |
insulation resistance |
100MΩ@ 50VDC |
electrical connection |
M20×1.5 female |
material of wetted part |
1Cr18Ni9Ti |
material of membrane |
316L |
material of housing |
cast aluminium |
process connection |
G1/2 or others |
overload pressure |
150%FS |
Small Size Pressure Size
GPRS,ZigBee,WiFi,433MHZ wireless Flow Sensor
GPRS,ZigBee,WiFi,433MHZ wireless Pressure Sensor
GPRS,ZigBee,WiFi,433MHZ wireless Temperature Sensor
GPRS,ZigBee,WiFi,433MHZ wireless Ultrasonic Level Sensor
