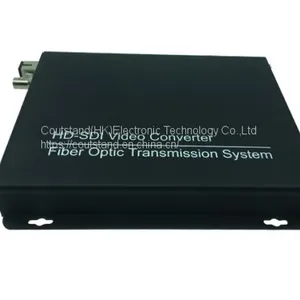

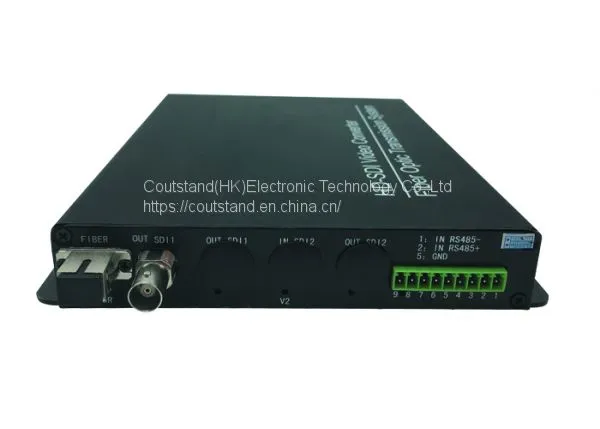

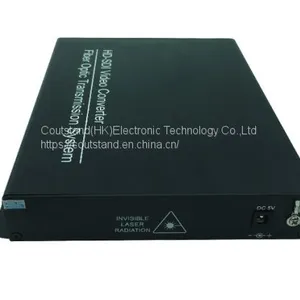

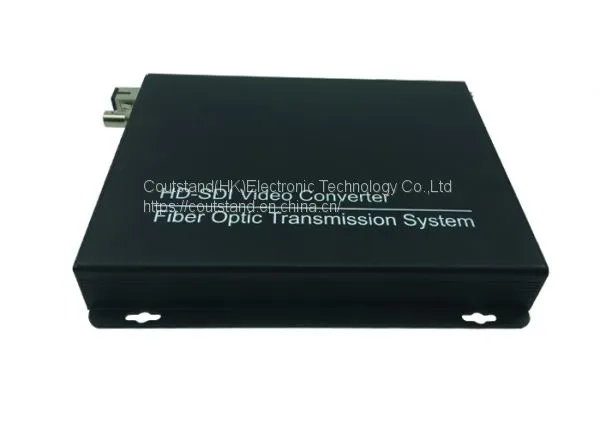

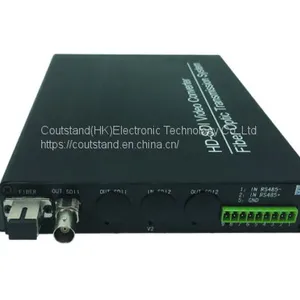

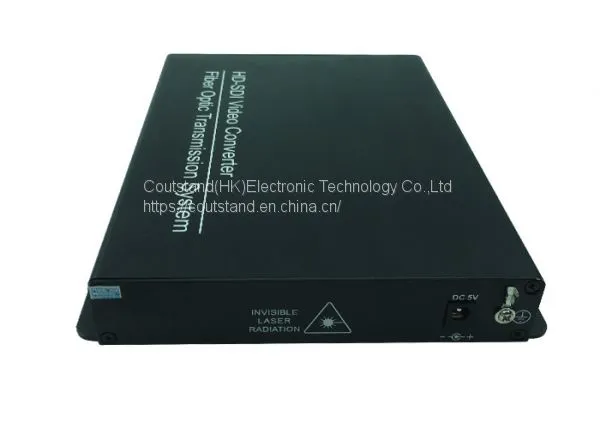

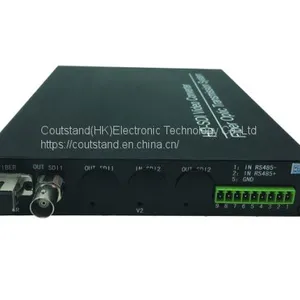

Help Center1Ch HD SDI Video to Fiber Converter
Related Products
-
4Ch 3G SDI Video to Fiber ConverterUS$ 200 - 400MOQ: 1 Piece -
4K X 2K HDMI Matrix 4x4 Base on HDBaseT Upto 100m With RS232 4PCS Receiver Support HDMI 1.4 and HDCP1.4US$ 1077.9 - 1099.9MOQ: 10 Pieces
-
Coutstand 8x8 HDMI Matrix With WIFI Upto 50m Over UTP CableUS$ 839.9 - 869.9MOQ: 1 Piece
-
Coutstand Coutstand 4X4 Seamless Switch HDMI Matrix & 2x2 Video Wall Using Four HDTV DispalysUS$ 539.9 - 769.9MOQ: 1 Piece
-
Coutstand Ultra 1x8 HDMI 2.0 Splitter 1 Hdmi Input 8 Hdmi OutputUS$ 53.9 - 69.9MOQ: 1 Piece
Description
Supporting for 1~16 channel optical transmission of HD-SD video and audio signal, 1 channel RS485 data
HDSDI input automatic detection,support the transmission rate of 270Mbit/s to 1.485Gbit/s , support form 1080P HD-SDI
Applying for digital signal as SMPTE-424M 3G-SDI、SMPTE-292M HD-SDI、SMPTE-259M SDI and DVB-ASI .
Transmission distance between 0km to 80KM via multimode fiber or single mode fiber is available.
Internal Equilizer, Reclocker and Cable Driver functions be used.
Supporting plug and play function, Operation status indicated by LED light.
Signal input achieved by automatic cable equalization,signal output could meet the function of long distance driven.
Feature
Transmission distance |
0~20km(optional 40km,60km,80km) |
Wave length |
1310nm/1550nm |
Fiber connecter type |
LC/FC |
Transmission power |
-10～-3dbm |
Fiber count |
1 |
Receive sensitivity |
>-34dbm |
Compatible standard |
SMPTE292M， SMPTE259M |
Rate |
270Mbps ～ 2.97Gbps |
Video interface |
BNC SD/HD/3G-SDI |
Signal interface |
1*RS485 |
input\output level |
800mVp-p±10％ |
Input/out put impedance |
75Ω |
Digtal video |
48KHz |
AES digtal video CH |
8 |
AES digtal video CH |
0℃~40℃/32℉~104℉ |
Operatation Temperature |
-20℃~60℃/-4℉~140℉ |
Shortage Temperature |
5~24VDC |
Dimension |
177×150×30mm |
Weight |
450g |
