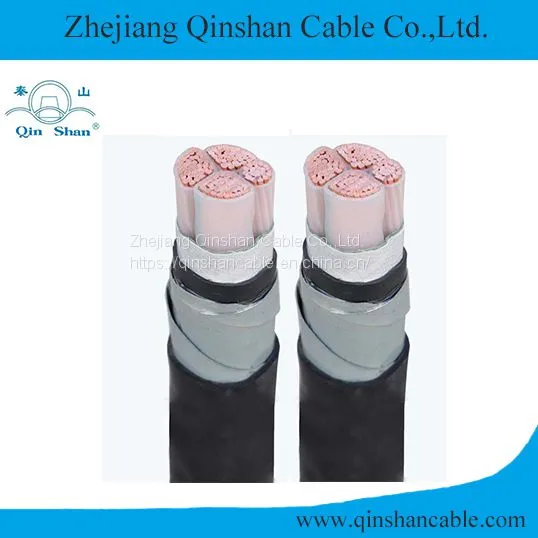

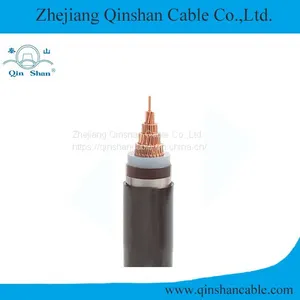

Copper Conductor XLPE Insulated Steel Tape Armoured PVC Sheathed Electric Cable
US$ 1000 - 5000
MOQ: 1 Roll
Key Specifications
Get Latest Price
Brand Name:
QINSHAN
Place of Origin:
China
Model Number:
QS-06
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Ningbo
Delivery Detail:
20 days
Related Products
-
Aerial Bundled CableUS$ 300 - 2000MOQ: 1 Roll -
4 Core Copper Conductor PVC Insulated Steel Wire Armoured PVC Sheathed Power CableUS$ 200 - 3000MOQ: 1 Kilometer
-
(4+1) Copper Conductor XLPE Insulated PVC Sheathed Electric CableUS$ 200 - 1000MOQ: 1 Dram
-
Aerial Bundled CableUS$ 200 - 5000MOQ: 3000 Meters
-
6mm² Single Core Solar CableUS$ 400 - 500MOQ: 3000 Meters
Brand Name
QINSHAN
Place of Origin
China
Model Number
QS-06
Type
Low Voltage
Application
Industrial
Insulation Material
XLPE
Jacket
PVC
Conductor Material
Copper
Model No.: YJV22-0.6/1.0KV
Application: Power Transmission And Lighting Systems
Standards: IEC 60502, IEC 60228, GB/T 12706.1-2008
For laying indoors and outdoors, it's able to bear certain traction during installation, but not external mechanical forces.
Laying single core cable in magnetic ducts is not allowed.
Rated voltage: 0.6/1.0kV
Maximum conductor temperature: normal 90℃, short circuit (no more than 5s) 160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2
Minimum ambient temperature: The cable shall be pre heated if the ambient temperature is below 0℃
Minimum bending radius:
For single core cable 20 x (d+D) ±5%
For multi-cores cable: 15 x (d+D) ±5%
