Specifications
1.High frequency and high density3.Low price and high speed

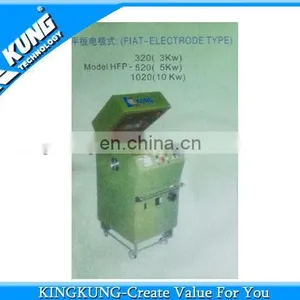

High frequency pre-heater/melamine tableware machine
1. Many brands for you choose
2. Engineers available to service machinery overseas
3. We also can offer the high quality second hand plastic injection machine, we change the main spare parts, so the machine looks almost new.
4. We are specialized in making Plastic injection moulds and can make new drawing according to customer,s request if any design need change.
5. We can offer many newly styles for you reference.
6. We also can offer the raw material for you according to your request.
If any new inquiry, pls feel free contact with us! We will offer you the high quality products, good service with competitive price!
Our melamine tableware machine pic:
Specification:
Item |
Flat electrodes |
||
|
KK-320 |
KK-520 |
KK-1020 |
Output |
3KW |
5KW |
10KW |
Max output |
3.2KW |
5.4KW |
10.8KW |
Power source |
220V 380V 415V |
220V 380V 415V |
220V 380V 415V |
Power input |
6.7KVA |
11KVA |
20KVA |
Oscillation frequency |
62MHZ |
62MHZ |
27MHZ |
Oscillation tube |
7T85RB |
7T69RB |
8T20RB |
Electrode voltage switching |
3 stage |
3 stage |
3 stage |
Timer |
0-999.9 Sec |
||
Preheating capacity |
110°C(Room temperature 25°C) within 60 secs |
||
Phenolic mould compounding |
500g |
1200g |
2500g |
Melamine moulding compounding |
450g |
1000g |
2000g |
Electrode size |
240x280m/m |
310x360m/m |
450x560m/m |
Electrode spacing |
25-60m/m |
30-70m/m |
35-60m/m |
Machine dimension |
W D H 500x775x1280 |
W D H 600x850x1480 |
W D H 600x1230x1520 |
Weigth |
180kgs |
260kgs |
600kgs |
Our Plastic injection mould with products pic:
Our raw material PP, PE, PVC,HDPE... pic:
Our second hand plastic injection mould:
Other EVA and PVC auxiliary equipment :
