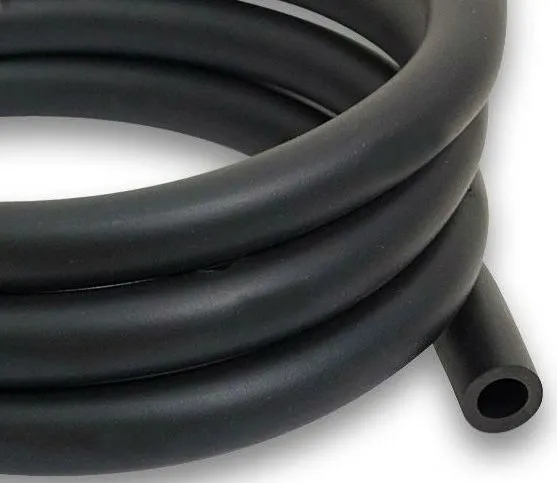

Hebei Shida Seal Group can produce standard and custom EPDM rubber tubing and EPDM hoses, tubes with a shore hardness of between 40° Shore A to 90° Shore A.
Main Characteristics:
Temperature ranges from –40°C to 125°C
Excellent abrasion resistance
Good resistance to tearing
Generally resistant to a wide range of media, including: Alcohols, Acidic salts, Alkaline salts, Alkaline solutions, Beverages, Bleach, Inorganic acids (dilute), Neutral salts, Water (cooling, brackish, salt), Hot water, Steam.
Mechanical Properties :
Specific Gravity (g/cm3): 1.35
Tensile Strength ( Mpa ): min. 7.6
Elongation break (%): min. 380
Hardness (Shore A): 65 ± 5
Compression Set (24hr / 70°C)max.: 26.5%
Applications:
EPDM rubber tubing is commonly used for many automotive applications, such as heater and coolant hose, vacuum-operated accessories and emission systems as well as air and shop hose and water and garden hose.
EPDM rubber tubing resists the effects weather can have over time and has similar resistance to heat, ozone and oxidation. EPDM tubing can also be developed to emphasize flame retardance, tensile strength, tear and abrasion resistance, low-temperature flexibility, compression set resistance and oil swell resistance.
EPDM rubber tubing can also be used for industrial, commercial, and personal applications and conditions.
General Purpose EPDM Rubber Tubing EPDM Hoses EPDM Rubber Tube China OEM Manufacturers Suppliers Factory EPDM Smooth Rubber Tubing - Radiator hose brake fluid tube, ideal for use as an Automotive Vacuum Hose for Emissions and Breather Systems
EPDM tubing is commonly used for many automotive applications, such as heater and coolant hose, vacuum-operated accessories and emission systems as well as air and shop hose and water and garden hose.
EPDM tubing resists electricity and works well with fireproof hydraulic fluids, ketones, hot and cold water, alcohols, alkalis and some acids but not with most oils, gasoline, kerosene, hydrocarbons, halogenated solvents and concentrated acids. EPDM tubing resists the effects weather can have over time and has similar resistance to heat, ozone and oxidation. EPDM tubing can also be developed to emphasize flame retardance, tensile strength, tear and abrasion resistance, low-temperature flexibility, compression set resistance and oil swell resistance. As EPDM's versatile polymer designs continue to be developed, EPDM tubing will become even more varied.
EPDM tubing has an outstanding resistance to oxygen, ozone, and sunlight. It is resistant to polar materials such as phosphate esters, many ketones and alcohol. Additionally, EPDM tubing has good electrical properties, low temperature flexibility, excellent heat, water and steam resistance.
Suitable for uses in the following industries:
Automotive
Agricultural
Aviation
Marine
Plant and Construction
Sizes:
Part Number |
ID (mm) |
OD(mm) |
Wall (mm) |
Length (m) |
EPDM 1X3 |
1 |
3 |
1 |
50 |
EPDM 1.6X4.8 |
1.6 |
4.8 |
1.6 |
50 |
EPDM 2X4 |
2 |
4 |
1 |
50 |
EPDM 3X5 |
3 |
5 |
1 |
50 |
EPDM 3X6 |
3 |
6 |
1.5 |
50 |
EPDM 4X6 |
4 |
6 |
1 |
50 |
EPDM 4X8 |
4 |
8 |
2 |
50 |
EPDM 5X8 |
5 |
8 |
1.5 |
50 |
EPDM 6X9 |
6 |
9 |
1.5 |
50 |
EPDM 6X12 |
6 |
12 |
3 |
50 |
EPDM 7X10 |
7 |
10 |
1.5 |
50 |
EPDM 8X12 |
8 |
12 |
2 |
50 |
EPDM 9X13 |
9 |
13 |
2 |
50 |
