Help CenterMR160 Cotton Delinter
Related Products

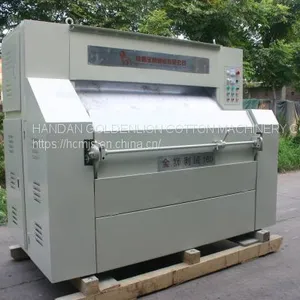

GeldenLion MR160 delinter is a new-type, high efficiency, economical and practical delinting machine. The delinted linter can be used in textile, paper making, chemical fiber and defense, etc., industries.
Main Features:
* Optimized design on roll box geometrical shape improved the cottonseed roll running conditions, increased the unit saw capacity.
* Manual roll-box handling is substituted by auto-device, to ease worker's labor intensity and ensure a smooth roll-box handling.
* Frequency inverter and LCD digital display made the adjustment of seed feeding easy, and can keep a stable seed roll density.
* The roll box is designed for two types, one is for first cut and another is for second and third cut, this permits all cuts are running in a reasonable condition, and avoided too much roll box position ajustment, made the operation much convenient.
* Eccentric adjustment device permits an easy seed lambrequin adjusting.
* Magnetic splint under seed slide to avoid metal matter dropping into roll-box to damage saws.
* Low seed damage rate and high linter quality.
* Whole enclosed structure, beautiful appearance, easy, safe and dependable operation.
Main Technical Specification (in case of lint residual rate is 0.4%, linter residual rate ≥12% moisture content ≤10%)
|
Cuts Description |
First cut |
Second cut |
Third cut |
|
|
Unit capacity (kg) |
3500 |
1000-1200 |
900-1100 |
|
|
Linter turnout rate (%) |
1.0-1.5 |
4-6 |
2.5-3.5 |
|
|
Doffing type |
Brush doffing |
Air blasting |
||
|
Feeder motor (kW) |
0.75 |
0.75 |
||
|
Float motor (kW) |
7.5 |
7.5 |
||
|
Delinting motor (kW) |
15 |
15 |
||
|
Roll box handling motor (kW) |
1.1 |
1.1 |
||
|
Overall dimension (L x W x H mm) |
2340x1320x1820 |
2340x1320x1820 |
||
|
Weight (kg) |
1980 |
1800 |
||
