Brand Name:TIANREN
Place of Origin:China
Model Number :012
Certificate :CE
Type :Combine Harvester
Usage :Grain Harvester

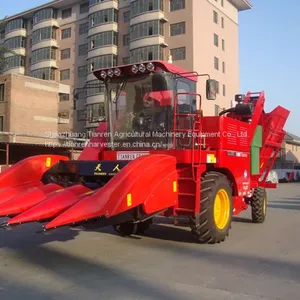

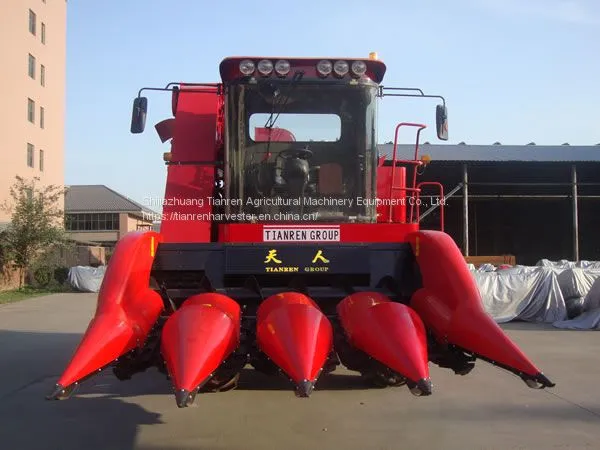

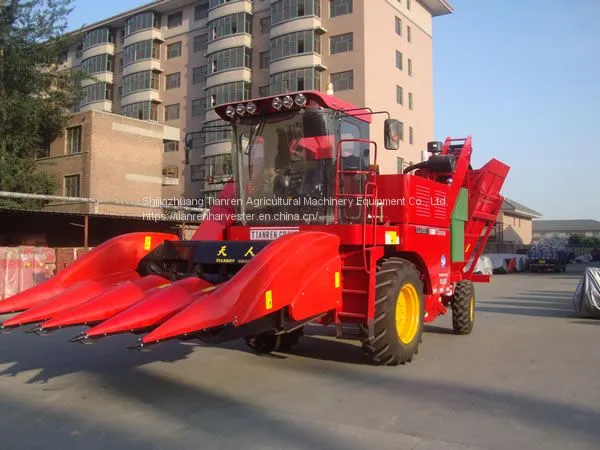

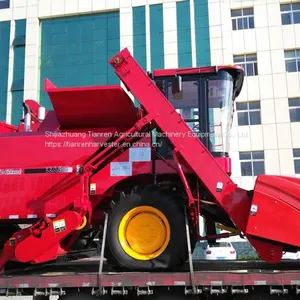

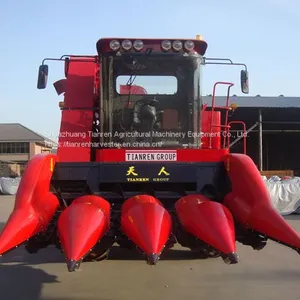

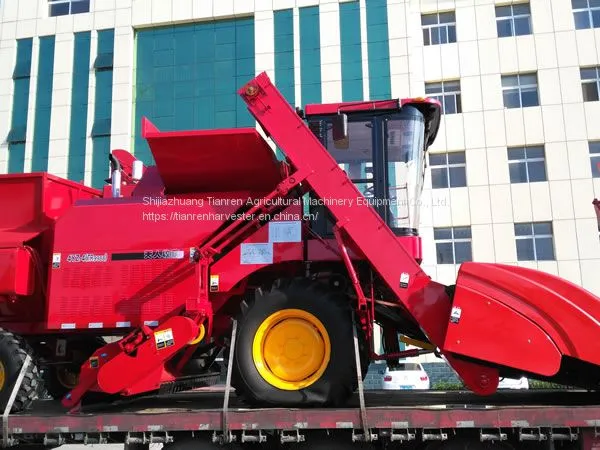

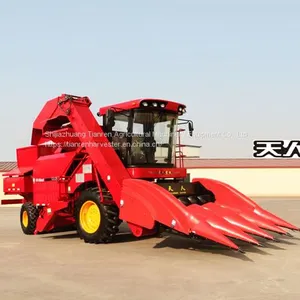

TR9988 Self-propelled Corn Combine Harvester
| Model | TR9988 |
| Function | picking up, peeling,cutting stalks, unloading etc |
| Number of rows | 4 |
| Regular row spacing (mm) | 650, 450/850 |
| Workable row spacing range (mm) | ±50 |
| Engine power (kw/hp) | 128/175 |
| Size (mm) | 9500*3300*3900 |
| Wheel base (mm) | 2000 |
| Grain tank Volume (m³) | 4.8 |
| Unloading height (mm) | 2600 |
| Breakage rate | ≤1% |
| Total loss rate | ≤3% |
| Peeling rate | ≥85% |
| The minimum corn cob height from field(mm) | 200 |
| Harvesting efficiency (acre/hour) | 1.3-2.4 |
| NW (kg) | 9300 |
| Stubble height (mm) | ≤120 |
| Flail chopper | Optional |
| Stalk chopper | Optional |
| Air conditioner | Optional |
More Features:
● Total Loss Rate: ≤ 3%
● Trustworthy High Pressure Common Rail Diesel Engine (European emission standard III) from Weichai
● Engine with fireproof containment protection, Keep corn whisker away
● Aluminum Alloy Gear Box
● Clutch comes with Two friction plate for extended service life
● Sheller concave with Hydraulic adjustment
● Upgraded driving cab with more comfortability
● Stalk cut into piece shorter than 10cm with Field Straw Chopper
● Advanced husking unit design: high peeling rate, good adaptability, less grain loss, high reliability.
● Air Conditioner
● Rustproof Finishment
● Real time operation monitor system with LCD Panel
Main Advantage:
● Tianren Corn Corn Picker, Corn Harvester and Combine harvester are all equipped with TIANREN industry leading corn head
● Reliable and durable chassis design: equipped with quality gearbox, stepless speed adjustment; strengthened front axel, underframe, and main frame, more durable.
● Leading performance diesel engine: featuring huge power reserve and less fuel consumption.
● Patented energy saving protection of engine: using the wind from radiator fan to ensure no corn leaves and other combustible gathered around the engine, energy saving.
● Advanced hydraulic lifting system: can lift peeled corn the second time to ensure the 6.7 m³ grain tank filled automatically, save time and manpower.
● The corn header attached flail blade(optional): can do stubble ploughing, save 40% fuel consumption by crushing the stalks together with snapping.
Delivery Port :As per customers' request
Packing :As per customer’s request
Delivery Lead Time :Shipped in 30 days after payment
Supply Ability :2000 Sets of Corn Harvester/Year , 20000 Rows of Corn Header/Year
