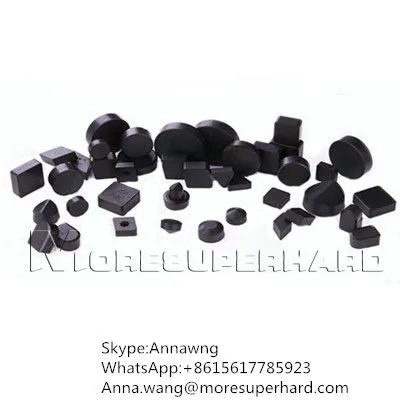

Cubic Boron Nitride Inserts (CBN Inserts) Is A High-Performance Type Of Cutting Tool Material From A Polycrystalline Mass. CBN Is A High Hardness, High Heat Resistance Crystal Synthesized By Boron And Nitrogen Under High Temperature And High Pressure.
Applications Of Solid CBN Inserts:
Processing Workpiece: Rough And Finish Machining Of The Hard Steel ,Cast Iron And Hard Surface Workpiece.
Processing Materials: Ferrous Materials Possessing Hardness From Approximately 45 HRC As Well As Gray Cast Iron, Cr-Chilled Cast Iron And Wear Alloys On A Cobalt, Nickel Or Iron Basis.

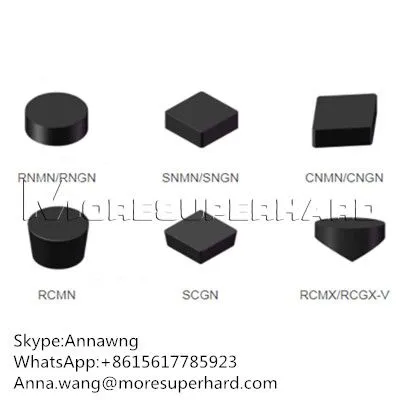

Specification Of Solid CBN Inserts:
| |||||
| Insert Type |
Dimensions |
Standard Cutting Edge |
|||
| L | Ø I.C |
S | R | ||
| RNMN060400 | 6.35 | 6.35 | 4.76 | 0 |
T01020 T01025 T02020 T02030 S01020 S01025 S02020 S02030 S05020 S10020 |
| RNMN090300 | 9.525 | 9.525 | 3.18 | ||
| RNMN090400 | 9.525 | 9.525 | 4.76 | ||
| RNMN120400 | 12.7 | 12.7 | 4.76 | ||
| RNMN120600 |
12.7 | 12.7 | 6.35 | ||
| RNMN120700 | 12.7 | 12.7 | 7.94 | ||
| RNMN190700 | 19.05 | 19.05 | 7.94 | ||
| RNMN201000 | 20 | 20 | 10 | ||
| RNMN251000 |
25.4 | 25.4 | 10 | ||
| RNMN251200 | 25.4 | 25.4 | 12 | ||
| |||||
| Inserts Type | Dimensions | Standard Cutting Edge | |||
| L | Ø I.C | S | R | ||
| SNMN090302 | 9 | 9.525 | 3.18 | 0.2 | S02020 S05020 S10020 |
| SNMN090304 | 9 | 9.525 | 3.18 | 0.4 | |
| SNMN090306 | 9 | 9.525 | 3.18 | 0.6 | |
| SNMN090308 | 9 | 9.525 | 3.18 | 0.8 | |
| SNMN090312 | 9 | 9.525 | 3.18 | 1.2 | |
| SNMN090404 | 9 | 9.525 | 4.76 | 0.4 | |
| SNMN090408 | 9 | 9.525 | 4.76 | 0.8 | |
| SNMN090412 | 9 | 9.525 | 4.76 | 1.2 | |
| SNMN120404 | 12 | 12.7 | 4.76 | 0.4 | |
| SNMN120406 | 12 | 12.7 | 4.76 | 0.6 | |
| SNMN120408 | 12 | 12.7 | 4.76 | 0.8 | |
| SNMN120410 | 12 | 12.7 | 4.76 | 1.0 | |
| SNMN120412 | 12 | 12.7 | 4.76 | 1.2 | |
| |||||

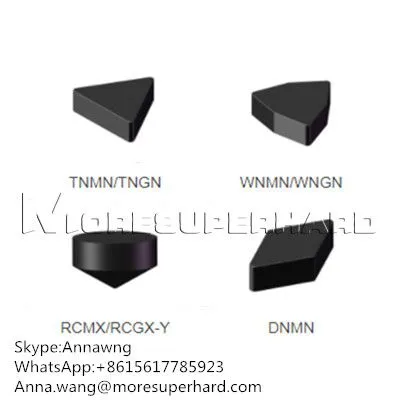

| Inserts Type | Dimensions |
Standard Cutting Edge |
|||
| L | Ø I.C | S | R | ||
| TNGN110304 | 11 | 6.35 | 3.18 | 0.4 | S01020 S02020 |
| TNGN110308 | 11 | 6.35 | 3.18 | 0.8 | |
| TNGN110312 | 11 | 6.35 | 3.18 | 1.2 | |
| TNGN160404 | 16 | 9.25 | 4.76 | 0.4 | |
| TNGN160408 | 16 | 9.25 | 4.76 | 0.8 | |
| TNGN160410 | 16 | 9.25 | 4.76 | 1.0 | |
| TNGN160412 | 16 | 9.25 | 4.76 | 1.2 | |
| |||||
| Inserts Type | Dimensions |
Standard Cutting Edge |
|||
| L | Ø I.C | S | R | ||
| CNMN090404 | 9 | 9.525 | 4.76 | 0.4 | S02020 |
| CNMN090408 | 9 | 9.525 | 4.76 | 0.4 | |
| CNMN090412 | 9 | 9.525 | 4.76 | 1.2 | |
| CNMN120404 | 12 | 12.7 | 4.76 | 0.4 | |
| CNMN120408 | 12 | 12.7 | 4.76 | 0.8 | |
| CNMN120412 | 12 | 12.7 | 4.76 | 1.2 | |
| CNMN120704 | 12 | 12.7 | 7.94 | 0.4 | |
| CNMN120708 | 12 | 12.7 | 7.94 | 0.8 | |
| CNMN120712 | 12 | 12.7 | 7.94 | 1.2 | |
| CNMN120804 | 12 | 12.7 | 8.0 | 0.4 | |
| CNMN120808 | 12 | 12.7 | 8.0 | 0.8 | |
| CNMN120812 | 12 | 12.7 | 8.0 | 1.2 | |
| CNMN160708 | 16 | 15.875 | 7.94 | 0.8 | |
| CNMN160712 | 16 | 15.875 | 7.94 | 1.2 | |
| CNMN160716 | 16 | 15.875 | 7.94 | 1.6 | |
| |||||
| Inserts Type | Dimensions |
Standard Cuttingedge |
|||
| L | Ø I.C | S | R | ||
| RCMN060400 | 6 | 6.35 | 4.76 | 0.4 | S02020 S05020 S10020 |
| RCMN090400 | 9 | 9.525 | 4.76 | 0.8 | |
| RCMN090600 | 9 | 9.525 | 6.35 | 1.2 | |
| RCMN120600 | 12 | 12.7 | 6.35 | 0.4 | |
| RCMN120700 | 12 | 12.7 | 7.94 | 0.8 | |
| RCMN150700 | 15 | 15.875 | 7.94 | 1.0 | |
| RCMN190700 | 19 | 19.05 | 7.94 | 1.2 | |
| |||||
| Inserts Type | Dimensions |
Standard Cutting Edge |
|||
| L | Ø I.C | S | B | ||
| RCMX060400V | 6 | 6.35 | 4.76 | 0.8 | S02020 S05020 S10020 S20020 |
| RCMX060500V | 6 | 6.35 | 5.00 | 0.8 | |
| RCMX060600V | 6 | 6.35 | 6.35 | 0.8 | |
| RCMX090700V | 9 | 9.525 | 7.94 | 1 | |
| RCMX120700V | 12 | 12.7 | 7.94 | 2 |
|
| RCMX151000V | 15 | 15.875 | 10.0 | 2 | |
| RCMX191000V | 19 | 19.05 | 10.0 | 2 | |
| RCMX201200V | 20 | 20 | 12.0 | 2 | |
| RCMX251200V | 25 | 25.4 | 12.0 | 2 | |
| |||||
| Inserts Type | Dimensions |
Standard Cutting Edge |
|||
| L | Ø I.C | S | B | ||
| RCMX060400Y | 6 | 6.35 | 4.76 | 0.6 | S02020 S05020 S10020 S20020 |
| RCMX060500Y | 6 | 6.35 | 5.0 | 0.6 | |
| RCMX060700Y | 6 | 6.35 | 7.94 | 0.6 | |
| RCMX090700Y | 9 | 9.525 | 7.94 | 1 | |
| RCMX120700Y | 12 | 12.7 | 7.94 | 1.2 | |
| RCMX191000Y | 19 | 19.05 | 10.0 | 1.2 | |
| RCMX251200Y | 20 | 20 | 12.0 | 1.2 | |
* Other Types Of Solid CBN Like SCGN,DNUN,WNMN,RCMO,CNML,DNML ,All Available Upon Request. For More Information, Please Click On The PDF Below.
Specification Of Solid CBN Inserts.Pdf ( Please Click On The Link Download)
