high precision 3d scanner for 3d printer .3d scanner for mold ,3d scanner for CNC router
Brief introduction
3D scanner is mainly applied to the object contour, 3D digital data is a very effective and efficient tool, which has the high precision speed, no damage to the object, no contact deformation.
The three-dimensional scanning system in Jinan Lu Diao has the the world's leading Grating technology, which could obtain the three dimensional data of the object surface in short time.
It is widely used in mold design and manufacturing, three-dimensional sculpture carving, carving handicraft processing, stereo industrial products manufacturing, quality inspection and control, measurement and other fields.
Technicial parameters
Model(content) |
LD1302 |
Scanning way |
Non-contact surface scanning |
Raster technology |
German original industrial sensor,binocular1.3 million classes |
Accuracy |
|
Single frame Speed |
|
Dot-pitch |
0.1-0.3mm |
Projector resolution |
1024*768 |
Camera lens |
Japanese original lens |
Raster display |
American brand light source raster |
Alignment |
Fully automatic stitching alignment |
Scanning range |
objects as small as 10mm in diameter, large objects to two meters high, can precision scanning |
Scanning depth |
not only meet the general object scanning, suitable depth scan larger objects (0 ~ 180mm) |
System support |
WINDOWS XP/WINDOWS 7/ WINDOWS 7 X64 |
Supporting software |
International large-scale software fully compatible (can generate a variety of data formats for use in other software, including stl, ply, asc, ac, pif, etc., can be converted to AutoCAD, Geomagic Studio, Rapid Form, ImageWare other software for post-processing.) |
Driver support |
Microsoft Certified driver, easy to install |
Core technology |
The latest technology of Europe and United States in 2013 |
Memory usage |
Supporting large memory more than 16G |
Noise level |
Very low |
Voltage |
100-230V,50/60HZ |
Standard accessories
Calibration plate |
1 piece |
Calibration plate holder |
1 set |
Dongle |
I set |
Paper marker |
1 pieces |
Power line |
1 piece |
Data line |
1 piece |
System dish |
3 pieces |
Black table cloth |
1 piece |
Operation manual |
1 piece |

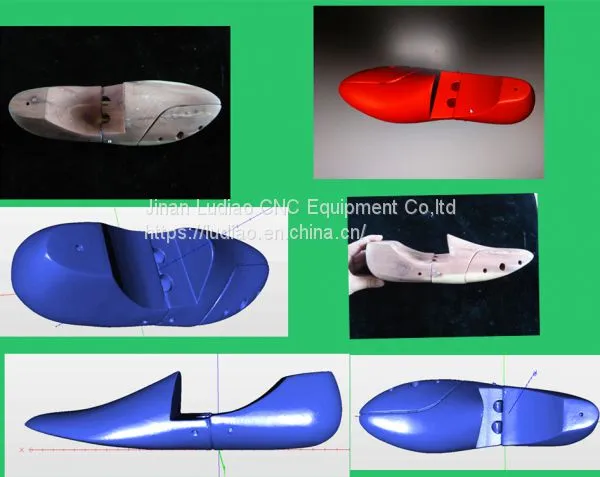

Samples
