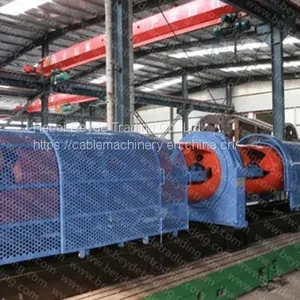

Help Center1+6/630 High Speed New Technology Tubular Stranding Machine JGG500/JGG630
Related Products
-
Tubular Stranding Machine.cable Making Machine. Cable Manufacturing EquipmentUS$ 50000 - 300000MOQ: 1 Set -
Cable Strander.Cable Stranding Machine.Planetary Stranding Machine.US$ 5 - 300000MOQ: 1 Set
-
Cable Stranding Machine.Planetary Stranding Machine.cable StranderUS$ 5 - 300000MOQ: 1 Set
-
Cable Stranding Machine.bow Type Stranding Machine.cable StranderUS$ 5 - 300000MOQ: 1 Set
-
Low Price High Quality Cable Strander Steel Wire Armouring Machine Cable and Wire Armored Equipment 400/500/800US$ 50000 - 350000MOQ: 1 Piece
max18606615951()gmail com
Application
The high speed machines mainly used for stranding copper wire, aluminum wire, steel wire, ACSR and wire rope. Accompanied with taping head, it can used for insulation cores and some control cable stranding process. Tubular Stranders/Cablers are suitable for the assembly of bare wires (steel wires, copper and Aluminum ) and insulated conductors into concentric strands or cables. Tubular machine is working with 100% backtwist movement.
Main Component
Central pay-off, cage host, taping device(optional), capstan, take-up and traverse device and electric control system.
Technical
| Specification | JGGA400 | JGGA500 | JGGA 630 | ||||
| Inlet wire Dia(mm) | Conductor | 1.5-3.5 | 1.8-4.0 | 2.0-5.0 | |||
| steel | 1.0-2.5 | 1.5-3.0 | 1.8-4.0 | ||||
| Cores | 1.2-3.5 | 1.5-5.0 | |||||
| Frame rotation speed(r/min) | 700 | 600 | 400 | ||||
| Stranding Pitch(mm) | 41-312 | 44-334 | |||||
| Linear Speed(m/min) | 27-205.3 | 222-166.85 | 14-108.9 | ||||
| Capstan Dia(mm) | 800+1000 | 1000+1200 | 1000+1250 | ||||
| Size of Take-up | PN1250 | PN1600 | PN1600 | ||||
Features
1.High durability ball bearings with lubrication system of customer's choice.
2.Fully dynamic-balanced rotor tubes and micro-akigned centering/leveling.
3.Cradles can be equipped with a variety of optional bobbin loading/unloading devices and wire tension controllers.
4.Optional safety guards for main rotor.
