Help CenterAPI Sucker Rod From Manufacturer
Related Products
-
API Sucker Rod CouplingsUS$ 2.5 - 12.5MOQ: 1 Piece -
Manufacturer of Tubing AnchorUS$ 300 - 900MOQ: 1 Piece
-
3PC Ball Valve Cf8m 1000 Wog Stainless Steel Ball ValveUS$ 12 - 50MOQ: 1 Piece
-
API Float Collar and Float Shoe From ManufacturerUS$ 95 - 450MOQ: 1 Set
-
Fine Price Float Collar and Shoe From ManufacturerUS$ 95 - 450MOQ: 1 Set

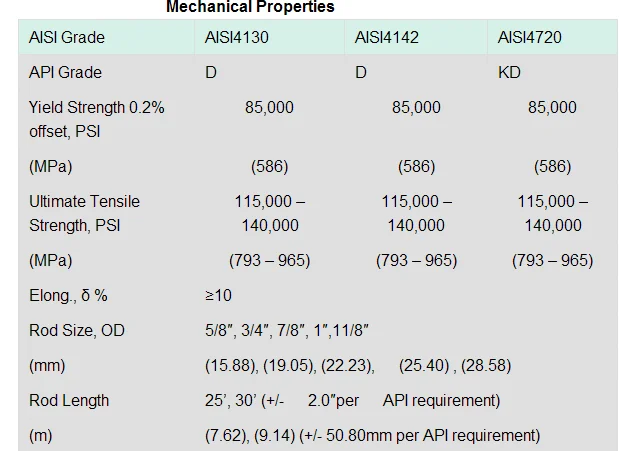

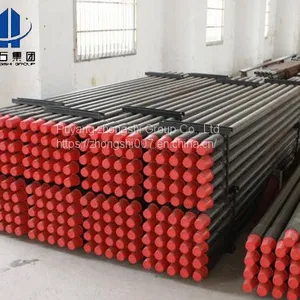

Sucker rods are manufactured according to API 11B Specifications. Currently, we market 3 types of API sucker rods Grade D Alloy and Grade D Special which are formulated from different alloys:AISI 4130 (Grade D), AISI 4142 (Grade D) and AISI 4720 (Grade KD).
Manufacturing Process:
1. Rod Bar
The incoming rod bars are inspected for any damage, fault and discontinuities.Before arranging the rod bars for production process, carry out chemical composition testing, dimensional inspection & surface quality inspection. High quality standard is maintained at various stage inspections.

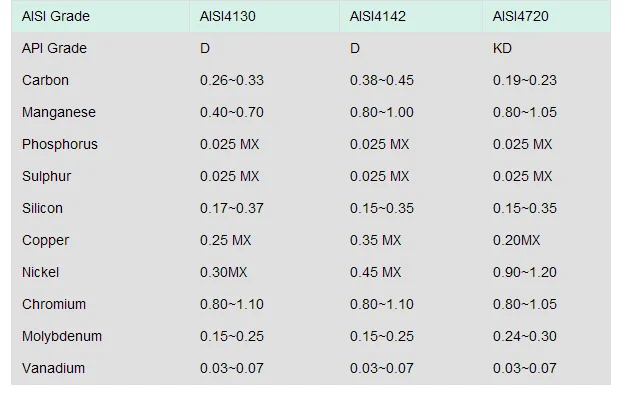

Chemical Composition
2.Manufacturing

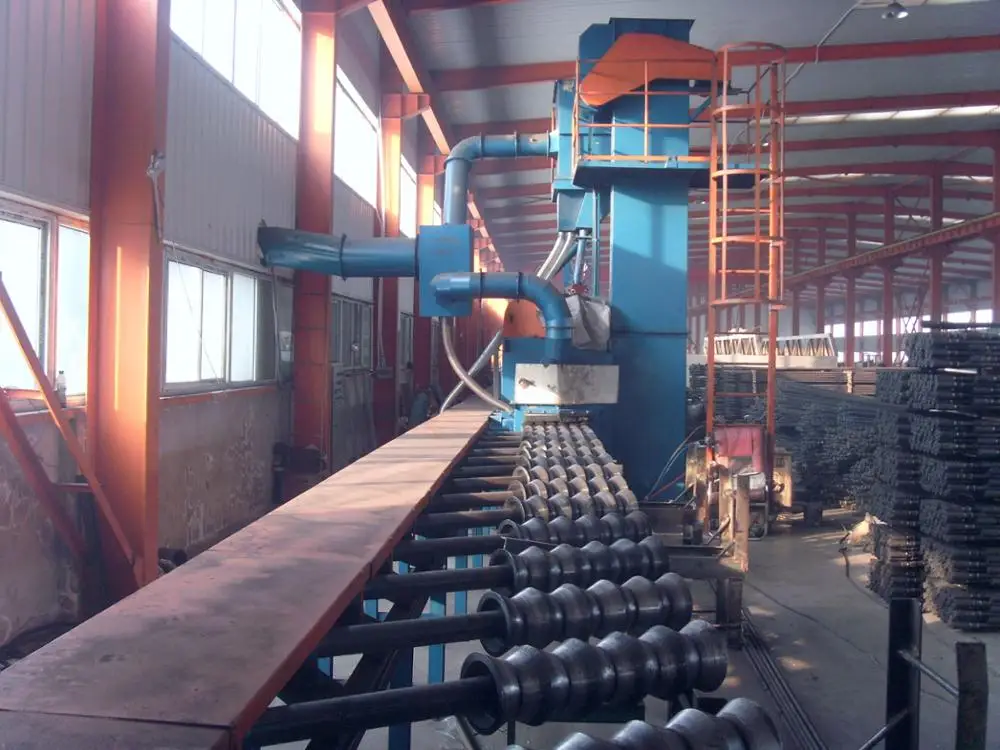

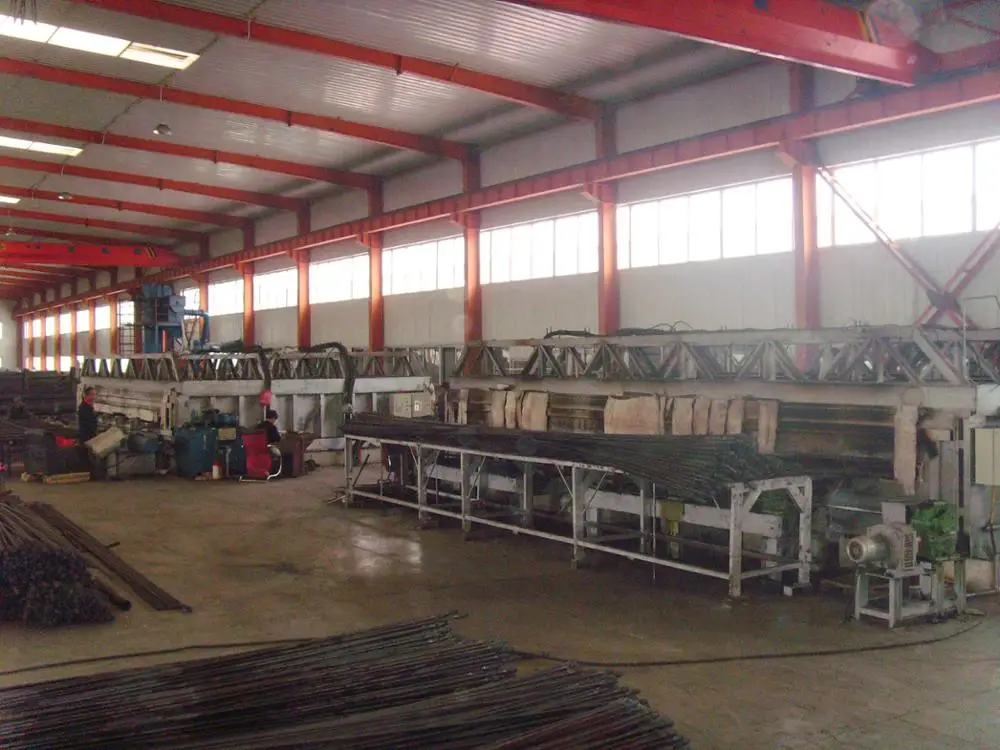

Rod bars are manufactured from hot rolled alloy steel. Rod bars are machine straightened and cold drawn to the required size. The rod bar ends are hot forged according to API designed sizes. The rods are then heat treated over the full length.As per requirement of mechanical properties, the rods are normalized and tempered to the specified level or quenched and tempered to the required hardness and strength. Care is taken to achieve metallographic structure with no residual stresses in the rod.A sample specimen is cut from the heat treated material and is tested for ultimate tensile strength, yield strength and elongation. The rod is then again checked for straightness. The forged ends are properly aligned with its body. Rods are cleaned by shot-blasting to remove any scale and oxidation. The forged ends are machined on C.N.C. Lathe machines as per API dimensions and checked with API approved gauges.
Restructured from SINOPEC in 1997, Puyang Zhongshi Group Co., Ltd has 18 years manufacturing experience of petroleum machinery products till now, we have competitive prices of our main products of casing accessories likebow spring centralizer, solid rigid centralizer,float equipment, cementing plug etc.
We have 9 factories, more than 500 employees, and many kinds of production equipments.
We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.
With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.
