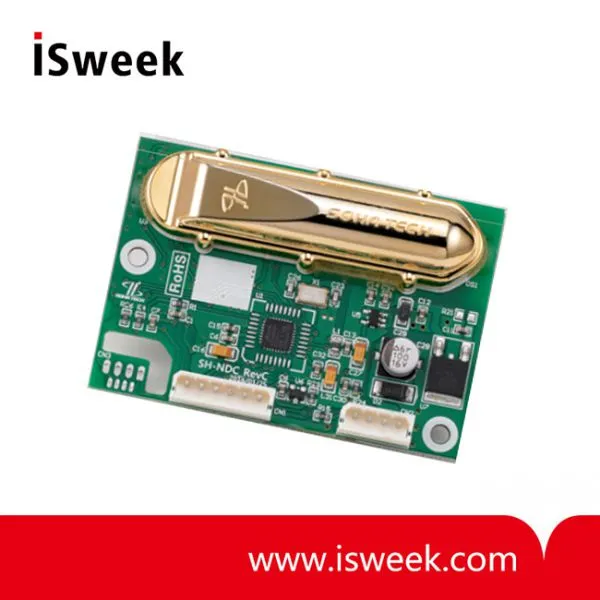

SH-300-NDC NDIR Carbon Dioxide (CO2) Sensor Module (Dual Wavelength)
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SOHA
Place of Origin:
South Korea
Model Number:
SH-300-NDC
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
SH-300-NDTH NDIR Carbon Dioxide (CO2) Sensor ModuleNegotiableMOQ: 1 Piece -
SenseH2-R Hydrogen Sensor Refrigerant Gas Tolerant SensorNegotiableMOQ: 1 Piece
-
IRM-AT Infrared Methane (CH4) Sensor Thermopile DetectorNegotiableMOQ: 1 Piece
-
CO-BF Carbon Monoxide Sensor (CO Sensor)NegotiableMOQ: 1 Piece
-
ULPSM-NO2 968-047 Ultra-Low Power Analog Nitrogen Dioxide Sensor ModuleUS$ 40 - 60MOQ: 1 Piece
Brand Name
SOHA
Place of Origin
South Korea
Model Number
SH-300-NDC
Usage
Gas Sensor
Theory
Other, NDIR Gas Sensor
SH-300-NDC NDIR CO2 Sensor Module Features
• Best Extremely Precise Sensor
• Quick Response Time
• Long Time Use, Stable performance at High & Low Temperature
• Waterproof Filter for anti static filters fine dust and humidity in the air
• One-way air indraft for represent average value when momentary CO2 Value change in the air
• Low Current consumption
• Output support: UART, 0~3V Analog
SH-300-NDC NDIR CO2 Sensor Module Application
• CO2 Control for Indoor Air Quality
• CO2 Measuring for Ventilation Control
• CO2 Control for Building, Hospital, School
• CO2 Control for Air cleaner, Air conditioner.
• Mushroom Control, Boiler Control
SH-300-NDC NDIR CO2 Sensor Module Technical Specification
| Measuring Type | Dual Light Wavelength Non-Dispersive Infrared (NDIR) |
| Measuring Range | 0 ~ 3,000 / 5,000 / 10,000 ppm |
| Accuracy | ±2% FS, ±3 % measured value @0 ~ 50°C |
| Response Time | Every 2.0 Seconds |
| Warm-Up Time @25°C | |
| Operating Condition | -10 ~ 50°C, 0 ~ 99.5% RH (Non-Condensing) |
| Output | Analog : 0~3VDC (0~3000, 5000, 10000ppm) [CN2] |
| UART: 9600bps [CN1] / TTL Level 3.3V | |
| Power Input | DC 7V ~ 12V Input |
| Fixed(Other Made): 5 VDC Regulated (±4%) | |
| Consumption Current | Normal 35mA, Peak 80mA |
| Interface | 4PIN Header[CN2], 6PIN Header[CN1] |
| Molex 5267 included. | |
| With 2.54mm spacing | |
| Size | (W)65 mm x (H)45 mm x (D)17.6 mm (±0.5 mm) |
| Weight |
19 g |
