customizable silicone trademark machine

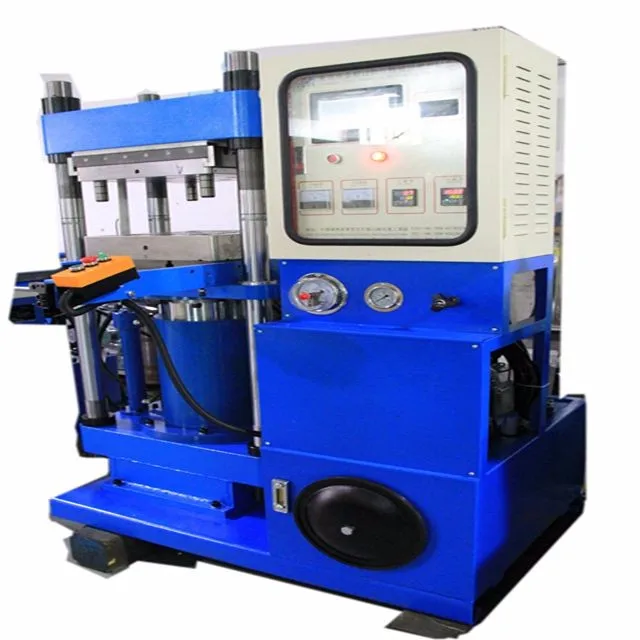

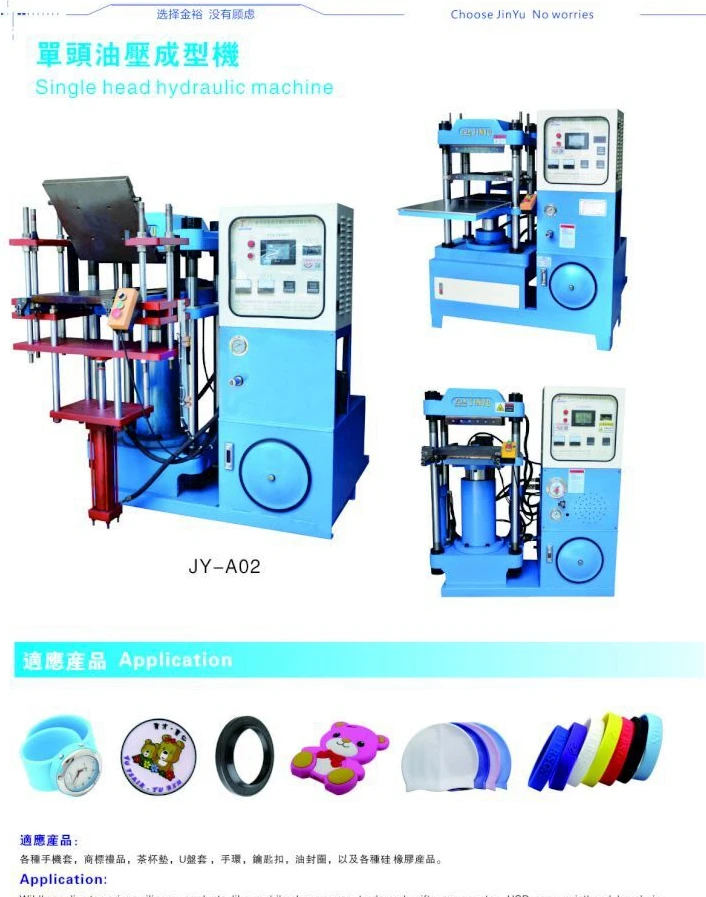

Technical Parameters about single head hydraulic machine for rubber bracelets:
| Type | 30T | 50T | 63T |
| Worktable (mm) | 350*350 | 350*400 | 400*400 |
| Power specification | 3 phase 4 wire, 380V | 3 phase 4 wire, 380V | 3 phase 4 wire , 380v |
| Total power (kw) | 14.5 | 16.3 | 16.3 |
| Electrical power (kw) | 3.7 | 5.5 | 5.5 |
| Heating power (kw) | 10.8 | 10.8 | 10.8 |
| Piston diameter (mm) | Φ150 | Φ180 | Φ200 |
| Weight (kw) | 1000 | 1500 | 2000 |
| Size (mm) | 1200*1400*1350 | 1300*1650*1400 | 1400*1650*1700 |
Features of single head hydraulic machine for rubber bracelets:
1.nodular cast iron, has high tensile strengh and toughness after aging carbonization treatment;
2. use Japan NOKU oil seal, abrasion resistance, heat resistance and long service life;
3. use the HRC55-58 vertical post, middle carbon steel treatment hard-chromed treatment,
ensure the machine precision;
4. high and low pressure oil pump combination, cooling device for oil circuit system;
5. mator auto shutdown once it delay, make it better protect the oil system, poweer saving at
the same time;
6. operate the machine via PLC panel, use 24V circuit accessories, safe and durable.
Our company has its own factory, the staff have many years of production engineering technical experience, the overall production strength, the machine quality is high.At present, our r&d department often develops new machines according to market changes. Strive for the market for customers.High production speed and guarantee.Independent research and development, multiple patents.Be flexible in order to see specific products.
:
In 2000, founded pvc(plastic dropping) trademark equipment;
In 2002, developed silica gal(silicone) trademark forming machine;
In 2004, researched and developed hydraulic machine 30T, 50T, 63T, 100T;
IN 2006, researched and developed full automatic dispensing(dropping) equipment.
