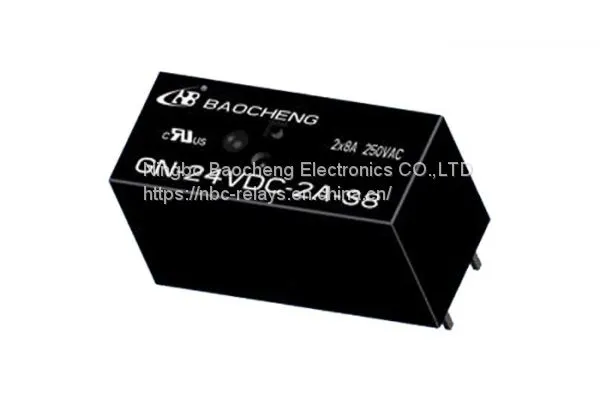

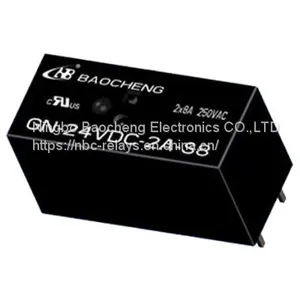

RELAY TYPE: GN Relay
Baocheng export excellent power relay, telecom relays and automotive relays.
· 16A switching capability
· Low height: 15.7 mm
· Standard PCB layout
· Dielectric strength between coil and contact 5KV
· Various of contact forms available
· Option for sealed and flux-tight type
· UL insulation grade：Class F
· Environmental friendly product
· Outline dimension: 29 x 12.7 x 15.7mm
Baocheng sells Power Relays, High Power Relays.
Contact Ratings | |
Contact Form: |
1A, 1B, 1C; 2A, 2B, 2C |
Contact Material: |
AgCdO, AgSnO2 |
Contact Load Capacity: |
1A,1B,1C:16A/250VAC;12A/250VAC |
2A,2B,2C:8A/250VAC | |
Max. Switching Current: |
16A |
Max. Switching Power: |
4000VA |
Mechanical Endurance: |
1*107OPS |
Electrical Endurance: |
1*105OPS |
Technical Ratings | |
Insulation Resistance: |
1000MΩ |
Dielectric Strength(Between coil&contact): |
5000VAC |
Operate Time (Max.): |
15ms |
Release Time (Max.): |
8ms |
Ambient Temperature: |
-40℃ ~ 85℃ |
Terminal Type: |
THT |
