Help CenterRotary Diamond Grinding Wheel
US$ 1 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MORE
Place of Origin:
China
Model Number:
grinding wheel
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Diamond Wheel for Chainsaw SharpingUS$ 1 - 2MOQ: 1 Piece -
Microcellular pu Glass Polishing PadUS$ 1 - 2MOQ: 1 Piece
-
Internal Grinding Wheel With Shaft ,Without Shaft Cbn Internal WheelsUS$ 1 - 2MOQ: 1 Piece
-
CBN With Handle Small Internal Grinding WheelUS$ 1 - 2MOQ: 1 Piece
-
Polyurethane Polishing Pad Filler Cerium Oxide for Precision Optics LensUS$ 1 - 2MOQ: 1 Piece
Brand Name
MORE
Place of Origin
China
Model Number
grinding wheel
Size
all
Type
Abrasive Block
Details

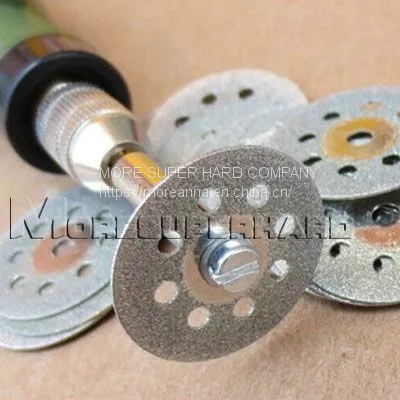

Electroplated Diamond Rotary Mini Discs With Mandrels Are Electroplated On Both Sides With Full Diamond Coverage Used For Grinding, Finishing And Smoothing On Glass, Jade, Porcelain, Ceramic, Tile, Slate, Metals, Etc.
The Specification Of Electroplated Diamond Rotary Disc:
| Diameter (Mm) | Hole (Mm) | Blank Thickness (Mm) | Return Width | Grit Size | Maximum RPM |
| 16 | 3 | 0.3 | 5 | 200 | 20000 |
| 19 | 3 | 0.3 | 5 | 200 | 20000 |
| 20 | 3 | 0.3 | 6 | 200 | 20000 |
| 22 | 1.8, 3 | 0.3 | 7 | 200 | 20000 |
| 25 | 2, 3 | 0.3 | 9 | 200 | 20000 |
| 30 | 3 | 0.3 | 11 | 200 | 20000 |
| 38 | 3 | 0.3 | 11 | 200 | 20000 |
| 40 | 3 | 0.5 | 12 | 150 | 20000 |
| 45 | 3 | 0.3 | 17 | 150 | 20000 |
| 50 | 3 | 0.5 | 17 | 150 | 20000 |
