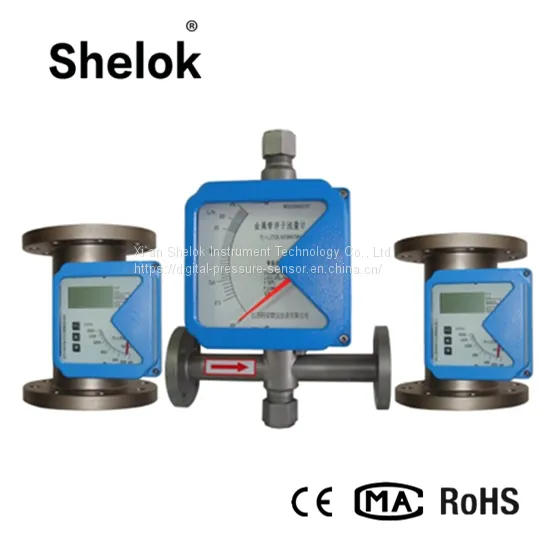

- Description of magnetic hydraulic rotameter metal tube rotor flow meter:
The low cost metal tube flow meter is composed of sensors and indicators. Combination of different ways to achieve different environmental requirements of different specifications of metal pipe flow meter.
Features of magnetic hydraulic rotameter metal tube rotor flow meter:
·Modularly combined,maintenance-free.
·High accuracy, generally up to ± 1.5% R, ± 1.0% R.
·Non-contacting magnetic coupling structure,the spectrum signals travel well.
·LCD with backlight,duplicate rows display.
·Data backup and recovery.
·All metal construction,seismic pressure ,heat-resistant and anti-corrosion.
Specification of magnetic hydraulic rotameter metal tube rotor flow meter:
Specifications | |||
Measuring range |
water (20 °C) :1-200000I / h; air (20 °C, 0.1.13Mpa); 0.03 ~ 4000m3 / h |
Turndown ratio |
Standard: 10:1 ; special type: 20:1 ; |
Accuracy |
Standard: 1.5 ; special type: 1.0 ; |
Pressure Rating : |
Standard : DN15-DN50 4.0Mpa; DN80-DN200 1.6Mpa; |
Pressure loss |
7Kpa ~ 70Kpa |
Medium temperature |
Standard : -40 °C ~ 100 °C; high temperature : 100 °C ~ 450 °C; |
Medium viscosity |
DN15: nDN25: n |
Ambient temperature |
Remote Type : 40 °C ~ 185 °C ( LCD will not be damaged ) LCD work at -30 °C ~ 80 °C |
Connection |
Standard : DN201 standard flange ; special type: specified by the user at any standard flanges or threaded ; |
Cable Interface |
flameproof as 1/2NPT internal thread , other M20 `1.5 internal thread ; |
Power supply: |
Standard : 24VDC wire 4-20mA (12VCD-32VCD) |
Battery type |
3.6V, 7.5AH Lithium battery , can be used continuously for three years ; |
Wire |
Rlmax = 50 • (-12) = 600 @ 24V |
Alarm |
maximum load resistance is 200, AC type : Maximum load resistance is 200 |
Alarm output |
upper or lower instantaneous flow alarm ; switch alarm ; relay output |
Protection class |
IP65 |
Application of magnetic hydraulic rotameter metal tube rotor flow meter:
The low cost metal tube rotameter can be widely used in petroleum, chemical, metallurgical, power, food, pharmaceutical, paper and other industries of liquid, gas, steam media measurement and process control.
