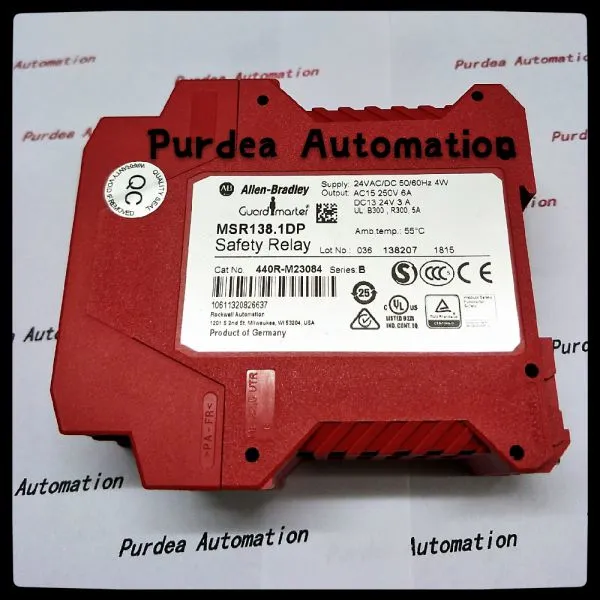

Help CenterRed Abb Safety Relay 440r-m23085 Msr138.1dp Safety Relay
Related Products
-
24v Dc 12v Safety Relay Safety Relay 440r-d23201 Msr125hNegotiableMOQ: 0 -
Dual Channel Safety Relay 440r-d22r2 Customized Safety RelayNegotiableMOQ: 0
-
Protective Sil 2 Relay 440r-m23088 Msr138.1dp Safety RelayNegotiableMOQ: 0
-
Safety Timer Relay 440rn23114 Msr126.1t Sealed Safety RelayNegotiableMOQ: 0
-
45 Mm 440rn23123 Msr127tp Safety Relay Sil 2 Safety RelayNegotiableMOQ: 0
Features:
Category 4 per EN 954-1
Stop category 0
Three safety contacts
One auxiliary contact
Cross-fault monitoring
Monitored or automatic reset
Removable terminals
Application:
MSR142RTP is a widely used safety monitoring relay.
Four different input wiring configurations can be used to connect the relay:
A two PNP link between a normally closed, two normally closed, light screen, or four line safety carpets.
When using two normally closed modes to link, MSR142RTP checks whether there is a cross fault between the two inputs.
When the screen is connected to the screen, the screen must perform cross fault detection.
Description:
Monitoring Safety Relay -, Inputs, 1 N.C. Auxiliary Outputs

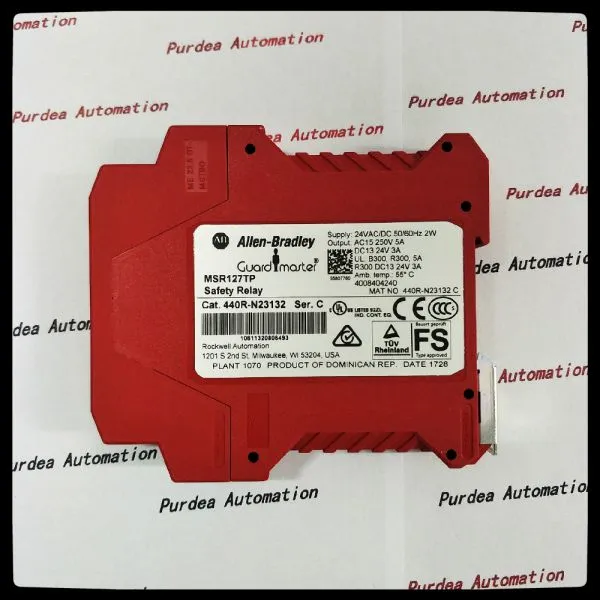

MINOTAUR, MSR127TP, 24V AC/DC, 3 NO + 1 NC, 22.5MM CASE
Relay Model Selected: MSR127RP/TP

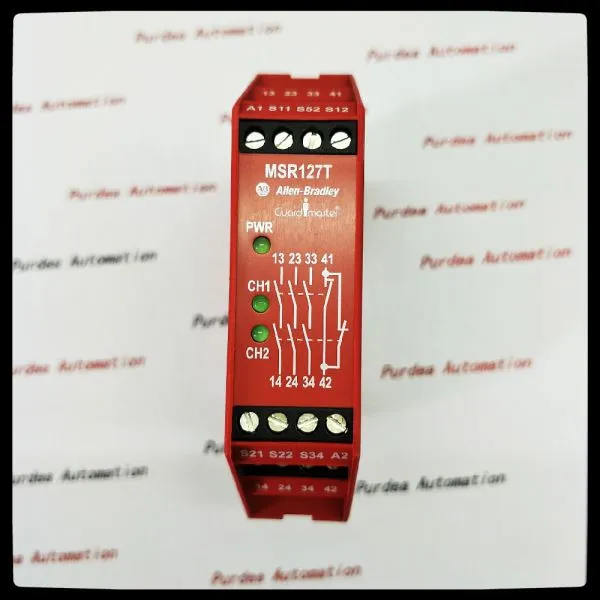

The Guardmaster® MSR127RTP can be connected in three different input wiring configurations: one normally closed, two normally closed, or with two PNP connections from a light curtain. When connected in the two normally closed fashion, the MSR127RTP checks for cross faults across the two inputs. When connected to light curtains, the light curtain must perform the cross-fault detection. Note that Guardmaster Safety Relays have been marketed by Rockwell Automation under the trade name "Minotaur" in the past.
