X5036S Knee Type Milling Machine

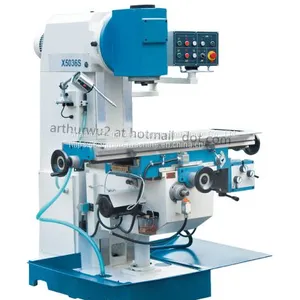

X5036S Knee Type Milling Machine thumbnail-1
X5036S Knee Type Milling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Sanmore
Place of Origin:
China
Model Number:
X5036S
Contact Supplier Request Quote Chat Now
Shaanxi Sanmore Industry And Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or other China port
Delivery Detail:
50 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sanmore
Place of Origin China
Model Number X5036S
Type Vertical
After-sales Service Provided Engineers available to service machinery overseas
Condition New
CNC or Not Normal

X5036S is a vertical milling machine, high power, processing range widely, automatic feed on two axes, motorized lift on Z axis, hardened.

Model

X5036S

Spindle taper

ISO50

Distance from   spindle to table (mm)

60-460

Distance from   spindle axis to column guideway (mm)

325

Spindle speed   range (r. p. m)

60-1700 (12   ranks)

Swivel angle   of vertical milling head

±45o

Table size   (mm)

1250×360

Table travel

600/300/400

Range of   Longitudinal cross travel (mm/min)

(8 ranks)   30-740 rapid 1080

Z speed of   table (mm/min)

590

T-slot of   table (number-width-length)

3/18/80

Main motor(KW)

4

Motor for   rapid device of table (X, Y) (KW)

0.75

Motor for   vertical device of table (Z)

0.75

Cooling pump   motor power

0.09

Cooling pump   flow

25 L/M

Overall   dimensions (mm)

1700×1680×1880

Net   Weight/Gross Weight

2200/2300




Product Tags: Vertical milling machine , Upright milling machine , Knee-type milling machine
