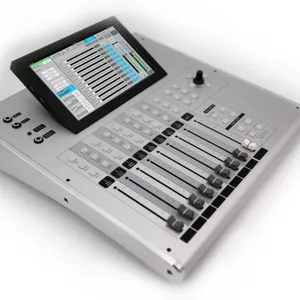

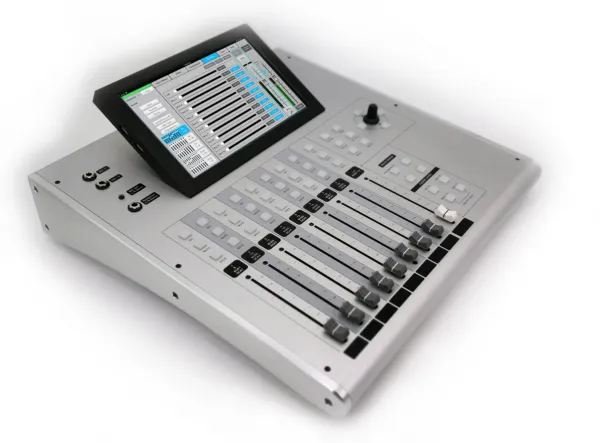

Help Center16 Mic/Line Digital Mixers With Touch Panel Operation
Related Products
-
Digital Mixer With 7”Touch Control PanelNegotiableMOQ: 1 Piece -
Frame Type Wi-fi Controls Multiscreen Synchronous Digital MixerNegotiableMOQ: 1 Piece
-
Mini Mixer With 4/7 ChannelsNegotiableMOQ: 1 Piece
-
8 Channels Mixer With Amplifier 500W*2NegotiableMOQ: 1 Piece
-
8 Channels Mixer With Amplifier 700W*2NegotiableMOQ: 1 Piece
Professional interface
With innovative design and powerful DSP function, the digital tuning platform integrates the digital tuning system effectively, bringing professional functional experience to users.
Everything you'd expect from a top-of-the-line digital tuner, combined with our powerful DSP technology, its powerful capabilities, and far superior audio performance among its peers.
Upgrading or replacing from analog to digital is one of your best choices.
Preamplifier
16 analog input, has 16 with digital channel gain words, smooth 1 db step gain control, signal by the high performance low latency 24 analog to digital converter, tiny distortion and low background noise, more adjustable parameters, a simulated mixer cannot ratio, such as digital gain good consistency, and effectively prevent wrong operation.
Mixing speed
With great processing power and advanced features, you still need to quickly tune out the mixer interface and adjust it in time.Once you start using our mixers, you can feel the convenience and speed of our software operation process.Convenient and fast operation experience, so that all people can enjoy the convenience and powerful function of digital tuning table.
Touch control
The 1280x800 true-color resistance touch screen, its special keys and digital encoder constitute the operation panel, which can be set up quickly and conveniently.The friendly software interface and clear navigation design can understand the operation without consulting the manual. The special buttons and screen navigation buttons will guide you to various functional modules quickly.Such as level meter, PEQ, Limiter, USB audio playback, scene storage, system Settings, etc.
Chinese and English operation interface - to simplify
Era of information explosion, the description has become the past type, the emergence of Chinese and English interface, can be completely ignored the instructions, quick learning operation directly, greatly reduce to the user's language requirement, reduce the application of the threshold of the employment unit personnel.
9 100mm electric thrusters
Electric clipper as standard configuration of digital mixer in a compact space can real-time control all of the channel and the main output, a LR main channel pusher, eight channel pusher, there are four pusher layer, convenient and fast switching, quick look at the volume status.
4 built-in effects
In the field of singing and performing, the built-in effectors can simplify the system wiring and have two classical reverberation and two modulator effect modules.FX sound effects can be returned to the mix using a dedicated return channel, without using mono and stereo input channels.
100 scenarios are stored
Scene storage is one of the most useful and significant functions that distinguishes it from an analog tuner. It can store 100 complete scenarios and can be invoked when needed.All scenarios can be exported to an external USB backup.
PEQ scenario
PEQ scene storage model for a single input channel, your best in training before the show, can be stored in the system, can call on any of the input channels, such as singer, Musical Instruments in debugging before the performance.
USB playback and recording
It can play Chinese and English songs in USB electronic disk, with functions of fast-forward, next song, and quick pause, which is very convenient for on-site operation.
Bluetooth play
Bluetooth function can expand your wireless phone, notebook computer, the music signal to digital mixer, without welding wire with considering simulation interface compatibility, greatly expanded the convenience of wireless access to music.
ARM processor +Linux system
Samsung 4418 quad-core 1.4G high-performance ARM processor, easy to drive touch screen display and interface, USB playback recording, 22 seconds fast start.Linux is stable, efficient, and virus-free, with better security.
Function is introduced
Lv 10 inch resistance touch screen resolution 1280x800
Eight hundred mm electric push
The expanded HDMI display shows a tuning interface
Switch at any time without restart
Built-in USB audio recording and playback function
Audio USB player can recognize Chinese song names
Built-in bluetooth wireless connection (mobile phone, iPad music access to the tuning platform)
The 16-channel independent feedback suppressor is built in
The integrated audio box manager
The third party control protocol TCP/IP, rs-232 control instructions
With 8 DCA
LCD touch screen full function control, real-time data synchronization
Optional WIFI hotspots
8 terminals are supported for simultaneous control
Four built-in effect module
The ARM and DSP firmware can be upgraded through the network or USB electronic disk
Each input channel has 8 segments of parameter equalization, noise gate, feedback suppressor, high and low pass, compression and inverting
Each output channel has 16 segments of parameter equalization, high and low pass, compression, inverting, and 1-second delay
C /R, 10BUS, REC(L/R), HeadPhone(L/R)
Select 10 BUS hybrid buses to select putter front and back (PRE/POST)
One hundred sets of scenario preset functions are supported, which can be exported and imported into USB memory for data backup
C / 100 PEQ mode storage
Built-in signal generator: sine wave, pink noise and white noise
The same channel can copy data quickly
C connection mode: balanced input and output cannon
Eight push subsets and eight mute subsets
The name of the channel can be customized.
Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃
