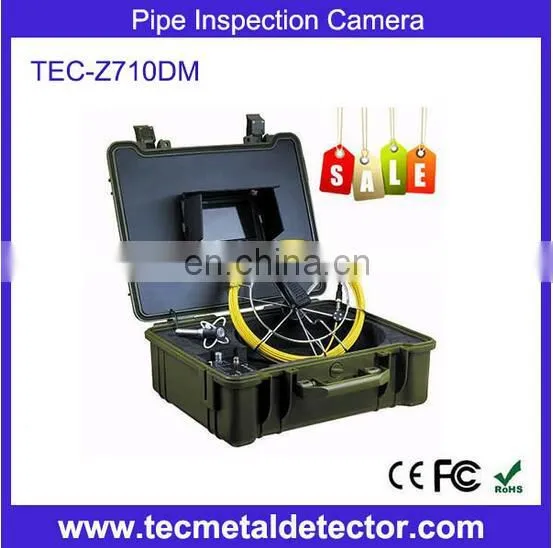

DVR 23mm camera Sewer pipe inspection camera TEC-Z710DM
Specification
camera
1. camera size:23mmx120mm front size:45mm
2.Camera case material:stainless steel house stainless steel 304
3. Camera glass material:sapphir glass
4. sensor size:1/4 inch
5.Total Pixels:PAL:720X576 NTSC: 720X480
6. view angle:120°.
7. camera light:12PCS white LEDS.
8. Special gold point touch connector
9. waterproof:IP68
10.camerawork current:100MA camara power supply:DC 12V
11. LEDS ADJUASTABLE.
12.Work temperature:-10°C-50°C
monitor
1. monitor size: 7inch TFT color monitor
2. monitor Total Pixels:1440X234
3. monitor power supply:DC 12V
4. osd language: english
5. up,down left,right adjustable.
6. 16:9 4:3 model
7. sunshade includ
8. waterproof connector
9. Work temperature:-10°C-50°C
DVR
1. DVR power supply: 12V
2. DVR work current: 200MA
3. storage medium:SD card (max 32G)
4. dagital clock and dagital calendar
5. DVR Total Pixels: 720X576 (D1)
6. picture snap and movie record
7. movie format: AVI
8. audio record (yes)
9. double earphone output
Audio input unit
1. micphone
2. clip type
Cable wheel
Cable size:320MM(diameter)X110(h)
Wire material: fiberglass rod
Fiberglass length:20M( standard)
Fiberglass diameter:4.8MM
Fiberglass color:yellow
Battery
Battey pype: 12V 4000MAH rechargable li –ion battery(18650)
Tatal work time : more 7 hours.
Charger
input: AC90-260V output: DC 12V 1000MA
Output cable length:1.5M
DC plug diameter :2.1MM
Box
box material:fire protection
Box size:48cm x 39cm x 19.5cm
SKIDS size
1. SKIDS1:material POM Φ40MM
2. SKIDS2:material POM Φ80MM
Weight and cartoon size
net weight: 7.5KG Single
gross weight:12KG Single
other parts
Aluminium box and ABS case for choice
Shipping:
1.By Worldwide Express:DHL,Fedex,EMS,UPS,TNT,etc
2.By air or by sea,if the goods weight over 45kg,then by these two ways are economical.
Why choose us?
The Service We Provide - We Take Care Of Your Order
Quality Control
1>All products must go through four checks before manufacture processing.
2> Full check after every individual process finished.
3>Full check after production half-done.
4>Spots check after production packaged before shipping.
Punctual delivery time:
1>We put your order into our tight production schedule, ensure your punctual delivery time.
2>Production / inspection report before your order packed.
3>Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
1>We respect your feed back after receive the goods.
2>We provide 12-24 months warranty after goods arrive.
3>We promise all spare parts available in lifetime use.
4>We lorge your complain within 48hours.
OEM Service
1> we accept all OEM service,if quantity is big,OEM is free of charge,if not,we will charge a little OEM Cost.
CE Certification
