50m Fiberglass Cable Underwater Inspection Camera With 512Hz Transmitter TEC-Z710DLK

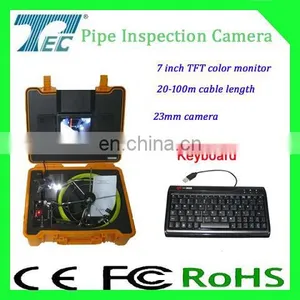

50m Fiberglass Cable Underwater Inspection Camera With 512Hz Transmitter TEC-Z710DLK thumbnail-1
50m Fiberglass Cable Underwater Inspection Camera With 512Hz Transmitter TEC-Z710DLK photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TEC
Model Number:
TEC-Z710DLK
Contact Supplier Request Quote Chat Now
Shenzhen Dongyihaoli Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TEC
Model Number TEC-Z710DLK
Type Other, Digital Camera, Video Camera
Style Mini Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof







50m fiberglass cable underwater inspection camera with 512Hz transmitter TEC-Z710DLK







Product Description



Specification

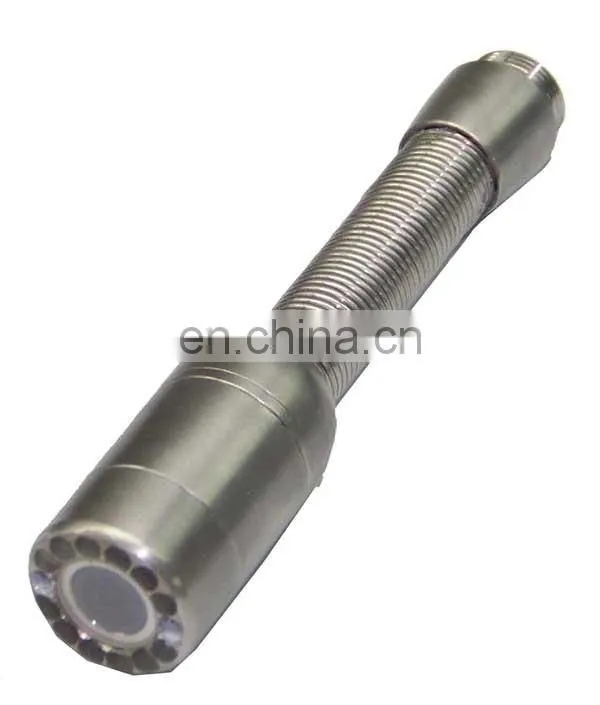

camera

 50m fiberglass cable underwater inspection camera with 512Hz transmitter TEC-Z710DLK







1. camera size: 23mmx140mm   front size:65mm

2.Camera case material: stainless steel house stainless steel 304

3. Camera glass material: sapphir glass

4. sensor size: 1/4 inch

5.Total Pixels: PAL: 720X576    NTSC: 720X480

6. view angle: 120°.

7. camera light: 12PCS white LEDS.

8. Special gold point touch connector

9. waterproof: IP68

10.camerawork current: 100MA      camara power supply:DC 12V

11. LEDS ADJUASTABLE.

12.Work temperature:-10°C-50°C





monitor

50m fiberglass cable underwater inspection camera with 512Hz transmitter TEC-Z710DLK

1. monitor size: 7inch  TFT color monitor

2. monitor Total Pixels:1440X234

3. monitor power supply:DC 12V

4. osd language: english

5. up,down  left,right adjustable.

6. 16:9  4:3 model

7. sunshade includ

8. waterproof connector

9. Work temperature:-10°C-50°C

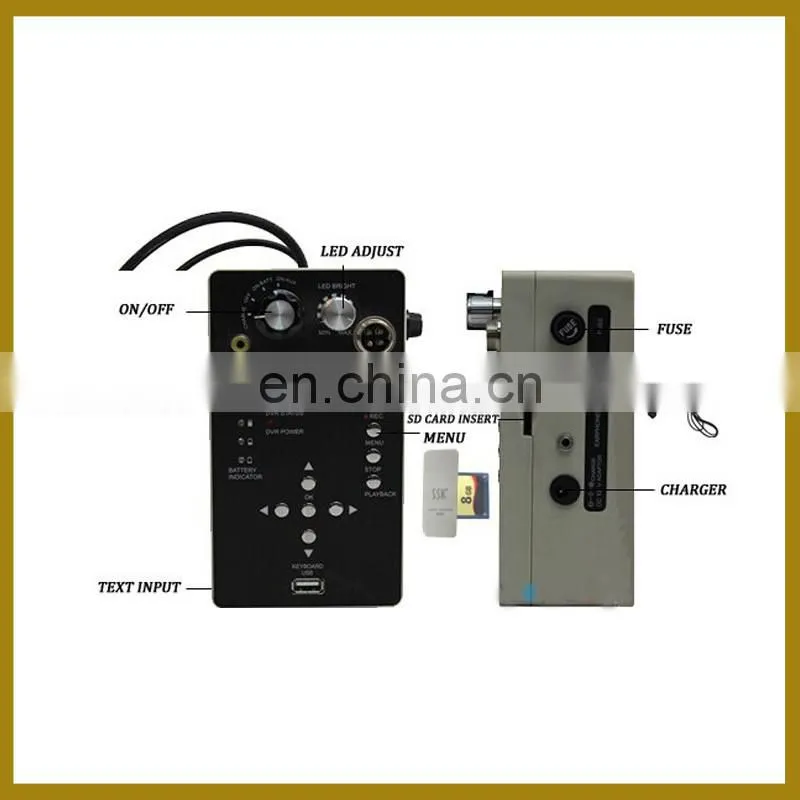

DVR



 50m fiberglass cable underwater inspection camera with 512Hz transmitter TEC-Z710DLK

1. DVR power supply: 12V

2. DVR work current:  200MA

3. storage medium:SD card (max 32G)

4. dagital clock and dagital calendar

5. DVR Total Pixels: 720X576   (D1)

6. picture snap and movie record

7. movie format: AVI

8. audio record (yes)

9. double earphone output



Audio input unit

1. micphone

2. clip type

512HZ FM transmitter

frequency: 512HZ

distance: 5M

modulation: FM

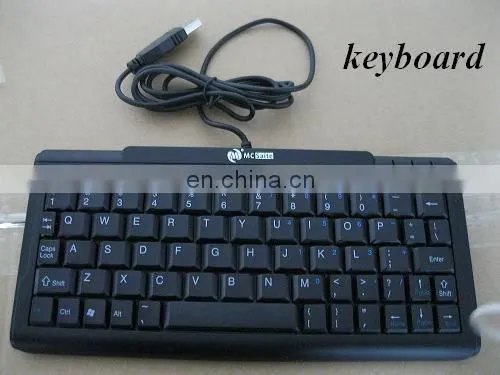

Keyboard







1. language: Englsih



2. keyboard interface 1   PS2keyboard



3. keyboard interface 2   USB keyboard(need USB to PS2 connector)

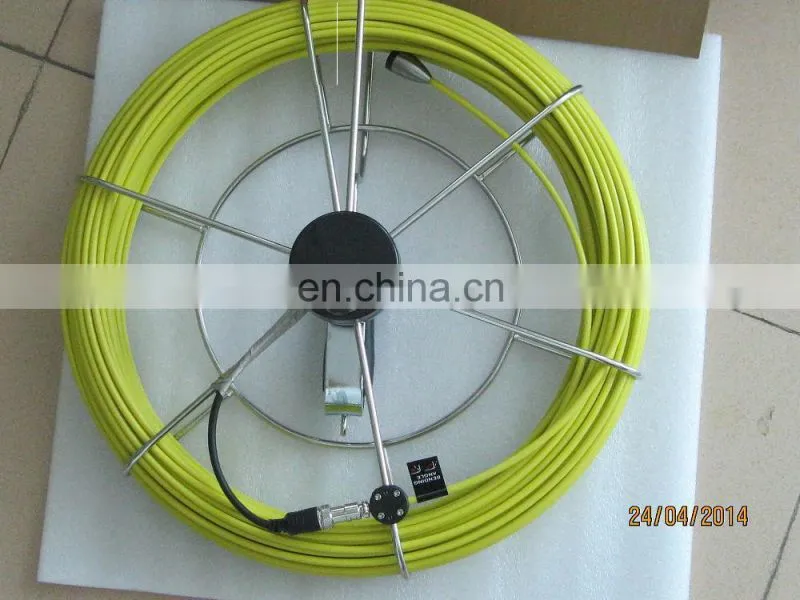

Cable wheel

50m fiberglass cable underwater inspection camera with 512Hz transmitter TEC-Z710DLK

Cable size:320MM(diameter)X110(h)

Wire material:fiberglass rod

Fiberglass length:20M( standard)

Fiberglass diameter:4.8MM

Fiberglass color:yellow



battery

Battery pype:  12V 4000MAH     rechargable li –ion battery(18650)

Used time : 7  hours.



charger

input: AC90-260V        output: DC 12V    1000MA

Output cable length:1.5M

DC plug diameter :2.1MM



box

box material:fire protection

Box size:48cm x 39cm x 19.5cm



SKIDS size

1. SKIDS1: Φ40MM

2. SKIDS2 :Φ80MM



Weight

net weight:7.5KG

gross weight: 12KG



 50m fiberglass cable underwater inspection camera with 512Hz transmitter TEC-Z710DLK



Packaging & Shipping





Shipping:



1.By Express:DHL,Fedex,UPS,EMS,TNT,Aramex,etc

50m fiberglass cable underwater inspection camera with 512Hz transmitter TEC-Z710DLK



2.By Air or Sea(in large quantities)

50m fiberglass cable underwater inspection camera with 512Hz transmitter TEC-Z710DLK50m fiberglass cable underwater inspection camera with 512Hz transmitter TEC-Z710DLK

Our Services



Trade terms for order:

(1) Payment: T/T , 30% deposits before production, 70% balance to be paid before

delivering Western Union or Money gram are  welcomed

(2) Product can be delivered in 3-7 working days after payment
(3) Shipping freight are quoted under your requests
(4) Shipping port: Shenzhen, Mainland China
(5) Discounts are offered based on order quantities
(6) MOQ:1pc
