Product Description:

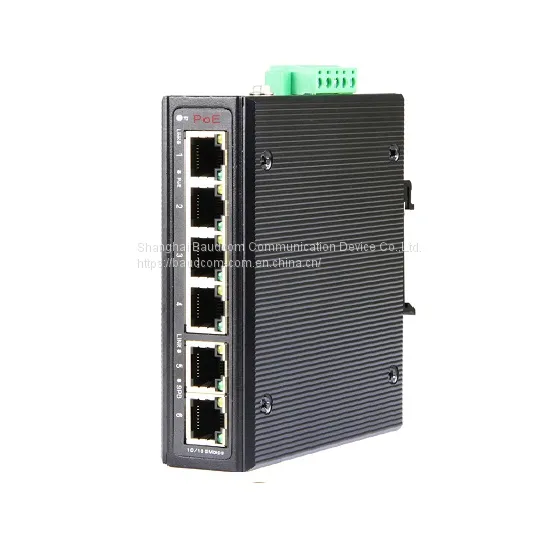

BD-IPS31064P product components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch, plus standard DIN-35 rail type installation method. Power input also chooses a suitable industry-standard types of power, to get more powerful suitability to environment.
It has 4x 10/100M POE ports, 2x 10/100M adaptive Ports, for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP, wireless AP and other PoE supported devices. It simply connects remote multiple motherboard servers, relays, hubs, terminals and multiple terminals.
Features:
◆4x 10/100M POE Ports, 2x 10/100M adaptive Ports
◆Power ports support both IEEE802.3af and IEEE802.3at standard PoE power supply
◆Support IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
◆Auto-Negotiation for Full-duplex Mode and Half-duplex Mode
◆LED indicators
◆Provides rail-type installation method
◆Electromagnetic compatibility of up to 4 grade standard
◆IP40 protection class
◆Superior performance, successfully used in industrial field
◆Default PoE power supply type is end-span, mid-span optional.
Technical Specifications
Product Name |
6-Port 10/100M Industrial POE Switch |
Product Model |
BD-IPS31064P |
Interface |
4x 10/100M POE Ports, 2x 10/100M adaptive Ports |
PoE Specification |
PoE Standard: Supports both IEEE802.3af and IEEE802.3at |
|
Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | |
4 PoE port auto detect af/at devices | |
Power Pin Assignment:1/2+;3/6- | |
Forwarding Mode |
Store-and-forward |
Performance Specification |
Bandwidth: 1.6Gbps SRAM Buffer: 448Kbits |
|
Standards Compliance
|
IEEE802.1P IEEE802.1q IEEE802.3az IEEE802.3af IEEE802.3at |
LED Indicators |
POE Port: Link/Act, POE RJ45 Port:Link/Act, SPD |
Power |
5.08mm 5-pin industrial terminal block Input voltage:DC48~57V |
Product Size |
W×D×H: 119x105x30mm |
Working Environment |
Working Temperature: -40～85℃ Working Humidity: 5%～95%（non-condensing） |
Radiation |
CE mark, commercial |
Safety |
CE Mark, commercial |
Warranty |
5 years warranty |
Product Ordering Information:
Product Model |
BD-IPS31064P |
Product Description |
6-Port 10/100M Industrial POE Switch, 4x 10/100M POE Ports, 2x 10/100M adaptive Ports. Support POE power supply. Support Standard IEEE802.3at/af. Support Provides rail-type installation method |
Product Packing Lists:
Package List |
6-Port 10/100M Industrial POE Switch (BD-SIPS31064P) |
52V DC Power Adapter | |
User Guide | |
Warranty Card |
