Home > Instruments & Meters > Test Instrument > Test Machine > BJ-86-3A Point Combustible Gas Detector

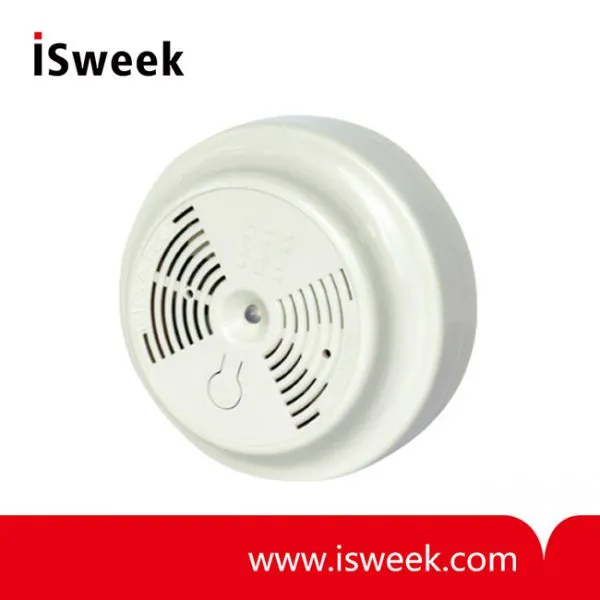

BJ-86-3A Point Combustible Gas Detector
US$ 0.01 - 0.1
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Figaro
Place of Origin:
China
Model Number:
BJ-86-3A
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BJ-62-1A Stand-combustible Gas DetectorUS$ 0.001 - 0.01MOQ: 1 Piece -
BJ-93D Stand-combustible Gas DetectorUS$ 0.001 - 0.01MOQ: 1 Piece
-
F2000TSM-CO2-S/L Carbon Dioxide (CO2) Gas DetectorUS$ 0.001 - 0.01MOQ: 1 Piece
-
TC-BO3-3 Portable Combustible Gas DetectorUS$ 0.001 - 0.01MOQ: 1 Piece
-
AS330 Metal Oxide Sensor Management SystemNegotiableMOQ: 1 Piece
Brand Name
Figaro
Place of Origin
China
Model Number
BJ-86-3A
Point Combustible Gas Detector
BJ-86-3A Combustible Gas Detector Detection of gas:
Liquefied natural gas
Other
BJ-86-3A Combustible Gas Detector Technical Parameters
| Detection method |
FIGARO semiconductor gas sensor |
| Alarm concentration |
20% of the lower flammable limit or less (natural gas, liquefied petroleum gas) |
| Mating systems |
JK-S02-1 / JK-S02-2 JK-P06-1 / JK-S08 Other |
| Power source |
DC24V ± 15% |
| Power consumption |
2.5W or less |
| Alarm |
red light, the alarm sound over 70dB |
| Fault alarm |
(Gas sensor failure alarm fault) Yellow light |
| Alarm output |
Relay contact output (AC220V, DC 24V, MAX / A, ordering optional) |
| Output delay |
20 seconds (± 5 seconds) alarm output (according to user requirements change) |
| Connection controller |
JK-S02-1; JK-S02-2; JK-P06-1; JK-S08; other |
| Temperature |
-10 ~ 55°C |
| Size & Weight |
φ104 x H45mm, about 200g |
| Subsidiary products |
Screw two, up tube 2 |
| Executive Standard |
GB15322 |
