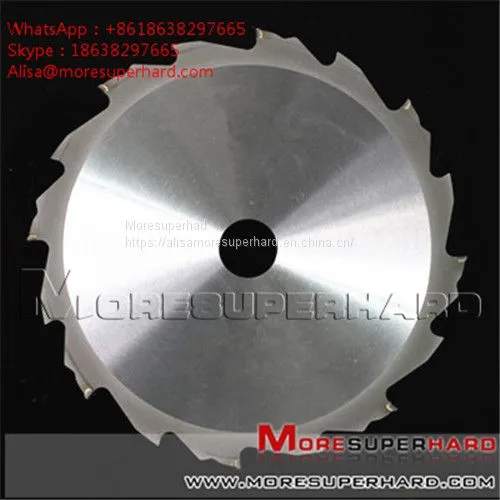

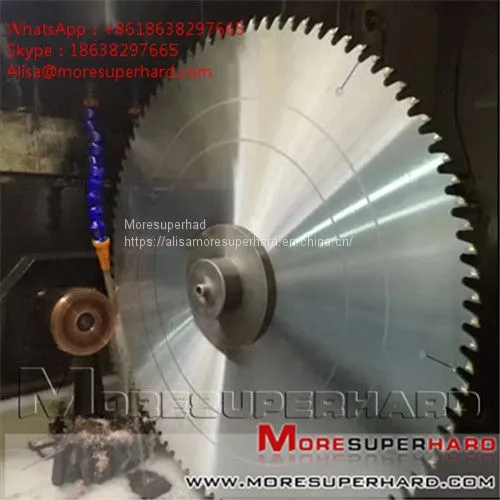

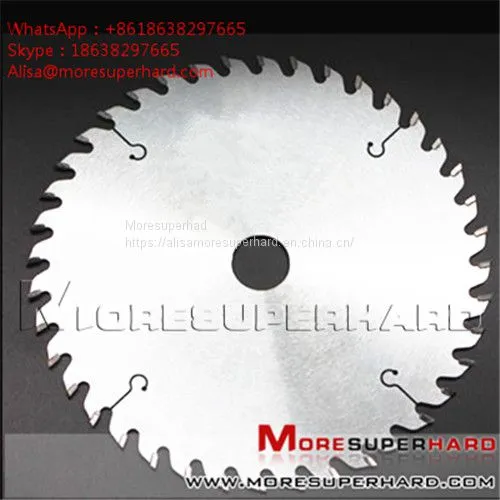

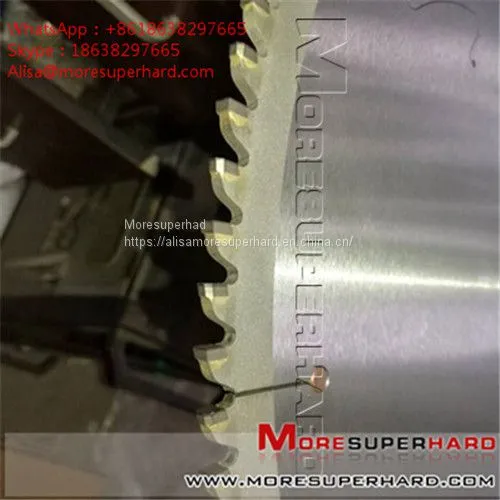

What is PCD diamond saw blade?
1: A diamond saw blade is a cutting tool that is mainly welded by pcd diamond tips and a base body.
PCD composite diamond saw blades have become the hardest material cutting tools and have become the cutting edge of woodworking dry cutting tools.
2: Diamond saw blade, Vickers-hardness 10000HV, strong acid resistance, hard to passivate edge, good quality of one-time processing of wood, high wear-resistance, 30 times more wear-resistant than carbide, for particleboard, MDF, wood flooring, stickers. The continuous processing time for panel cutting and machining can reach 300 to 400 hours, and the maximum use-to-use scrap time can reach 4000 hours/piece.
Details：
The PCD saw blade is used for cutting and grooving non-metallic materials, nonferrous materials, particleboard woodworking industry and ultra precision processing industry.
Application of PCD circular saw blade:
1.Wood working industry.Wood Flooring, Particle Board, MDF, Panel Furniture, Cabinet, Firewood, Plywood, Melamine Plywood
2.Non- metallic materials. fiberglass, electronic circuit boards, Bakelite, fibre cement board, acrylic board, plexiglass, rigid plastic
3.Ultra precision processing industry. Aluminum, copper rod, engine cylinder, etc.
Advantages of PCD saw blade:
1.PCD circular saw blade tipped with high strength, not easy to collapse teeth, good sharpness
2.PCD blade’s Sawing end face does not collapse edge, not become black, straight edge angle is good, can improve the appearance of the product quality.
3.The PCD saw blade’s working life is 30-50 times more than carbide saw blades
The table below provides a comparison of the economic indicators between PCD circular saw blades and cemented carbide.
Pcd circular saw blade |
Carbide saw blade |
|
hardness |
10000 HV |
1200 HV |
Wear resistance |
50-150 times |
1 times |
Continuous cutting time |
300-400 h |
2-5 h |
Maximum working time |
400 h/ piece |
40-70h/ piece |
Grade list of carbide saw tips :
Grade |
ISO Grade |
USA Grade |
Cobalt % |
Density g/cm3 |
Hardness HRA |
T.R.S N/mm2 |
Grain Size |
Cutting objective |
|
UF01 |
k01 |
C5 |
3% |
15 |
94 |
2500 |
Submicron |
MDF,HDF |
|
UF05 |
K05 |
C4 |
5% |
14.8 |
93 |
2600 |
Submicron |
MDF,Aluminum |
|
UF10 |
K10 |
C3 |
5% |
15 |
92 |
2300 |
Fine |
Hardwood,plastic, steel |
|
UF15 |
K10 |
C2 |
6% |
14.9 |
91 |
2200 |
Fine |
General wood,green wood,cast iron |
|
UF20 |
K20 |
C1 |
8% |
14.8 |
90.5 |
2400 |
Fine |
General wood,green wood,cast iron |
|
YG11C |
K30 |
11% |
14.4 |
87.5 |
2600 |
Medium |
General wood |
||
Some size list of standard specification :
Size |
L |
W |
T |
Recommend angel |
A |
||
8.0xWx2.5 |
8.0 |
W |
2.5 |
30° |
70° |
0° |
1.1 |
8.0xWx2.8 |
8.0 |
W |
2.8 |
30° |
70° |
0° |
1.1 |
8.0xWx3.0 |
8.0 |
W |
3.0 |
30° |
60° |
0° |
1.5 |
8.5xWx2.3 |
8.5 |
W |
2.3 |
25° |
70° |
0° |
0.9 |
8.5xWx2.5 |
8.5 |
W |
2.5 |
30° |
70° |
5° |
1.1 |
8.5xWx2.8 |
8.5 |
W |
2.5 |
30° |
70° |
0° |
1.1 |
8.5xWx3.0 |
8.5 |
W |
2.8 |
30° |
70° |
0° |
1.1 |
9.0xWx2.3 |
9.0 |
W |
3.0 |
30° |
70° |
0° |
1.1 |
9.0xWx2.5 |
9.0 |
W |
2.3 |
25° |
70° |
0° |
0.9 |
9.0xWx2.8 |
9.0 |
W |
2.5 |
30° |
70° |
0° |
1.1 |
9.0xWx3.0 |
9.0 |
W |
2.8 |
30° |
70° |
0° |
1.1 |
9.5xWx2.5 |
9.5 |
W |
3.0 |
30° |
70° |
0° |
1.1 |
9.5xWx2.8 |
9.5 |
W |
2.5 |
30° |
70° |
0° |
1.1 |
10.0xWx2.8 |
10.0 |
W |
2.8 |
30° |
70° |
0° |
1.1 |
10.0xWx3.0 |
10.0 |
W |
2.8 |
30° |
70° |
0° |
1.1 |
10.5xWx2.5 |
10.5 |
W |
3.0 |
30° |
60° |
0° |
1.1 |
Why choose our product
|
Our product’s advantages: 1.High grinding efficiency |
2.Wonderful edge quality |
3.Long service life |
4.High polishing efficiency |
5.Large Exports |
6.Considerable after-sell service |
7.Amazing performance |
8.Various types and sizes available |
9.Direct Factory Manufacturer |
10.Backing/substrate material: Aluminum |
11.Abrasive layer: diamond |
12.Bond: vitrified |
13.Excellent cutting edges |
14.Reduced cycle times |
15.Custom Engineered |
