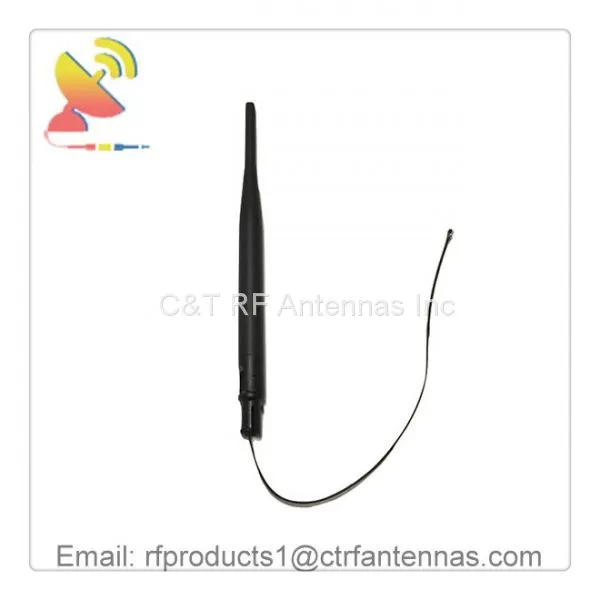

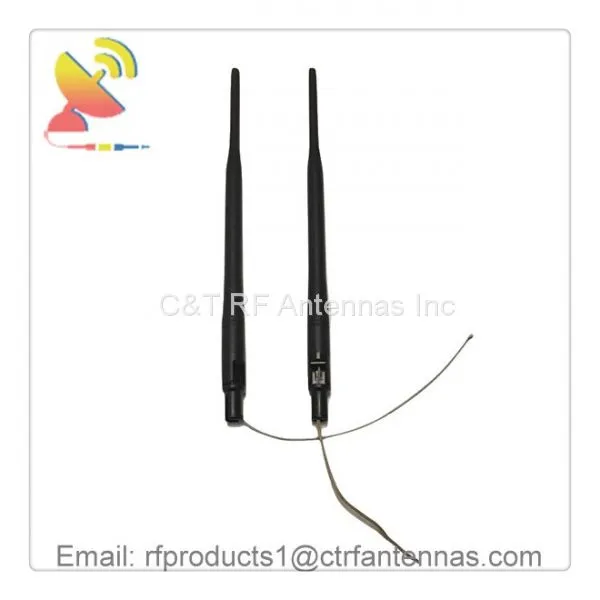

5dBi gain Wifi dipole antenna omnidirectional rubber duck antenna 2.4GHz wifi antenna with a pigtail cable extender
This dipole rubber duck Wifi 2.4GHz antenna is supplied by C&T RF Antennas Inc.
Electrical specifications:
Electrical specifications | |
Frequency Range(MHz) |
2400-2483MHz, |
Polarization |
Vertical |
Impedance |
50 Ohms |
Peak Gain (dBi) |
4 dBi |
Radiation |
Omnidirectional |
Horizontal Beam Width |
360º |
Vertical Beam Width |
14º |
VSWR |
≤1.5 |
Maximum input power (W) |
50 |
Lighting Protection |
DC Ground |
Mechanical specifications | |
Connector |
U, FL / Ipex or custom |
Connector position |
Terminals |
Size |
10x152mm |
Mounting Way |
Screw |
Material |
Plastic ABS+ PC |
Waterproof Grade |
IP65 |
Cable |
RG1.13 cable 80mm or customized |
Operating temperature (℃) |
-40~65 |
Working temperature (℃) |
-40~60 |
Welcome to send your BOM list for our quotation.
Wireless Application Solutions
The C&T RF antennas Inc provides extensive experience in antenna technologies from concept-to-completion. Ready-To-Use RF Antennas are compact, high performing and available in multiple form factors for all common antenna protocols and frequencies used in IoT, automotive, industrial and medical applications.
2.4G wifi antenna applications:
2.4G WLAN system
Wi-Fi telecommunication system
Point-to-multipoint applications
Wireless LAN
2.4G WLAN system
IEE802.11
Data Transmission
Wireless AP/adapter/bridge/UAV Drone/Robotic etc
The C&T RF Antennas Inc takes the green, environmental protection for the design concept. We are well-known domestic and foreign enterprises’ quality suppliers and committed to providing high-quality OEM/ODM services.
Our company has good production environment, advanced production types of equipment and testing types of equipment, perfect testing standards and quality management system. Companies adhering to the "customer first, forge ahead" business philosophy, adhere to the "customer first".
Warmly welcome customers come to negotiate, mutual benefit and common development!
Primary Competitive Advantages:
Experienced Staff
Green Product
Guarantee/Warranty
Price
Product Features
Product Performance Prompt Delivery
Quality Approvals Reputation
Service Small Orders Accepted
