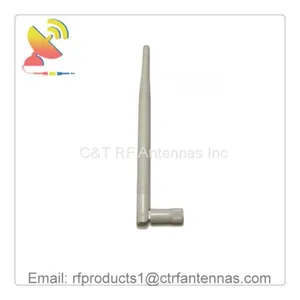

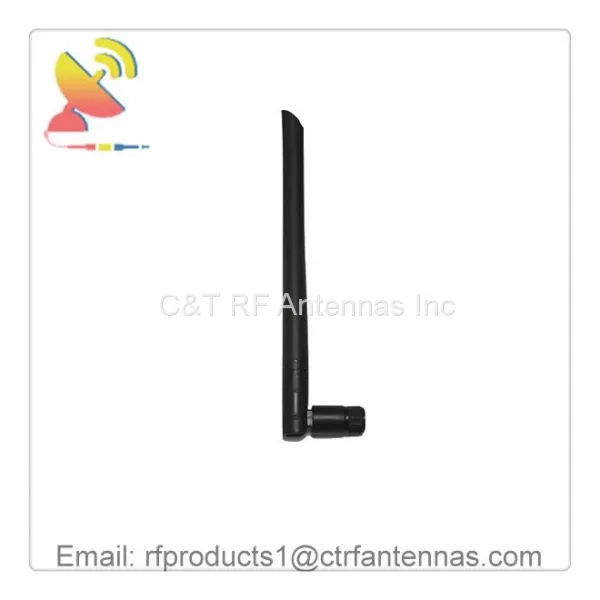

4G LTE antenna multi-band rubber duck style antenna indoor-outdoor Omni dipole antenna
This dipole rubber duck LTE 4GHz antenna is supplied by C&T RF Antennas Inc.
Electrical specifications:
Omnidirectional 4G LTE Rubber Duck Antenna Electrical specifications | |
Frequency Range(MHz) |
700-960MHz, 1710-2700MHz |
Polarization |
Vertical |
Impedance |
50 Ohms |
Peak Gain (dBi) |
5dBi |
Radiation |
Omnidirectional |
Horizontal Beam Width |
360º |
Vertical Beam Width |
14º |
VSWR |
≤1.5 |
Maximum input power (W) |
50 |
Lighting Protection |
DC Ground |
Mechanical specifications | |
Connector |
SMA Male or custom |
Connector position |
Terminals |
Size |
13x195mm |
Mounting Way |
Screw |
Material |
Plastic ABS+ PC |
Waterproof Grade |
IP65 |
Polarization |
Vertical |
Operating temperature (℃) |
-40~65 |
Working temperature (℃) |
-40~60 |
Welcome to send your BOM list for our quotation.
The demand for high-performance wireless access is driving the move to 4G/LTE networks. With LTE devices, there are two antenna ports for transmitting and receiving information enabling the high throughput that today’s connected devices require.
The C&T RF Antennas Inc has developed a range of antennas all with very high performance to meet the demands of LTE networks and devices. Using any of our off-the-shelf LTE antennas will future proof M2M devices for next-generation networks.
Applications:
• Long Term Evolution (LTE), more commonly marketed as 4G LTE, is an industry standard for wireless communication of high-speed data for mobile phones and data terminals.
• WiFi is a local area wireless network that allows an electronic device to connect to the internet using 2.4 GHz UHF and 5 GHz SHF radio waves.
• Code-Division Multiple Access (CDMA), a digital cellular technology that uses spread-spectrum techniques. This
• Time Division Multiple Access (TDMA), a technology for delivering digital wireless service using time-division multiplexing.
• Global System for Mobile Communications (GSM), one of the leading digital cellular systems. GSM uses narrowband TDMA, which allows eight simultaneous calls on the same radio frequency.
• General Packet Radio Service (GPRS), a standard for wireless communications which runs at speeds up to 115 kilobits per second.
The C&T RF Antennas Inc takes the green, environmental protection for the design concept. We are well-known domestic and foreign enterprises’ quality suppliers and committed to providing high-quality OEM/ODM services.
Our company has good production environment, advanced production types of equipment and testing types of equipment, perfect testing standards and quality management system. Companies adhering to the "customer first, forge ahead" business philosophy, adhere to the "customer first".
Warmly welcome customers come to negotiate, mutual benefit and common development!
Qualified and experienced R&D staff
● mechanical engineering
● electronics / RF engineering
● process engineering
New methods and procedures
High-level equipment and CAD-Systems
Easy data exchange system
Our service:
●8 years experience of C&T RF Antennas Inc. mainly manufactures outdoor antenna, indoor antenna, marine antenna, the base station antenna, and tv antenna products.
● Our sales will reply your inquiry within 24 working hours.
● Customized design is available, OEM is welcomed.
● Excellent after-sales service.
Tag: 4g wireless antenna, 4g wifi antenna, 4g with antenna,
