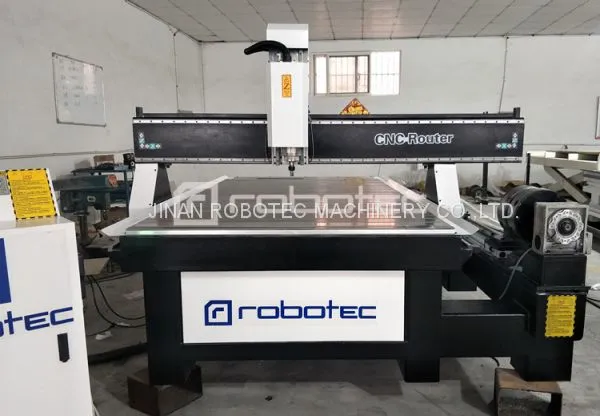

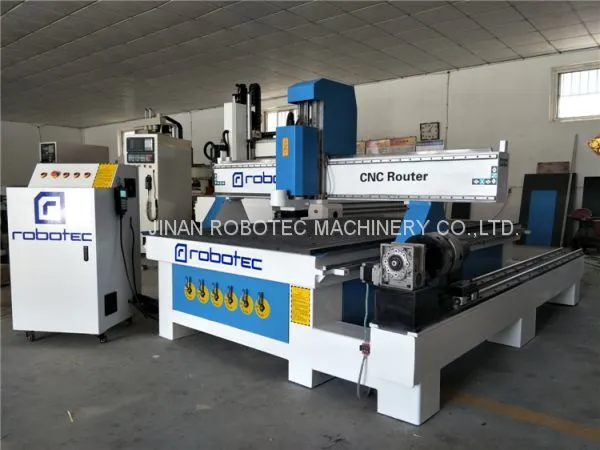

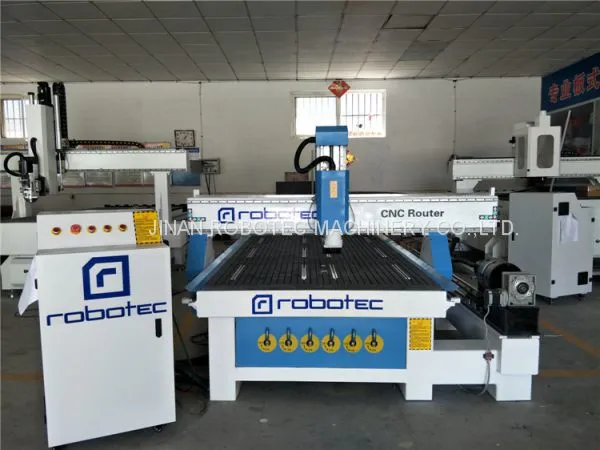

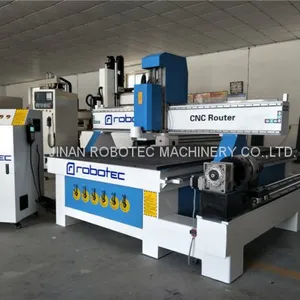

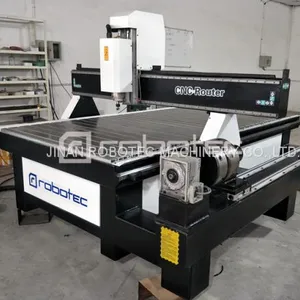

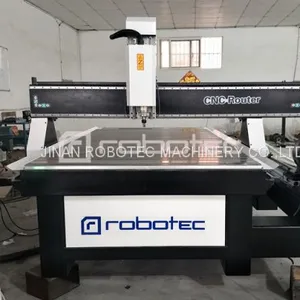

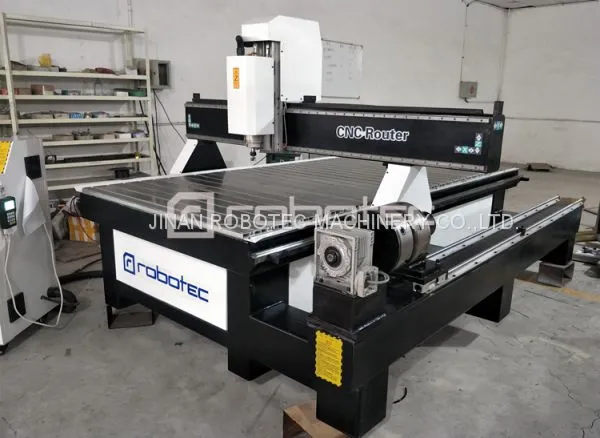

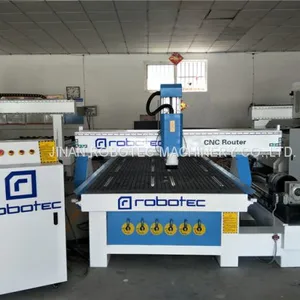

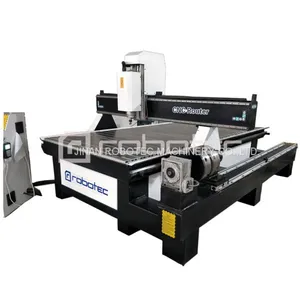

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router

Name: Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router
Brand: ROBOTEC
SKU: 159497693

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router thumbnail-1

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router thumbnail-2

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router thumbnail-3

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router thumbnail-4

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router thumbnail-5

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router photo-1

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router photo-2

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router photo-3

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router photo-4

Heavy Duty 3D Wood CNC Machine 4x8 Feet CNC Milling Machine With Rotary 4 Axis CNC Engraving Machine ATC Spindle CNC Router photo-5

US$ 5000 - 5500 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

ROBOTEC

Place of Origin:

China

Model Number:

1325BR

Contact Supplier Request Quote Chat Now

Jinan Robotec Machinery Co.,ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Brand Name ROBOTEC

Place of Origin China

Model Number 1325BR

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Warranty 2 years

Weight 1500KGS

Dimension(L*W*H) 1300*2500*200mm

Voltage 220V

Condition New

Power(W) 3.2KW

CNC or Not CNC

4 axis atc cnc router machine Features:

#Heavy duty machine body
#1300*2500*200mm XYZ effective working size

#4th rotary axis 200*2000MM
#Vacuum table with T-slot, 5.5kw water cooled vacuum pump for option
#3.2 KW water cooled spindle, 0-24000RPM
#Fuling Inverter
#Leadshine stepper motor and driver
#X Y axis Taiwan Hiwin square rail and bearings; Helical rack pinion
# Z axis Taiwan Hiwin square rail and bearings; TBI ball screw
#Mach3 control system, with hand wheel/DSP/Syntec
#ATC tool sensor
#Dust collector with ATC spindle hood
#Schneider electric components
#Auto lubrication

Option parts:

#Dust collector 3.0kw double bags

4 axis atc cnc router machine description:

Model	RT-1325BR
Working area (XYZ)	13002500200mm
Table size	175030501740mm
Body structure	Thicken steel made
X, Y Structure	Rack and pinion
rails	Taiwan 25 size hiwin square rails
Z Structure	Taiwan TBI ball screw
X, Y Resolution
Max Moving Speed	60000mm/min
Max Engraving Speed	30000mm/min
X,Y,Z traveling positioning accuracy	±0.01mm
X,Y,Z repositioning accuracy	±0.01mm
Spindle power	9.0kw ATC Air cooling spindle
Spindle Speed	0-24,000rpm
Voltage	380v/3phase or 220v
Drive type	servo motors and drivers
Working Dictate	G Code
Operating system	DSP B57
Tool sensor	Yes
Auto oil lubricator	Yes,included
Wire protect	Yes,included
Running Environment	Temperature: 0℃~45℃
package	Export wooden box
After packed size	330022001900mm
G.W	1500kgs

4 axis atc cnc router machine Standard Configuration:

1)Mach3 control system: Popular and easy operation, with USB port to transfer program;

2) 3.0kw ATC Air-cooling Spindle: Long working life, easy maintenance;

3)Servo Driving Motor: With highly control precision and high speed, reliable and stable;

4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality, realizing smooth movement;

5) Taiwan TBI ball screw: linear motion with high precision and and in high speed

6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.

7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;

4 axis atc cnc router machine applicable materials:

>>Applicable Material: Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

>>Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.
