Home > Manufacturing & Processing Machinery > Drilling Rig > Oilfield Drilling Rig > API Spec 7k Casing Power Tongs / TQ340/35Y Casing Power Tongs

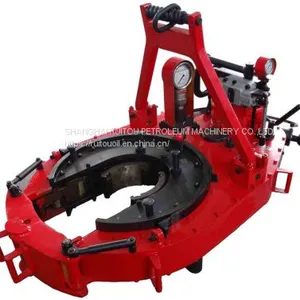

API Spec 7k Casing Power Tongs / TQ340/35Y Casing Power Tongs
US$ 10000 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Ruitou
Place of Origin:
China
Type:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API Spec 7k Casing Power Tongs /TQ178/16N/TQ340/35(Y)N Casing Power TongsUS$ 10000 - 100000MOQ: 1 Set -
API Spec 7k Casing Power Tongs /TQ178/16 Casing Power TongsUS$ 10000 - 100000MOQ: 1 Set
-
API Spec 7k Casing Power Tongs / TQ508/70Y Casing Power TongsUS$ 10000 - 100000MOQ: 1 Set
-
API Specification 7K /Power Tongs/ZQ125-DS-C Hydraulic SuspenderUS$ 10000 - 100000MOQ: 1 Set
-
API Specification 7K /Power Tongs/ZQ125-DS-2Hydraulic SuspenderUS$ 10000 - 100000MOQ: 1 Set
Brand Name
Ruitou
Place of Origin
China
Type
Other
Certification
API 7K , ISO 9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1
Weight
Specification
Dimension(L*W*H)
Specification
Power Type
Electric
Voltage
Specification
Condition
New
TQ340/35Y Casing Power Tongs
Brief introduction :
| Model | TQ340/35Y | ||
| Drive Mode | Hydraulic Drive | ||
| Applicable Casing Diameter | mm | 101.6～340 | |
| in | 4～13-3/8 | ||
| Normal Pressure | MPa | 12～18 | |
| psi | 1740～2610 | ||
| Rated Flow | L/min | 114 | |
| gpm | 30 | ||
| Max. Torque | High gea | KN·m | 4～5.5 |
| lbf·ft | 2950～4056 | ||
| Low gear | KN·m | 27～35 | |
| lbf·ft | 19910～25800 | ||
| Rotational Speed of Tongs Head |
High gea | rpm | 60～86 |
| Low gear | rpm | 2.6～5.3 | |
| External Dimensions | mm | 1560×900×860 | |
| in | 61.4×36×34 | ||
| Weight | kg | 760 | |
| lb | 1670 | ||
