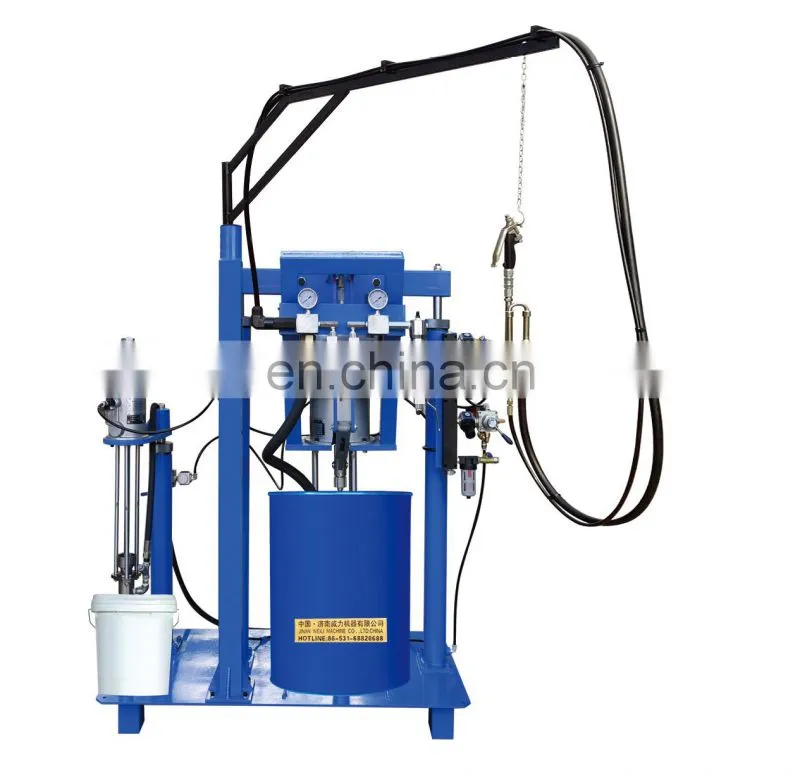

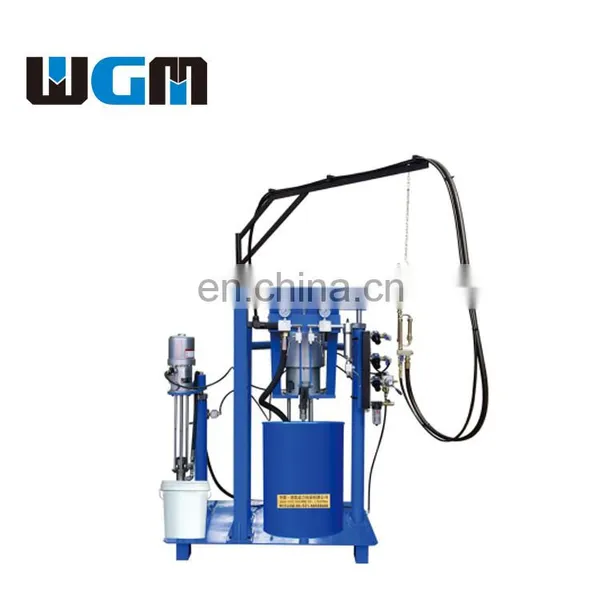

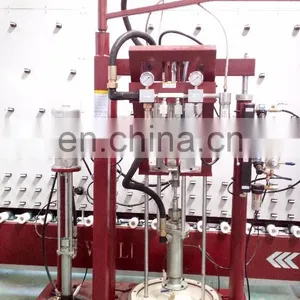

Double Glazing Making Machine-ST06 Manual Silicone Sealant Spreading Machine
Main Features
1. The machine’s main parts (including A and B component glue pump, gelatinize gun and safety valve) are imported from Korea, or made of high-tension and high-quality stainless steel with thermal treatment, the reliability and durability of the machine is greatly improved.
2. The machine’s curing agent system is fully closed, which can prevent the agent from exposing to air and getting solidified.
3. Steady glue extruding and high mixing effect. The system is also equipped with a protection device for overloading, which makes it to be more safety for operation.
4. The A and B glue pumps and proportional pump’s high pressure valve are made of special leak-free alloy.
5. The special and convenient mix device ensure the high precise mixture performance.
6. The internationally prevailing stationary reciprocating mixer is used in the machine, with the specially designed needle valve, the mixture result is excellent. The special material with elasticity is used to make the dispensing nozzle, the production of insulating glass is more convenient, simple and elegant.
7. Imported glue gun,gives a reliable sealing.
8. The machine can be used to spread two-component polysulphide glue or silicone glue.
Main technical parameter
Mix ratio |
6:1~14:1 changeable |
Max. amount of extruded glue |
4L/min |
Pump A platen diameter |
55 gallon(200L) φ565mm |
Pump B platen diameter |
5 gallon (20L) φ285mm |
Max. air consumption |
0.8 CBM/min |
Max. extruding pressure |
19Mpa |
Air supply |
0.5~0.8Mpa |
Overall dimensions |
1100 x 950 x 2500mm |

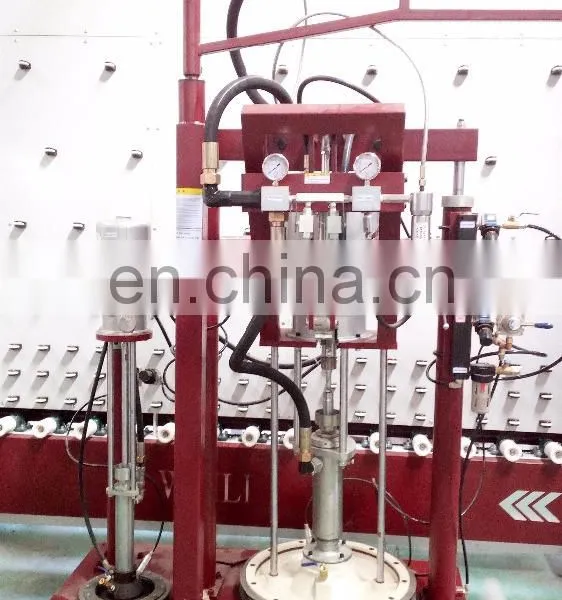

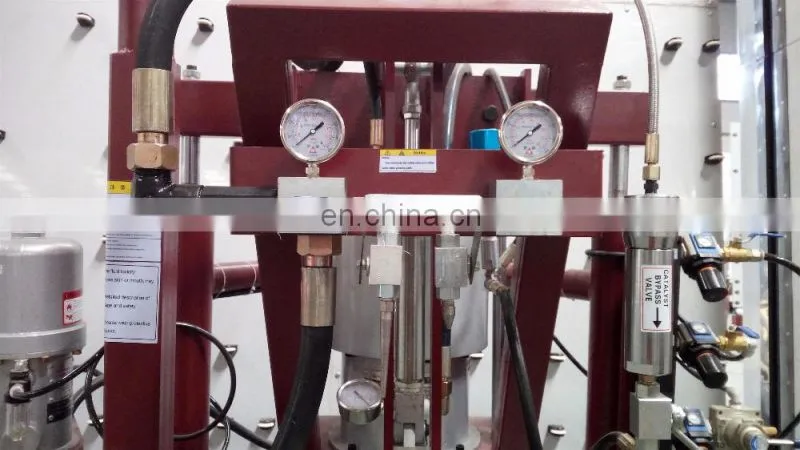

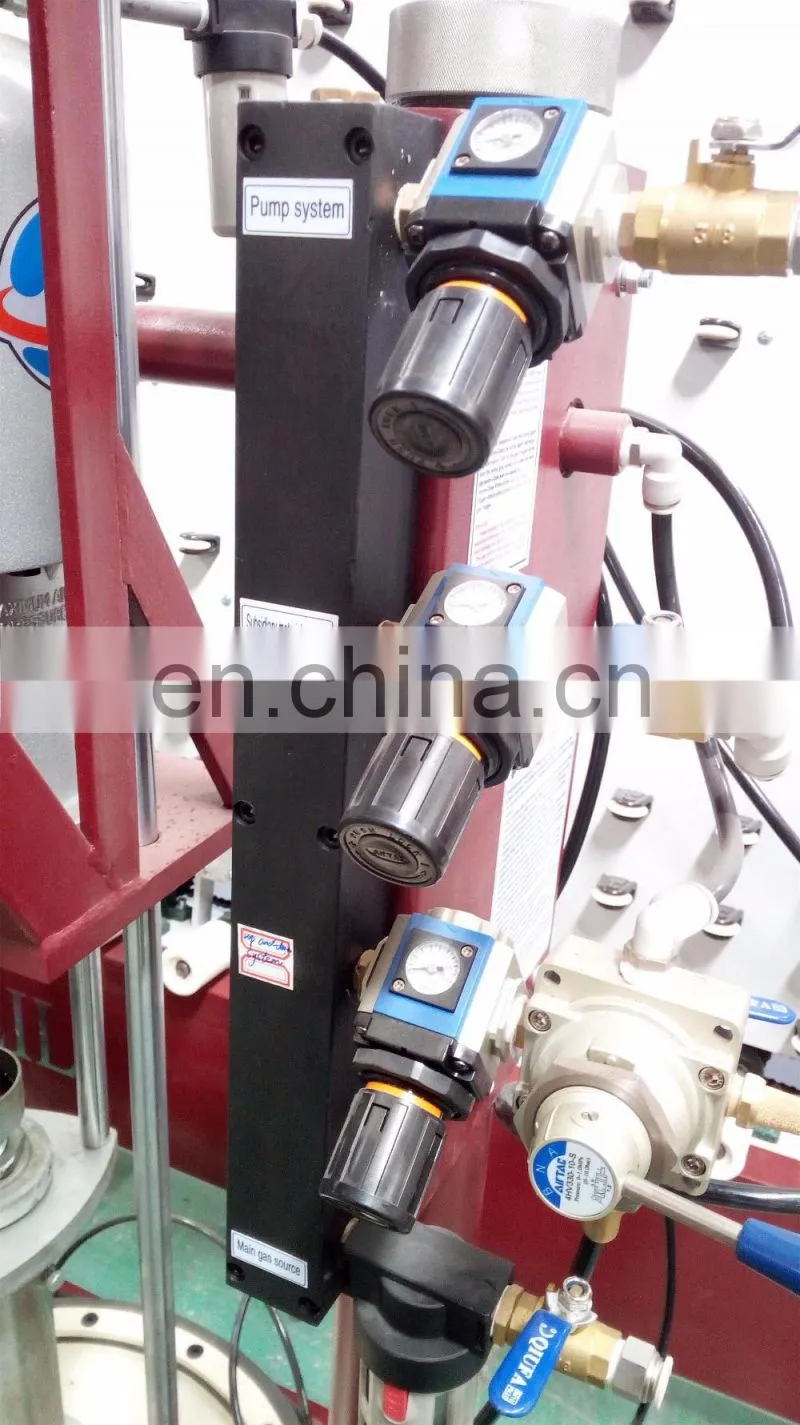

Detail pictures

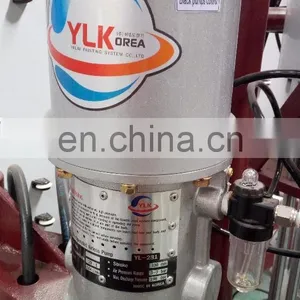

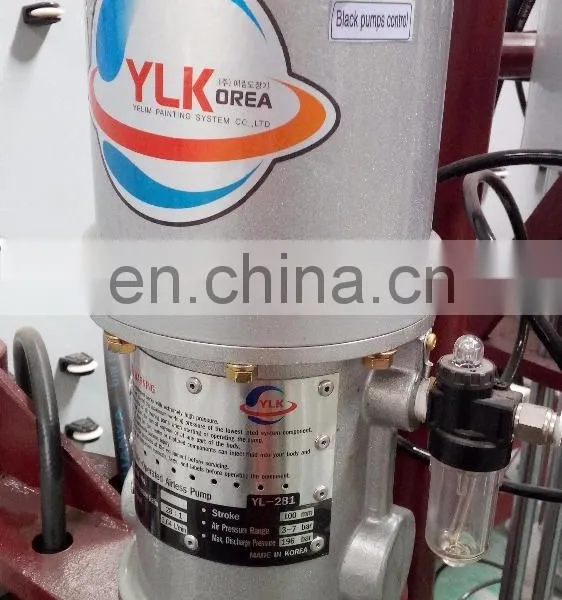

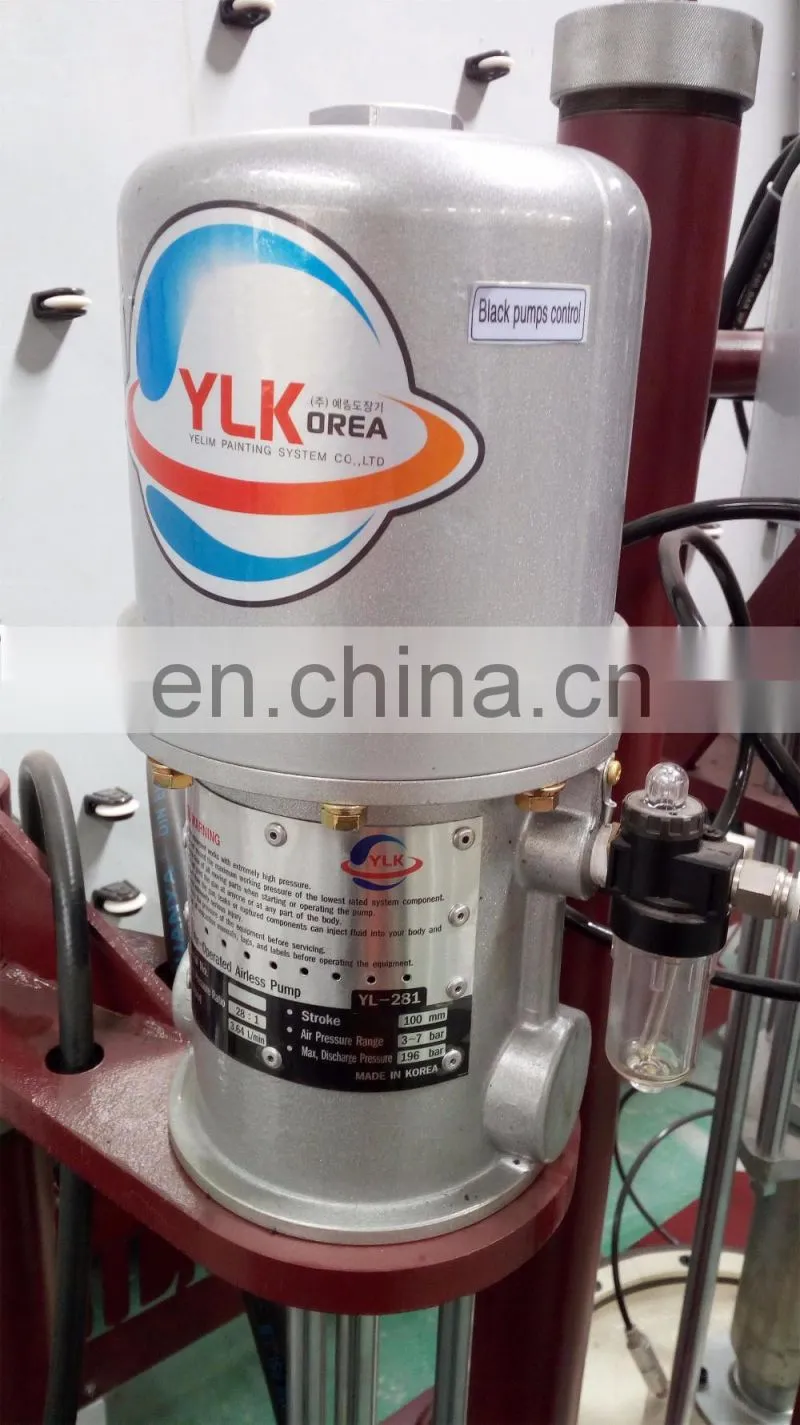

Air motor from Korea.

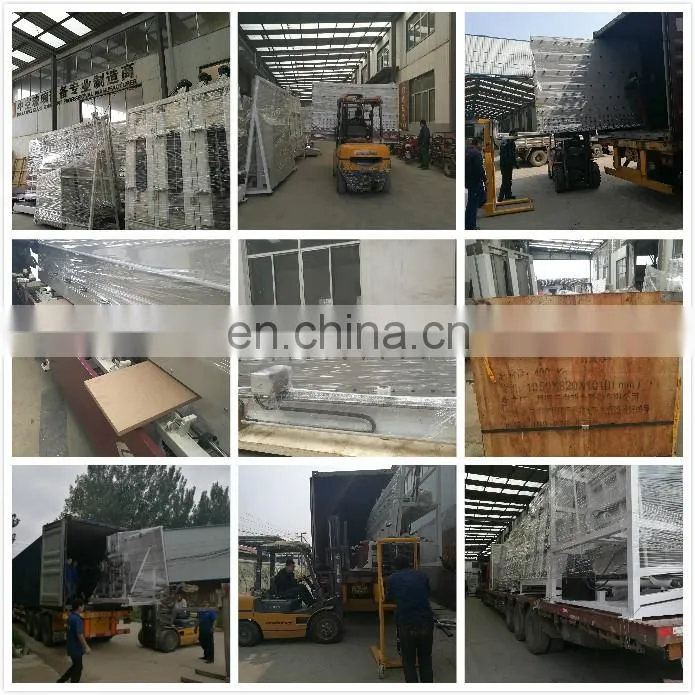

plywood pallet and plastic film
Installation: If the buyer needs, the seller will send one or two technicians (one is electrical engineer, one is mechanical engineer) to install the machines and help train the workers.
Warranty time: Usually one year. It is negotiable.
Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Based on the operating mode:”Professional, Meticulous, High, Top” ,our company has grown up to the leader of equipment line. It makes effort to create respected brand name by all glass industries.
Constantly making innovations, Capturing high technology, prompting the total level of industry, then to make Chinese mature and high technology insulating glass equipment for international, and accepted by international users. That is the Weili people working’s goal and responsibility.
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 16 years history since 2001.
2.Question: How about the service ?
Answer:
1).Reply it at once in WhatsAPP,if by email,it will be reply within 12 hours.
2).18 hours for after-sale serive
4).more than 15 years experience in this kind machine field
5).fluent english ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What’s the guarantee ?
Answer:
1). Our guarantee for 18 months.
2). 18 hours’ technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. We can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:What if our price is higher than others company or factories ?
Answer:
1) We are a innovative enterprises. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our machines.
2) Compared with the same first-level brand, we have the same functions and good brand component
