Insulating Glass Making Machine Window Glass Making Machine
US$ 17,410 - 21,278
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WEILI
Place of Origin:
Shandong, China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Glazing Glass -- WLXP2000 Automatic Insulating Glass Unloading Machine Insulating Glass Making MachineUS$ 16,700 - 18,200MOQ: 1 Set -
Factory Sales2500mm Automatic Insulating Glass Sealing RobotUS$ 61,672 - 75,376MOQ: 1 Set
-
High Quality Straight Edge Polishing Machine for GlassUS$ 1,000 - 1,200MOQ: 1 Set
-
Glass Straight Edge Polishing Machine With Easy OperationUS$ 1,000 - 1,200MOQ: 1 Set
-
Insulating Glass Machinery /glass Washing and Assembly LineUS$ 17,410 - 21,278MOQ: 1 Set
Brand Name
WEILI
Place of Origin
Shandong, China
Certification
CE
Warranty
1 Year
Weight
7000kg
Dimension(L*W*H)
18100*2500*2850mm
Production Capacity
15sets/month
Condition
New
Voltage
380V
Power(W)
19.5KW

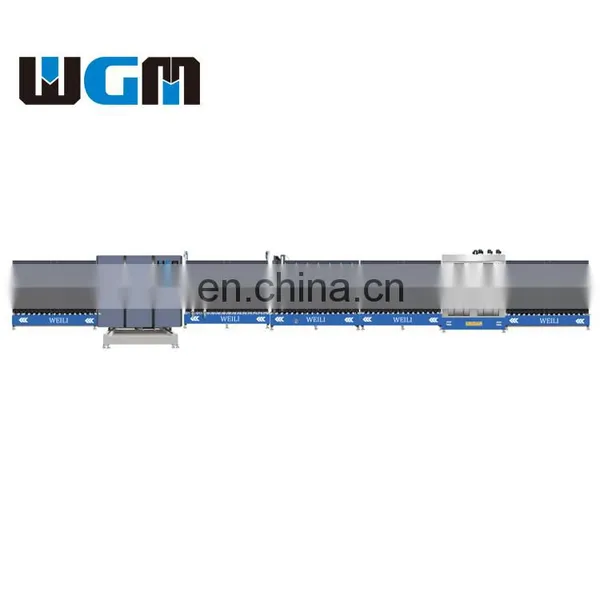

Double Glazing Machine---LBW1800PB insulating glass production line
Main Feature:
- The whole line adopts PLC to control the working condition, 7.0 inch color touch screen makes the operation more direct and easy.
- Processing double double glazing, triple glazing, abnormal shaped glass (with a right-angle), curtain wall glass, LOW-E glass and so on.
- Adopts stepless frequency conversion to adjust the speed.
- The whole line has two kinds of operating mode: manual operation and automatic operation.
- Adopts automatic LOW-E glass identefying system
- Glass washing and drying section are made of stainless steel. Three pairs of brushes and one pair of sponge roller guarantee the quality of glass washing.
- The rhombic air knife is made by CNC bending, makes the drying more convenient.
- The pressing section is driven by hydraulic system. Two retainers effectively prevent the slide of the glass. Two press board can be opened to 450mm, convenient to maintain.
- The material of board for this machine is high density board, moisture proof, hard to distort.
Main Technique
Power Supply |
380V 50Hz |
Total Power |
23.21/22.75Kw |
Cleanout Speed |
2--12m/min |
Max. Work Speed |
48m/min |
Min. Glass Size |
280*450mm |
Max. Glass Size |
2500*1800/1600*2000mm |
Max Insulating Glass Thickness |
40mm |
Air Consumption |
800L/min |
Dimension |
16290*2500*2890/15180*2200*2730mm |
Total Weight |
5500/5000kg |
Product Description

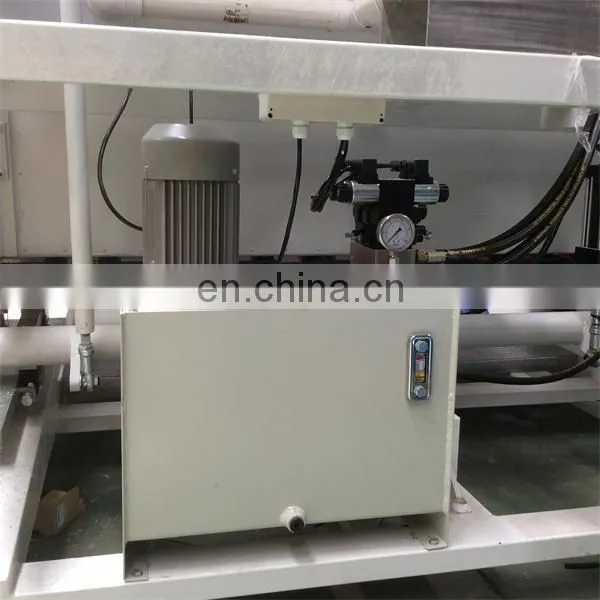

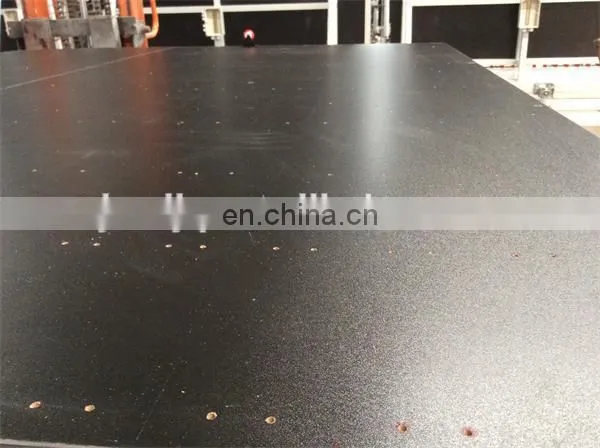

flat and smooth board hydraulic station to drive press
