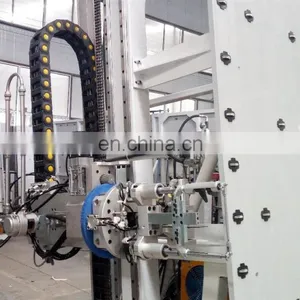

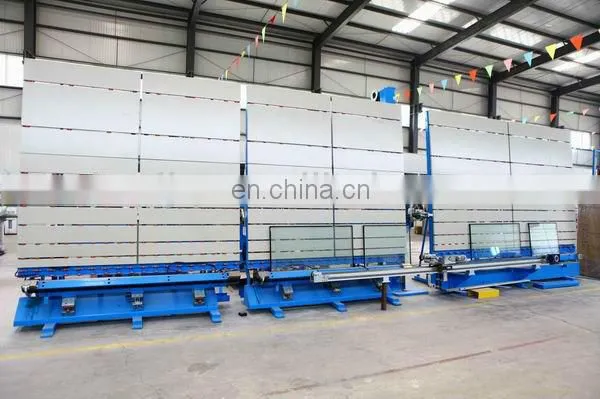

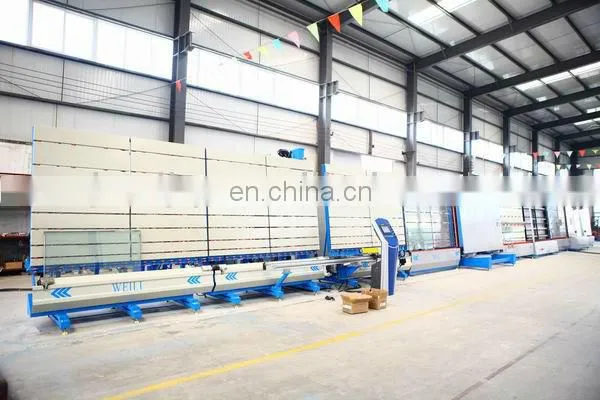

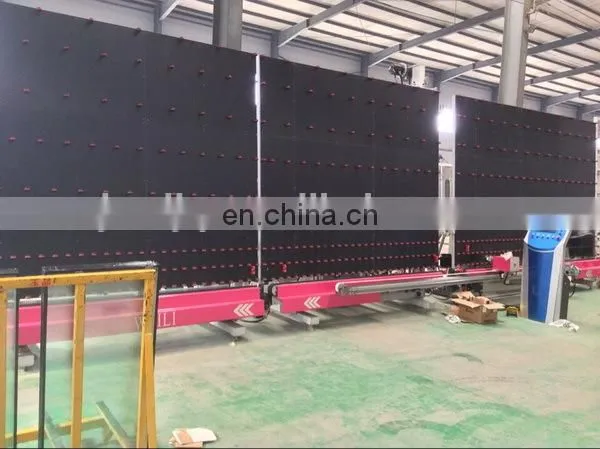

WL2500-31 Automatic Insulating Glass Sealant Sealing Machine
US$ 39,500 - 42,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WGM
Place of Origin:
Shandong, China
Certification:
BV & CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WL2500-31 Automatic Insulating Glass Sealant Sealing Production LineUS$ 60,000 - 81,639MOQ: 1 Set -
2500mm Edge Deletion Machine for GlassUS$ 31,667 - 34,229MOQ: 1 Set
-
Low-e Glass Edge Deletion Machine for GlassUS$ 31,667 - 34,229MOQ: 1 Set
-
Aluminum Spacer Bar Machine for Insulating Glass,double Glazing ,US$ 5,607 - 6,853MOQ: 1 Set
-
Silicone Sealant Glass MachineUS$ 61,672 - 75,376MOQ: 1 Set
Brand Name
WGM
Place of Origin
Shandong, China
Warranty
1 Year
Dimension(L*W*H)
8750*3000*3400mm
Production Capacity
10
Condition
New
Voltage
optional
Power(W)
optional
Machine Type
Insulating Glass Production Line
WL2500-31 Insulating Glass Sealant sealing Machine
Product Description
The main feature:
- Sealing glue continuously for various sizes of rectangle insulating glass, and the quality is good.
- The special “V”synchronous conveyor, ensures the transmition steadily and no pollution.
- Detecting the size and thickness of the insulating glass automaticlly,adjusting the position of “V”conveyor accuratly and guarantees the same working height.
- Aiming at system and beautifying angle of glass automatically, ensures the insulating glass more aesthetic.
- Electric proportional valve regulates the pressure and hydraulic system control the sealant volume accurately.

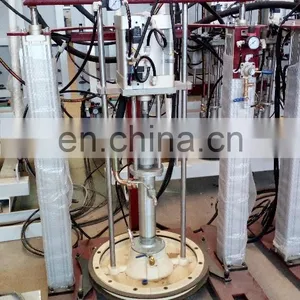

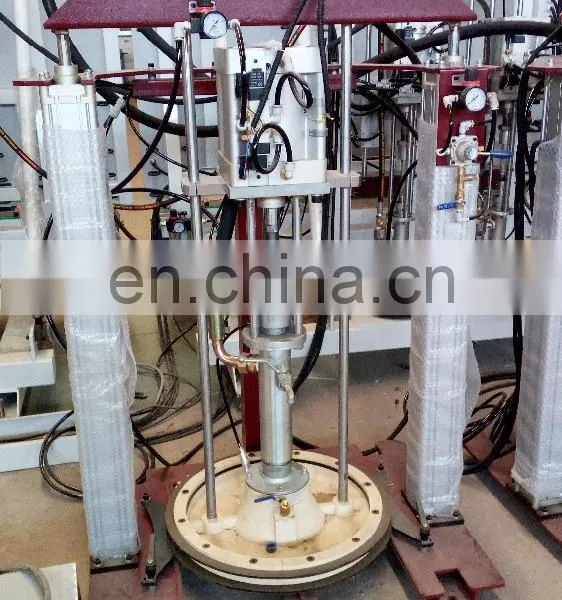

- Imported pneumatic motor (Hasco)glue supply system assures the stability of glue supplying.

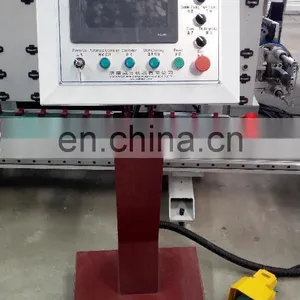

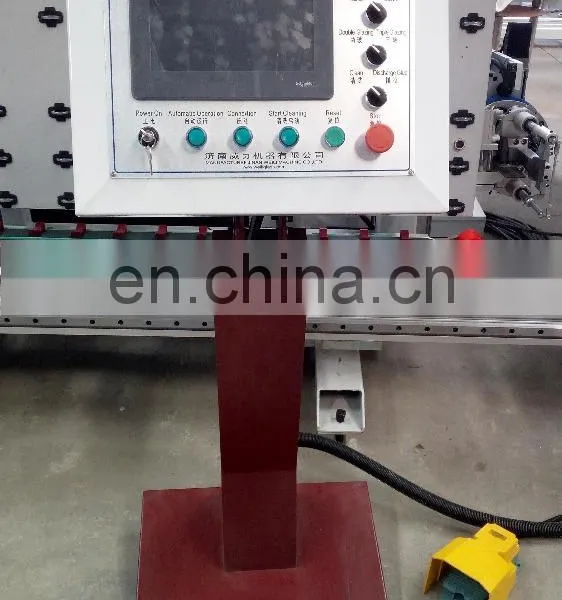

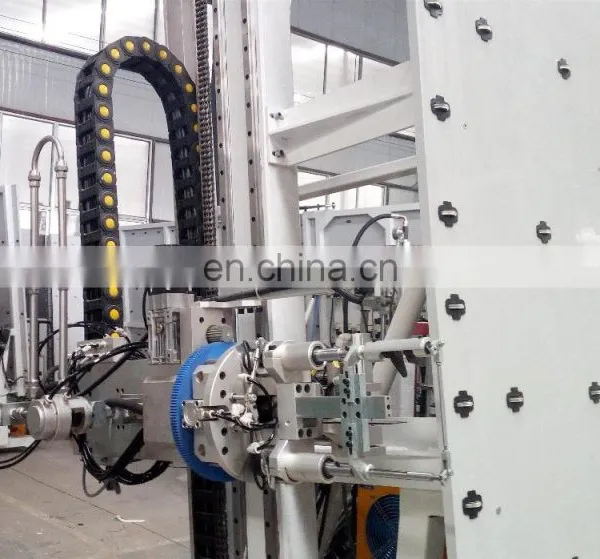

- Adopts the CNC nice axis servo control system and man-machine interface operating system.
- Processing double glass and triple glass.
- Two groups of glue (polysulfide sealant and silicone sealant) can be exchanged automatically (optional).
- Equipped with glue quantity warning system, remind to change glue bucket.
Main parameters :
The thickness of single glass |
3~12mm |
The tickness of insulating glass |
12~60mm |
The width of aluninum frame |
6~24mm |
Glue sealing depth |
2~15mm |
Glue sealing speed |
10~25m/min |
Transmition speed |
0~48m/min |
Working height |
520mm |
Dimension (length*width*weight) |
8750*4000*3400mm |
Company Information

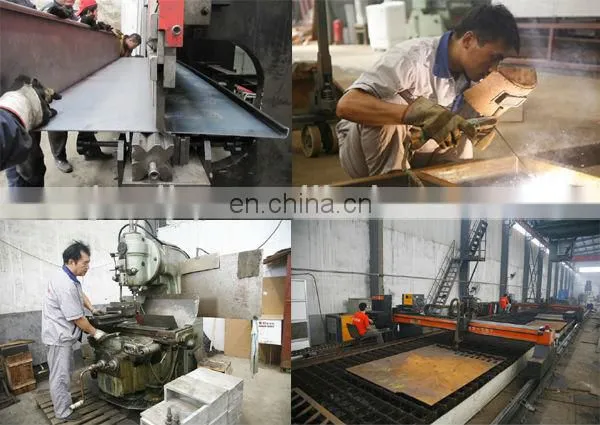

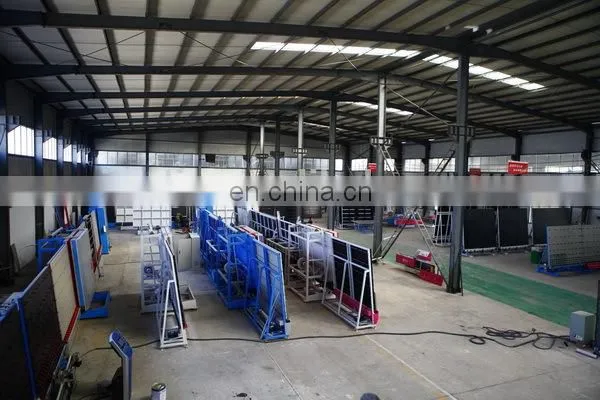

Machine frame making process:
Weili freindly customers:
Packaging & Shipping
Our Services
1. One year warranty service and all life maintenance.
2. Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.
3. 24 Service and support remote control.
