Full Automatic Glass Drilling Machine FDZ850

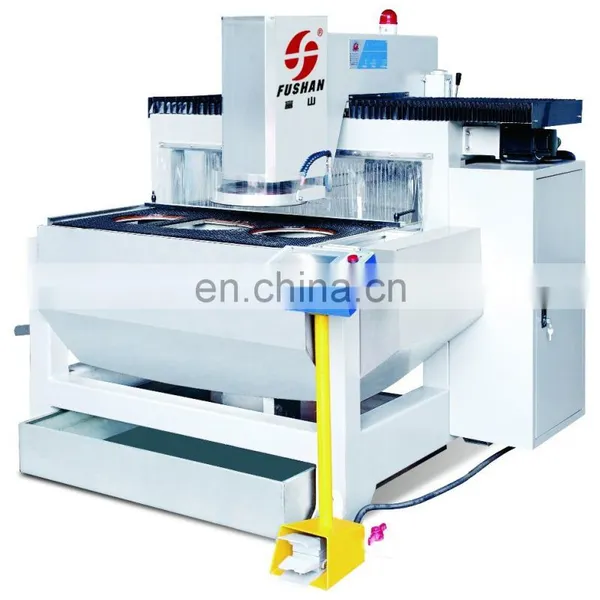

Full Automatic Glass Drilling Machine FDZ850 thumbnail-1

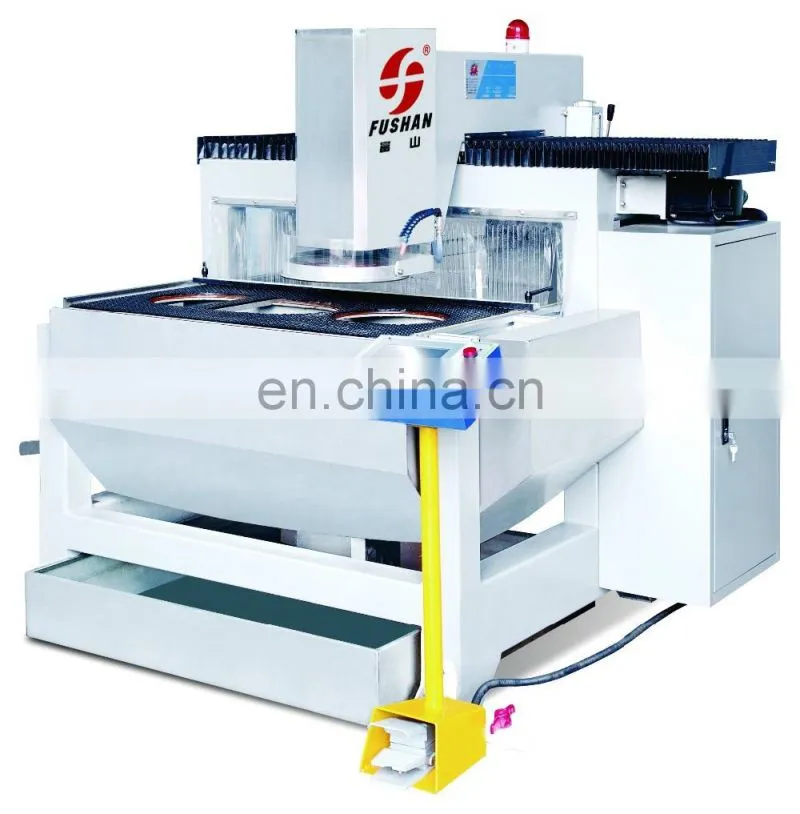

Full Automatic Glass Drilling Machine FDZ850 photo-1
US$ 10,500 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
FUSHAN
Place of Origin:
Guangdong, China
Model Number:
FDZ850
Contact Supplier Request Quote Chat Now
Shandong Glass Sandblasting Machine Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiaolan port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FUSHAN
Place of Origin Guangdong, China
Model Number FDZ850
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Weight 980 kg
Dimension(L*W*H) 1800*1450*1680 mm
Voltage Customer's Requirement, 380v/50HZ(as Customers' Request )
Condition New
Power(W) 18.5 kw
CNC or Not CNC
Drilling Speed 900 - 3000 r/min
Product Description

Product Application

The machine is reasonable structural design, advanced technology, operation and easy adjustment, stable and reliable operation. It is precision and efficiency.

This machine adopts the automatic operation (PLC program control), process are cylinder pressure workpiece, CNC cutting tool (up and down drill can be set the drilling depth and speed), has the one-time in porous and a variety of different diameter processing, chamfer function. In order to adapt to the complex capable of production process, this machine has unique design of position setting. It can be set many positions.

This machine is suitable for intensive, standardized, large quantities of technology require the efficient production of high-porous work piece.

No.
Name
Parameter
1
Diameter of holes
4 - 250 mm
2
Drilling thickness
3 - 25 mm
3
Maximum size of workpiece
1000 x 600 mm
4
Drilling depth
850 mm
5
Total spindles
2 pcs
6
Rotation speed of spindles
900 - 3000 r/min
7
Drilling motor power
2 - 1.5 kw
8
X-axis
600 w
9
Y-axis
/
10
z-axis motor power
2 - 13 n.m
11
Water pump
1 - 450 w
12
Total power
5 kw
13
Pressure
0.5 - 0.6 Mpa
14
Weight
980 kg
15
Overall size
1800x1450x1680 mm

Main Features

1) CNC with PLC for full automatic control

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Maximum drilling hole reach 250 mm.
