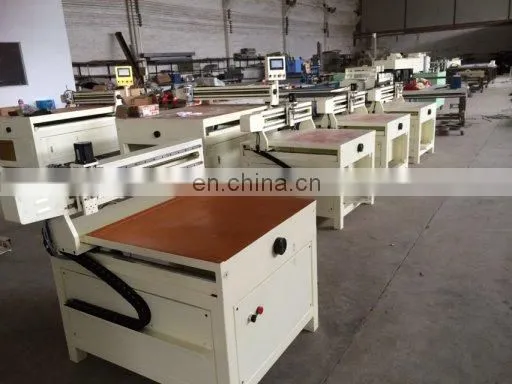

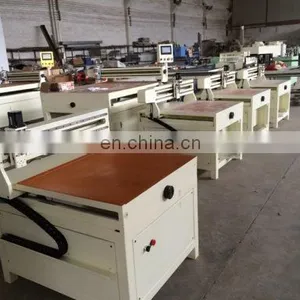

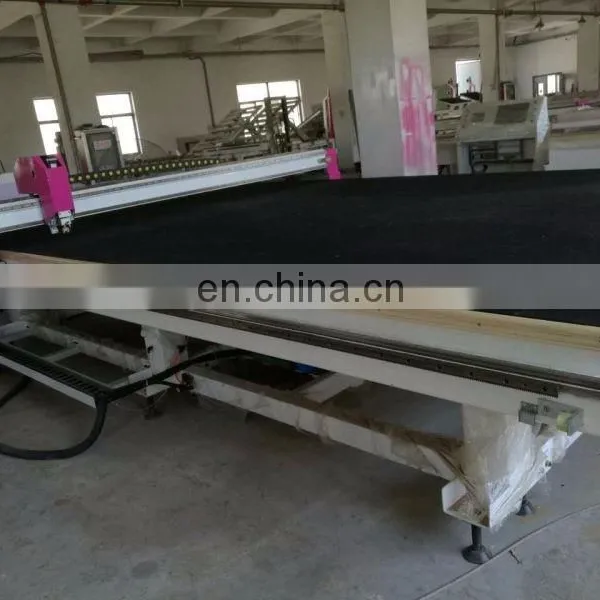

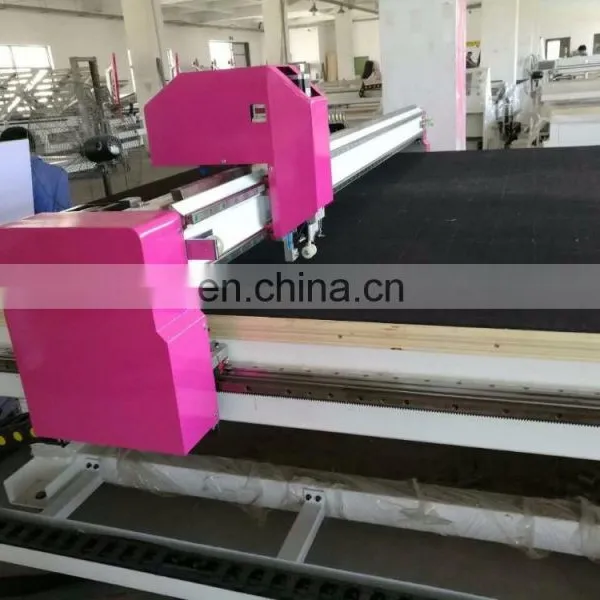

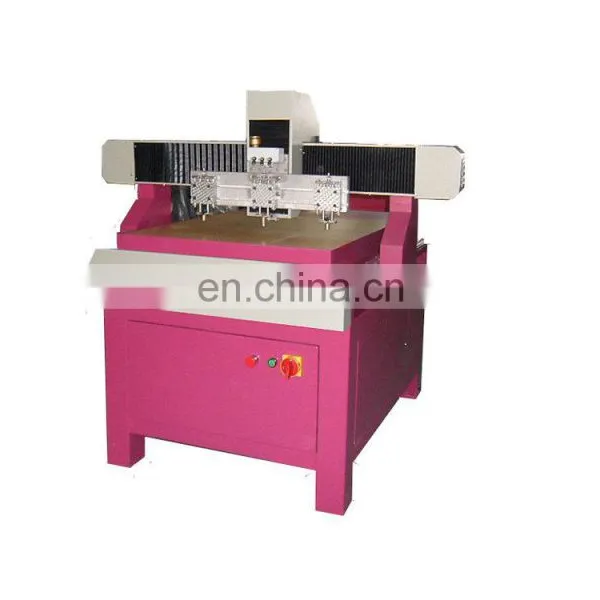

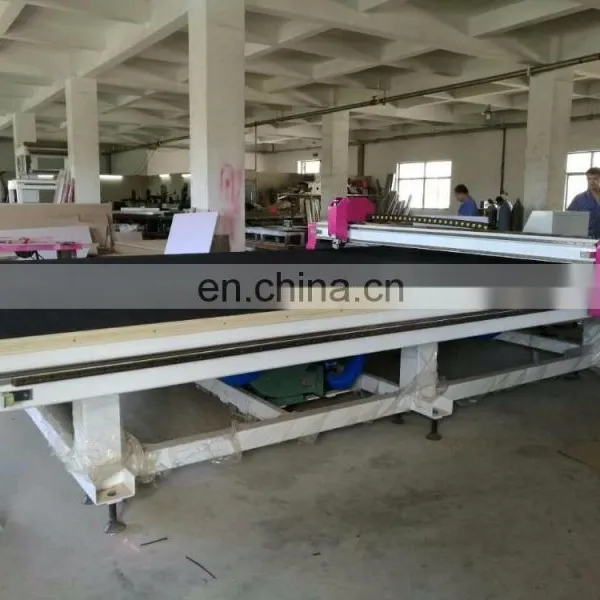

Mini CNC full automatic glass cutting machine
Introduction:
This machine can cut glass with high accuracy and high efficiency and can be easily operated.
Stepping motor, CNC control LCD
High quality axes insure the stability and accuracy.
The ventilation system can move and fix the glass on the cutting table.
Technical date:
Power supply: 220V/60HZ 3 Phases or customised
Power: 1.9KW
Work table size: 1200x1500mm
Max. glass size: 1150x1450mm
Min.glass size: 20x20mm
Glass thickness: 2-12mm
Cutting parallelism: ≤±0.10mm/m
Cutting the diagonal: ≤±0.25mm/m
Cutting speed: 0-18m/min(adjustable)
Machine size: 1700x2000x1500mm
Weight (about): 600kgs

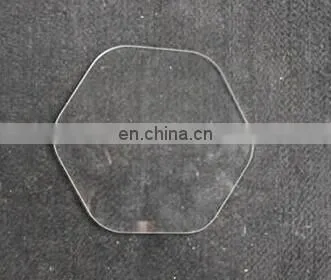

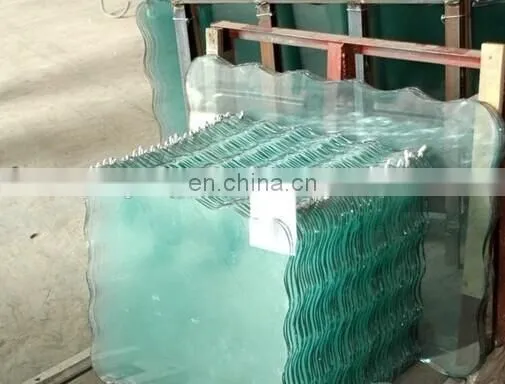

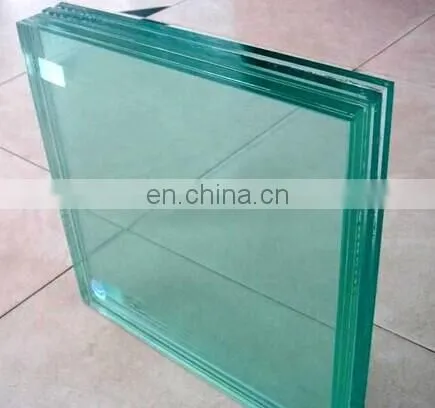

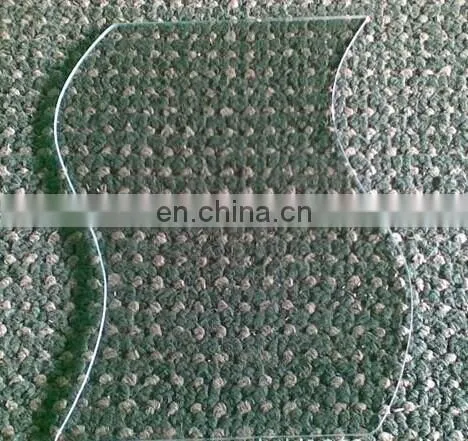

End products :
Above is the normally used size, also we can make specially according to your requirement.
4. Remarks
Pkg: Seaworthy packing or customized
Terms: FOB/CIF/CFR/EXW
From Qingdao, China To_______,
Delivery Time: During 30 Days After We Receive Your First Payment
Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and
The rest 70% is effected while delivering the goods.
5.Trademark: SUNNY
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms.Sailing He
Mobile: +86 18005318120 (whatsapp)
Skype: judy.he74
TM: cn209682722
