Semi-Automatic Laminated glass cutter:
Machine description
Semi-automatic single bridge laminated glass cutting machine cutting table with high efficiency and accuracy of the advantages of accurate. Suitable for large plate glass to cut into small pieces. Gas
floating mesa, with glass turn table, glass are free to promote and rotation. Pull on the grid to the size
of the cutting position, and promote the glass near the gate position, on the foot switch, stepping motor
drive the double beam (and) run automatically cutting, cutting after completion of the pneumatic bit automatic position.
Working Range:
Suitable for laminated glass, electric glass, building curtain wall glass deep processing of homework.
Basic parameters:
Cutting maximum size: 3660 * 2440 (mm) (special specifications can be customized according to customer needs)
Cutting minimum size: 200 * 200 (mm) (special specifications can be customized according to customer needs)
Work surface: 3800 * 2600 (mm)
Cutting thickness: 2-19 mm
Operator: 1-2 people
Cutting efficiency: 1-2 large/minutes
Cutting parallel degree: + / - 0.5 mm or less
Diagonal: + / - 0.8 mm or less
Fan power: 3 kw
Motor power: 1.5 kw
Overall size: 4600*3200*1250mm
Packing size: 4600*1650*1800
Weight(about): 800kgs

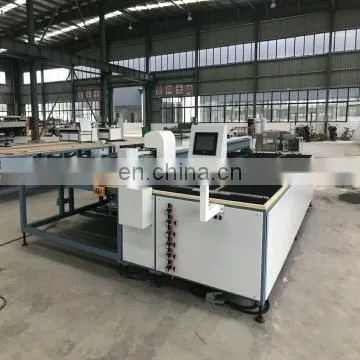

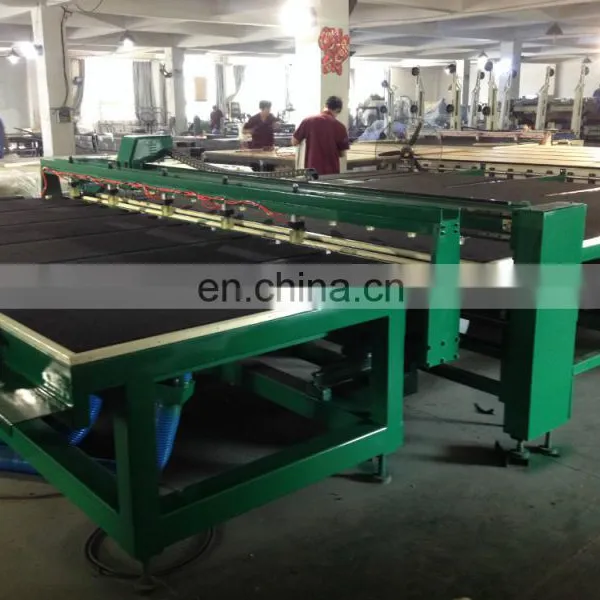

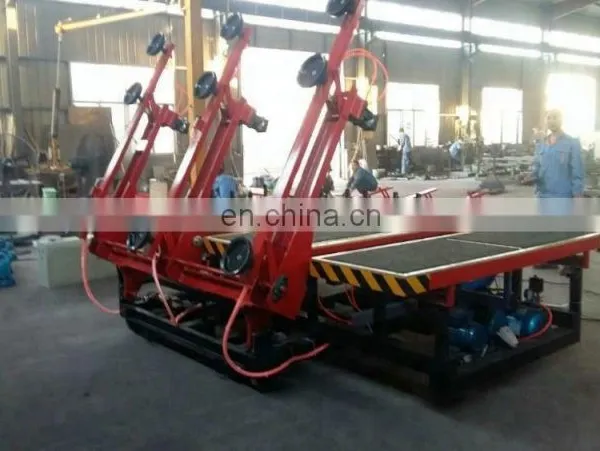

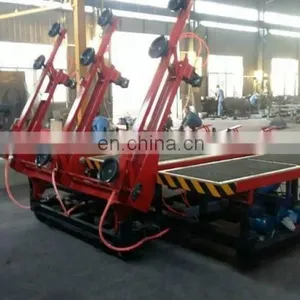

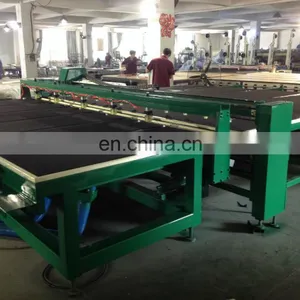

Real Photos:
Trademark: CNSUNNY
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
