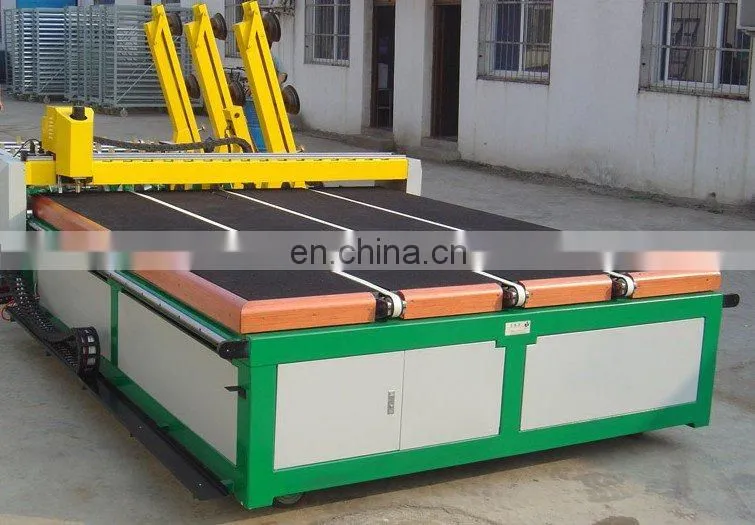

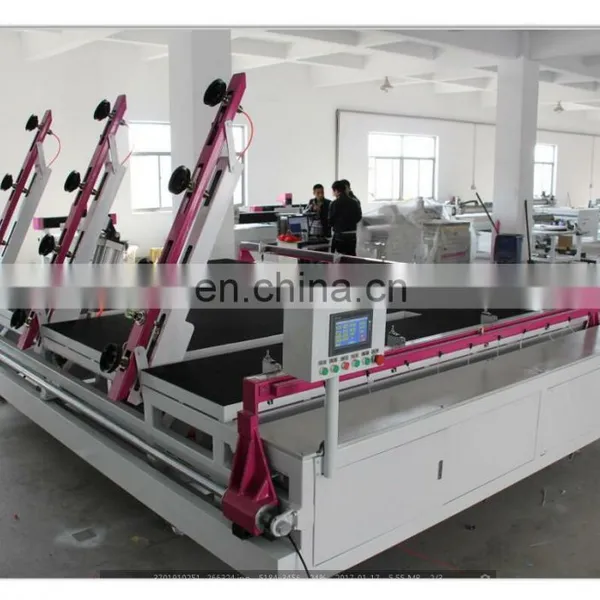

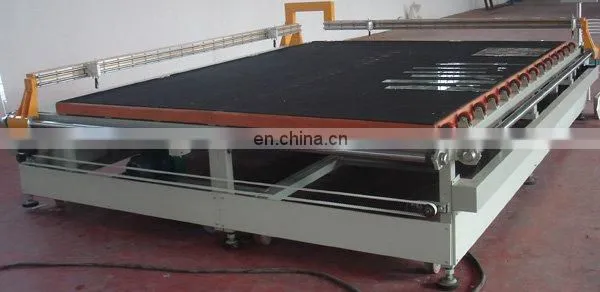

Automatic glass cutting machine float glass automatic glass cutting machine
Our factory have two kinds, Semi-automatic glass cutting machine and Full automatic CNC glass cutting machine
1. Semiautomatic Glass cutting machine
Technical Datas:
Max.glass Cutting Size (mm) : 3600*2440mm
Min.glass Cutting Size (mm) : 20*20mm
Cutting Accuracy (mm/m) : ≤ ±0.15
Glass Cutting Thickness(mm): 2-19
Voltage (V) :220V/50Hz
verall Dimension (LWH) (mm) :4160x3350x1450mm
2. Configuration
Electrical Parts: Schneider made in France
(Such as contactors, overtemperature reply, etc)
Stepping Motor and Drivers: made in China
High-speed Linear Guide: made in Taiwan
Fan: made in China
Cutter Box: made in China (The pressure of cutter box is adjustable
Tough Screen: Made in Taiwan.
2. Full Automatic CNC glass cutting machine
Technique data and Instruction:
Max.glass Cutting Size (mm): 3600*2440mm
Max.glass Cutting Speed (m/min):0-120 (adjustable)
Cutting Accuracy (mm/m) :≤ ±0.15
Glass Cutting Thickness(mm):2~19
Voltage (V):220V/380V (Three Phases)
Dimension (LWH) (mm): 4700x3100x900mm
Weight: 2600Kg
Power: 9Kw
Mechanical
Board: Imported waterproof and fireproof board (planes:≤0.20mm/m)
Rack Bar/Guide way: made in Japan
Transmission Tape/Roller: Beriberi made in Italy
Cutter Wheel/ Holder: made in Taiwan
Table-board: Imported Felt (back) made in Korea
Cutter Saddle: Pneumatic and Imported Spring used together (to reach the best cutting effect)
Conveyor System: Auto-induction conveyor device (Three synchronous belt automatic transmission and two proximity switch to make sure it can reach automatic induction and automatic transmission to save labor power)
PC Control and Microsoft Windows Interface
Motor: YASKAWA made in Japan; with American control card
Frequency Converter: YASKAWA made in Japan
Variable-frequency Motor: YASKAWA made in Japan
Software:The specialized cutting software (used under windows interface), with many kinds of cutting gallery (easy for drawing and operation), work together with AUTO CAD.
Contact Person: Lucy
whatsapp and TEL: 0086 15169042082
Please kindly contact me if you have any request, we will try our best to satisfy your request. Thanks.
