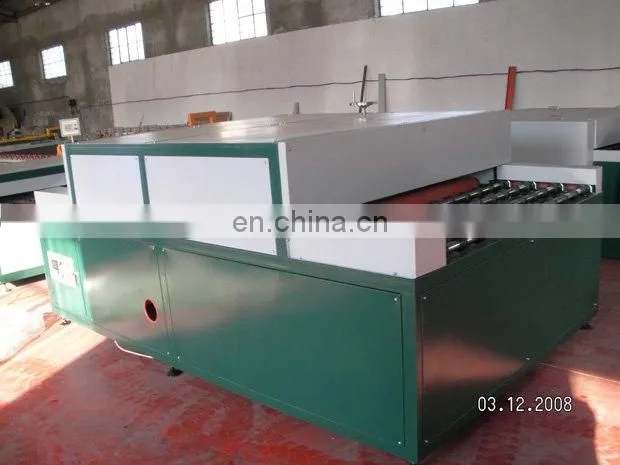

Glass Washing Machine /Horizontal Glass Washing Machine
US$ 3,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SUNNY
Place of Origin:
Shandong, China
Model Number:
BX1600
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Laminating Glass Washer.flat Glass Washer,tempered Glass Washing MachineUS$ 1 - 5,000MOQ: 1 Set -
LOW-E Glass Washing Machine for Insulating Glass ,Washing Machine for Insulating GlassUS$ 3,500 - 14,500MOQ: 1 Set
-
Insulating Glass Machine,double Glazing Glass Production LineUS$ 1 - 30,000MOQ: 1 Set
-
Vertical Glass Washing and Drying MachineUS$ 1 - 20,000MOQ: 1 Set
-
Horizontal Double Glazing Washer & Drying MachineUS$ 2,000 - 3,500MOQ: 1 Set
Brand Name
SUNNY
Place of Origin
Shandong, China
Model Number
BX1600
Use
Other
Certification
CE
Material
Metal / Coil
Industry Used
Pharmaceutical Cleaning
Cleaning Type
High Pressure Cleaner
Cleaning Process
Hot Water Cleaning
BX Series Horizontal Glass Washing and Drying Machine, Glass Washing Machine
1. Features and Technical Data
It is used to wash 3-12mm and 35mm-thinner glass.With the horizontal struture,it is stable to transmit. Stable performance woth DELIXI contactor,push-button switches and pilot light. It adopts frequency stepless speed and is easy to operate as the button are concentrated on the operation table.Tht height of washing tank can be changed to meet the requirement of any glass thickness. Three groups of brushes assure the washing quanlity while two pairs of air knives assure the drying. Inspecting light is equipped to examine the glass quanlity.
Power voltage: 380VAC
Frequency rate: 50Hz
Power rate: 9.7Kw
Carry speed: 1-5m/min
Thickness of washing glass: 3-35mm
2. Normally used size we can make
Model |
Max. Glass Size |
Min.Glass Size |
Glass Thickness |
Power |
Weight |
BX1600 |
1600*3000mm |
300*400mm |
3-25mm |
9.7Kw |
2200KKg |
BX1800 |
1800*2440mm |
300*400mm |
3-25mm |
20Kw |
3000KKg |
BX2000 |
2000*2440mm |
300*400mm |
3-25mm |
22Kw |
3300KKg |
BX2500 |
2500*3000mm |
300*400mm |
3-25mm |
29Kw |
3800KKg |
Hot Press Machine for insulating glass
Rubber Strip Application Table (JZT1600)
3. Remarks
Pkg: Each PC In Wooden Cases
Terms: Freight On Board (FOBQingdao)
From Qingdao, China To_______,
Delivery Time: During 30 Days After We Receive Your First Payment
Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and the rest 70% is effected while delivering the goods
Our Trademark: SUNNY
4. Conact Information:
Company Name: JINAN SUNNY MACHINERY CO.,LTD.
ADD.: zone 2,Yaoshan Industrial park,tianqiao Area,Jinan,Shandong,China
Contact person:Miss awen
Fax:86-0531-66683398
mob:86-15063343341
